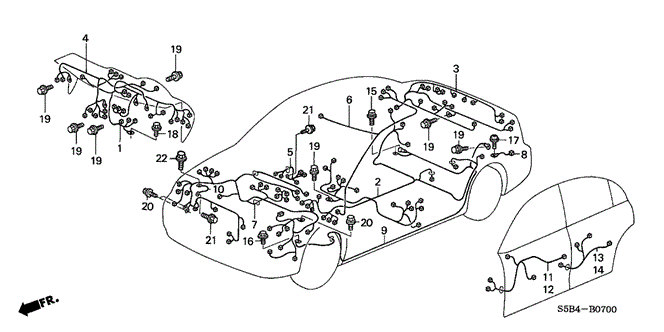

WIRE HARNESS, INSTRUMENT in ELECTRICAL / EXHAUST / HEATER / FUEL/WIRE HARNESS for 2003 Honda CIVIC HYBRID

WIRE HARNESS, INSTRUMENT in ELECTRICAL / EXHAUST / HEATER / FUEL/WIRE HARNESS for 2003 Honda CIVIC HYBRID #1
21
  • BOLT, GROUND (6X12) - $0.30
14
  • WIRE HARNESS, L. RR. DOOR - $16.42
17
  • SCREW-WASHER, ET (6X16) - $1.48
22
  • BOLT, FLANGE (6X12) - $0.72
13
  • WIRE HARNESS, R. RR. DOOR - $16.42
21
  • BOLT, GROUND (6X12) - $0.30
8
  • WIRE, DEFROSTER GROUND - $4.67
19
  • BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) - $3.43
18
  • BOLT, TORX GROUND (6X20) - $2.60
16
  • BOLT (6X15) - $2.62
4
  • WIRE HARNESS, INSTRUMENT - $675.24
  • WIRE HARNESS, INSTRUMENT - $642.35
  • WIRE HARNESS, INSTRUMENT - $800.92
  • WIRE HARNESS, INSTRUMENT - $761.89
12
  • WIRE HARNESS, PASSENGER DOOR - $40.31
2
  • WIRE HARNESS, FLOOR - $416.17
  • WIRE HARNESS, FLOOR - $439.68
  • WIRE HARNESS, FLOOR - $518.08
  • WIRE HARNESS, FLOOR - $486.80
19
  • BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) - $3.43
19
  • BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) - $3.43
10
  • CABLE, SUB-GROUND - $5.50
15
  • BOLT, FLANGE (6X12) - $1.27
  • BOLT, FLANGE (6X12) - $1.10
9
  • CABLE ASSY., DOWNVERTER - $87.44
19
  • BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) - $3.43
19
  • BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) - $3.43
7
  • WIRE HARNESS, ENGINE ROOM - $549.61
  • WIRE HARNESS, ENGINE ROOM - $478.96
  • WIRE HARNESS, ENGINE ROOM - $439.68
6
  • WIRE ASSY., INTERIOR - $9.84
  • WIRE, INTERIOR & SUNROOF - $42.68
19
  • BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) - $3.43
20
  • BOLT, GROUND (6X16) - $3.43
19
  • BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN) - $3.43
5
  • SUB-WIRE, EPS - $58.70
1
  • SUB-WIRE, COMBINATION - $117.85
  • SUB-WIRE, COMBINATION - $145.64
20
  • BOLT, GROUND (6X16) - $3.43
11
  • WIRE HARNESS, DRIVER DOOR - $32.33
3
  • WIRE HARNESS, RR. - $122.88
No. Part # Part # / Description Qty Req. List Price Price
1 32103-S5A-A01 32103-S5A-A01 / SUB-WIRE, COMBINATION

1 $163.68 $117.85
1 32103-S5A-A02 32103-S5A-A02 / SUB-WIRE, COMBINATION

1 $202.28 $145.64
2 32107-S5B-A21 32107-S5B-A21 / WIRE HARNESS, FLOOR

1 $578.02 $416.17
2 32107-S5B-A22 32107-S5B-A22 / WIRE HARNESS, FLOOR

1 $610.67 $439.68
2 32107-S5B-L20 32107-S5B-L20 / WIRE HARNESS, FLOOR

0 $719.55 $518.08
2 32107-S5B-L10 32107-S5B-L10 / WIRE HARNESS, FLOOR

1 $676.12 $486.80
3 32108-S5B-920 32108-S5B-920 / WIRE HARNESS, RR.

1 $170.67 $122.88
4 32117-S5B-A31 32117-S5B-A31 / WIRE HARNESS, INSTRUMENT

1 $937.83 $675.24
4 32117-S5B-A32 32117-S5B-A32 / WIRE HARNESS, INSTRUMENT

1 $892.15 $642.35
4 32117-S5B-L10 32117-S5B-L10 / WIRE HARNESS, INSTRUMENT

1 $1,112.38 $800.92
4 32117-S5B-L20 32117-S5B-L20 / WIRE HARNESS, INSTRUMENT

0 $1,058.18 $761.89
5 32125-S5B-A00 32125-S5B-A00 / SUB-WIRE, EPS

1 $81.53 $58.70
6 32155-S5A-A10 32155-S5A-A10 / WIRE ASSY., INTERIOR

1 $13.67 $9.84
6 32155-S5A-L00 32155-S5A-L00 / WIRE, INTERIOR & SUNROOF

0 $59.28 $42.68
7 32200-S5B-A80 32200-S5B-A80 / WIRE HARNESS, ENGINE ROOM

1 $763.35 $549.61
7 32200-S5B-L11 32200-S5B-L11 / WIRE HARNESS, ENGINE ROOM

1 $665.22 $478.96
7 32200-S5B-L10 32200-S5B-L10 / WIRE HARNESS, ENGINE ROOM

1 $610.67 $439.68
8 32202-S5A-900 32202-S5A-900 / WIRE, DEFROSTER GROUND

1 $6.48 $4.67
9 32421-S5B-000 32421-S5B-000 / CABLE ASSY., DOWNVERTER

1 $121.45 $87.44
10 32610-S5B-000 32610-S5B-000 / CABLE, SUB-GROUND

1 $7.63 $5.50
11 32751-S5A-A03 32751-S5A-A03 / WIRE HARNESS, DRIVER DOOR

1 $44.90 $32.33
12 32752-S5B-A00 32752-S5B-A00 / WIRE HARNESS, PASSENGER DOOR

1 $55.98 $40.31
13 32753-S5A-000 32753-S5A-000 / WIRE HARNESS, R. RR. DOOR

1 $22.80 $16.42
14 32754-S5A-000 32754-S5A-000 / WIRE HARNESS, L. RR. DOOR

1 $22.80 $16.42
15 90007-P8X-000 90007-P8X-000 / BOLT, FLANGE (6X12)

2 $1.77 $1.27
15 90120-PZA-000 90120-PZA-000 / BOLT, FLANGE (6X12)

2 $1.53 $1.10
16 90114-SM4-900 90114-SM4-900 / BOLT (6X15)

1 $3.63 $2.62
17 90131-S30-003 90131-S30-003 / SCREW-WASHER, ET (6X16)

1 $2.05 $1.48
18 90137-S84-A01 90137-S84-A01 / BOLT, TORX GROUND (6X20)

1 $3.62 $2.60
19 90148-SE0-003 90148-SE0-003 / BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)

8 $4.77 $3.43
20 90149-SE0-003 90149-SE0-003 / BOLT, GROUND (6X16)

2 $4.77 $3.43
21 90153-SE0-003 90153-SE0-003 / BOLT, GROUND (6X12)

2 $0.42 $0.30
22 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
