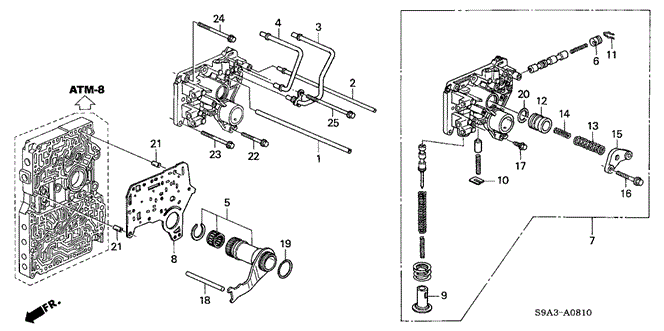

BODY ASSY., REGULATOR in TRANSMISSION - AUTOMATIC/AT REGULATOR BODY for 2002 Honda CR-V

BODY ASSY., REGULATOR in TRANSMISSION - AUTOMATIC/AT REGULATOR BODY for 2002 Honda CR-V #1
14
  • SPRING B, LOW ACCUMULATOR - $1.66
11
  • CLIP, CAP - $1.86
17
  • BOLT, STOPPER (6MM) - $2.22
25
  • BOLT, FLANGE (6X80) - $1.01
18
  • PIN, DOWEL (8X80) - $2.80
12
  • PISTON, LOW ACCUMULATOR - $6.97
23
  • BOLT, FLANGE (6X55) - $0.86
8
  • PLATE, REGULATOR SEPARATING - $6.46
9
  • CAP, REGULATOR SPRING - $22.44
6
  • CAP (14MM) - $3.90
16
  • BOLT, FLANGE (6X30) - $1.88
19
  • O-RING (31X1.7) (ARAI) - $1.81
10
  • SEAT, VALVE SPRING - $1.97
22
  • BOLT, FLANGE (6X40) - $0.74
2
  • PIPE (6X201) - $4.57
21
  • PIN, DOWEL (8X14) - $0.84
7
  • BODY ASSY., REGULATOR - $167.04
20
  • O-RING (21.2X2.4) (ARAI) - $1.61
21
  • PIN, DOWEL (8X14) - $0.84
15
  • COVER, REGULATOR ACCUMULATOR - $8.14
4
  • PIPE SET, JOINT - $24.72
24
  • BOLT, FLANGE (6X65) - $0.94
1
  • PIPE (8X198) - $5.90
13
  • SPRING A, LOW ACCUMULATOR - $2.76
5
  • SHAFT ASSY., STATOR - $62.02
3
  • PIPE SET, JOINT - $24.72
No. Part # Part # / Description Qty Req. List Price Price
1 22741-P7Z-000 22741-P7Z-000 / PIPE (8X198)

1 $8.20 $5.90
2 22753-PRP-000 22753-PRP-000 / PIPE (6X201)

1 $6.35 $4.57
4 22770-RCL-305 22770-RCL-305 / PIPE SET, JOINT

1 $34.33 $24.72
5 25155-PRP-000 25155-PRP-000 / SHAFT ASSY., STATOR

1 $86.13 $62.02
6 27132-P6H-000 27132-P6H-000 / CAP (14MM)

1 $5.42 $3.90
7 27200-PPW-000 27200-PPW-000 / BODY ASSY., REGULATOR

1 $232.00 $167.04
8 27212-PRP-020 27212-PRP-020 / PLATE, REGULATOR SEPARATING

1 $8.97 $6.46
9 27246-PN6-800 27246-PN6-800 / CAP, REGULATOR SPRING

1 $31.17 $22.44
10 27263-PX3-000 27263-PX3-000 / SEAT, VALVE SPRING

1 $2.73 $1.97
11 27524-P6H-000 27524-P6H-000 / CLIP, CAP

1 $2.58 $1.86
12 27561-PRP-000 27561-PRP-000 / PISTON, LOW ACCUMULATOR

1 $9.68 $6.97
13 27562-PRP-000 27562-PRP-000 / SPRING A, LOW ACCUMULATOR

1 $3.83 $2.76
14 27564-PRP-000 27564-PRP-000 / SPRING B, LOW ACCUMULATOR

1 $2.30 $1.66
15 27591-PRH-000 27591-PRH-000 / COVER, REGULATOR ACCUMULATOR

1 $11.30 $8.14
16 90001-PRP-000 90001-PRP-000 / BOLT, FLANGE (6X30)

2 $2.62 $1.88
17 90089-PK4-000 90089-PK4-000 / BOLT, STOPPER (6MM)

1 $3.08 $2.22
18 90701-PK4-000 90701-PK4-000 / PIN, DOWEL (8X80)

1 $3.88 $2.80
19 91316-PF4-003 91316-PF4-003 / O-RING (31X1.7) (ARAI)

1 $2.52 $1.81
20 91331-PC9-003 91331-PC9-003 / O-RING (21.2X2.4) (ARAI)

1 $2.23 $1.61
21 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
22 95701-06040-08 95701-06040-08 / BOLT, FLANGE (6X40)

1 $1.03 $0.74
23 95701-06055-08 95701-06055-08 / BOLT, FLANGE (6X55)

4 $1.20 $0.86
24 95701-06065-08 95701-06065-08 / BOLT, FLANGE (6X65)

3 $1.30 $0.94
25 95701-06080-08 95701-06080-08 / BOLT, FLANGE (6X80)

1 $1.40 $1.01
