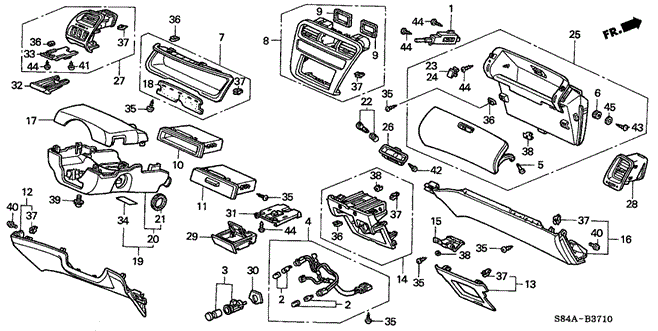

LID & BOX, GLOVE *NH284L* (LIGHT QUARTZ GRAY) in INTERIOR / BUMPER/INSTRUMENT PANEL GARNISH for 2002 Honda ACCORD SEDAN

LID & BOX, GLOVE *NH284L* (LIGHT QUARTZ GRAY) in INTERIOR / BUMPER/INSTRUMENT PANEL GARNISH for 2002 Honda ACCORD SEDAN #1
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
  • SCREW, TAPPING (4X16) (ACR) - $0.36
16
  • COVER ASSY., INSTRUMENT PASSENGER (LOWER) *YR164L* (MEDIUM TAUPE) - $59.46
  • COVER ASSY., INSTRUMENT PASSENGER (LOWER) *NH283L* (QUARTZ GRAY) - $59.46
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
  • SCREW, TAPPING (4X16) (ACR) - $0.36
38
  • GROMMET, SCREW (4MM) - $1.72
21
  • RING, COLUMN COVER - $6.88
22
  • CYLINDER, GLOVE BOX - $44.26
33
  • HOLDER ASSY., COIN - $5.59
13
  • COVER ASSY., INSTRUMENT CENTER(LOWER) *YR164L* (MEDIUM TAUPE) - $40.61
  • COVER ASSY., INSTRUMENT CENTER(LOWER) *NH283L* (QUARTZ GRAY) - $40.61
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
  • SCREW, TAPPING (4X16) (ACR) - $0.36
24
  • CAP, L. GLOVE BOX *NH1L* (BLACK) - $1.48
5
  • STOPPER, GLOVE BOX LID - $2.27
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
  • SCREW, TAPPING (4X16) (ACR) - $0.36
37
  • CLIP, SNAP FITTING - $0.32
27
  • OUTLET ASSY., DRIVER *YR169L* (MILD BEIGE) - $35.44
  • OUTLET ASSY., DRIVER *NH284L* (LIGHT QUARTZ GRAY) - $35.44
40
  • SCREW-WASHER (5X12) - $0.42
8
  • PANEL ASSY., INSTRUMENT CENTER*NH167L* (GRAPHITE BLACK) - $108.46
18
  • BLIND, COLUMN - $3.90
36
  • NUT, SPRING (4MM) - $2.59
32
  • POCKET, COIN *YR169L* (MILD BEIGE) - $13.50
  • POCKET, COIN *NH284L* (LIGHT QUARTZ GRAY) - $13.50
37
  • CLIP, SNAP FITTING - $0.32
37
  • CLIP, SNAP FITTING - $0.32
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
  • SCREW, TAPPING (4X16) (ACR) - $0.36
44
  • SCREW, TAPPING (4X12) - $0.40
1
  • LAMP ASSY., GLOVE BOX - $17.28
36
  • NUT, SPRING (4MM) - $2.59
34
  • LABEL, CONNECTOR LOCATION (OBD-2) - $3.64
6
  • RUBBER, GLOVE BOX STOPPER - $3.53
44
  • SCREW, TAPPING (4X12) - $0.40
45
  • WASHER, PLAIN (10MM) - $0.41
7
  • PANEL ASSY., METER *NH167L* (GRAPHITE BLACK) - $60.30
23
  • CAP, R. GLOVE BOX *NH1L* (BLACK) - $1.48
37
  • CLIP, SNAP FITTING - $0.32
38
  • GROMMET, SCREW (4MM) - $1.72
36
  • NUT, SPRING (4MM) - $2.59
37
  • CLIP, SNAP FITTING - $0.32
37
  • CLIP, SNAP FITTING - $0.32
28
  • OUTLET ASSY., PASSENGER *YR169L* (MILD BEIGE) - $74.87
  • OUTLET ASSY., PASSENGER *NH284L* (LIGHT QUARTZ GRAY) - $74.87
9
  • SEAL - $0.49
26
  • LOCK ASSY., GLOVE BOX *YR169L* (MILD BEIGE) - $21.35
  • LOCK ASSY., GLOVE BOX *NH284L* (LIGHT QUARTZ GRAY) - $21.35
36
  • NUT, SPRING (4MM) - $2.59
44
  • SCREW, TAPPING (4X12) - $0.40
44
  • SCREW, TAPPING (4X12) - $0.40
17
  • COVER, COLUMN (UPPER) *YR164L* (MEDIUM TAUPE) - $44.68
  • COVER, COLUMN (UPPER) *NH283L* (QUARTZ GRAY) - $44.68
42
  • SCREW, TAPPING (4X16) - $0.40
19
  • COVER, COLUMN (LOWER) *YR164L* (MEDIUM TAUPE) - $72.41
  • COVER, COLUMN (LOWER) *NH283L* (QUARTZ GRAY) - $72.41
37
  • CLIP, SNAP FITTING - $0.32
38
  • GROMMET, SCREW (4MM) - $1.72
39
  • SCREW-WASHER (5X12) - $0.49
12
  • COVER ASSY., INSTRUMENT DRIVER(LOWER) *YR164L* (MEDIUM TAUPE) - $95.51
  • COVER ASSY., INSTRUMENT DRIVER(LOWER) *NH283L* (QUARTZ GRAY) - $95.51
25
  • LID & BOX, GLOVE *YR169L* (MILD BEIGE) - $199.80
  • LID & BOX, GLOVE *NH284L* (LIGHT QUARTZ GRAY) - $199.80
40
  • SCREW-WASHER (5X12) - $0.42
43
  • SCREW, TAPPING (6X16) - $0.40
41
  • SCREW, TAPPING (4X10) - $0.40
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
  • SCREW, TAPPING (4X16) (ACR) - $0.36
44
  • SCREW, TAPPING (4X12) - $0.40
9
  • SEAL - $0.49
No. Part # Part # / Description Qty Req. List Price Price
1 34254-SL0-003 34254-SL0-003 / LAMP ASSY., GLOVE BOX

1 $24.00 $17.28
5 66418-SA5-000 66418-SA5-000 / STOPPER, GLOVE BOX LID

2 $3.15 $2.27
6 66417-SA0-000 66417-SA0-000 / RUBBER, GLOVE BOX STOPPER

2 $4.90 $3.53
7 77200-S84-A00ZA 77200-S84-A00ZA / PANEL ASSY., METER *NH167L* (GRAPHITE BLACK)

1 $83.75 $60.30
8 77250-S84-A11ZA 77250-S84-A11ZA / PANEL ASSY., INSTRUMENT CENTER*NH167L* (GRAPHITE BLACK)

1 $150.63 $108.46
9 77251-S84-A01 77251-S84-A01 / SEAL

2 $0.68 $0.49
12 77305-S84-A00ZC 77305-S84-A00ZC / COVER ASSY., INSTRUMENT DRIVER(LOWER) *YR164L* (MEDIUM TAUPE)

1 $132.65 $95.51
12 77305-S84-A00ZB 77305-S84-A00ZB / COVER ASSY., INSTRUMENT DRIVER(LOWER) *NH283L* (QUARTZ GRAY)

1 $132.65 $95.51
13 77310-S84-A00ZC 77310-S84-A00ZC / COVER ASSY., INSTRUMENT CENTER(LOWER) *YR164L* (MEDIUM TAUPE)

1 $56.40 $40.61
13 77310-S84-A00ZB 77310-S84-A00ZB / COVER ASSY., INSTRUMENT CENTER(LOWER) *NH283L* (QUARTZ GRAY)

1 $56.40 $40.61
16 77325-S84-A00ZC 77325-S84-A00ZC / COVER ASSY., INSTRUMENT PASSENGER (LOWER) *YR164L* (MEDIUM TAUPE)

1 $82.59 $59.46
16 77325-S84-A00ZB 77325-S84-A00ZB / COVER ASSY., INSTRUMENT PASSENGER (LOWER) *NH283L* (QUARTZ GRAY)

1 $82.59 $59.46
17 77350-S84-A01ZC 77350-S84-A01ZC / COVER, COLUMN (UPPER) *YR164L* (MEDIUM TAUPE)

1 $62.05 $44.68
17 77350-S84-A01ZB 77350-S84-A01ZB / COVER, COLUMN (UPPER) *NH283L* (QUARTZ GRAY)

1 $62.05 $44.68
18 77355-S84-A00 77355-S84-A00 / BLIND, COLUMN

1 $5.42 $3.90
19 77360-S84-A02ZC 77360-S84-A02ZC / COVER, COLUMN (LOWER) *YR164L* (MEDIUM TAUPE)

1 $100.56 $72.41
19 77360-S84-A02ZB 77360-S84-A02ZB / COVER, COLUMN (LOWER) *NH283L* (QUARTZ GRAY)

1 $100.56 $72.41
21 77371-SV4-000 77371-SV4-000 / RING, COLUMN COVER

1 $9.55 $6.88
22 77520-SL0-A01 77520-SL0-A01 / CYLINDER, GLOVE BOX

1 $61.47 $44.26
23 77520-S84-A01ZE 77520-S84-A01ZE / CAP, R. GLOVE BOX *NH1L* (BLACK)

1 $2.05 $1.48
24 77521-S84-A01ZE 77521-S84-A01ZE / CAP, L. GLOVE BOX *NH1L* (BLACK)

1 $2.05 $1.48
25 77530-S84-A01ZK 77530-S84-A01ZK / LID & BOX, GLOVE *YR169L* (MILD BEIGE)

1 $277.50 $199.80
25 77530-S84-A01ZJ 77530-S84-A01ZJ / LID & BOX, GLOVE *NH284L* (LIGHT QUARTZ GRAY)

1 $277.50 $199.80
26 77540-S84-A01ZC 77540-S84-A01ZC / LOCK ASSY., GLOVE BOX *YR169L* (MILD BEIGE)

1 $29.65 $21.35
26 77540-S84-A01ZB 77540-S84-A01ZB / LOCK ASSY., GLOVE BOX *NH284L* (LIGHT QUARTZ GRAY)

1 $29.65 $21.35
27 77620-S84-A01ZC 77620-S84-A01ZC / OUTLET ASSY., DRIVER *YR169L* (MILD BEIGE)

1 $49.21 $35.44
27 77620-S84-A01ZB 77620-S84-A01ZB / OUTLET ASSY., DRIVER *NH284L* (LIGHT QUARTZ GRAY)

1 $49.21 $35.44
28 77630-S84-A01ZC 77630-S84-A01ZC / OUTLET ASSY., PASSENGER *YR169L* (MILD BEIGE)

1 $103.98 $74.87
28 77630-S84-A01ZB 77630-S84-A01ZB / OUTLET ASSY., PASSENGER *NH284L* (LIGHT QUARTZ GRAY)

1 $103.98 $74.87
32 77750-S84-A01ZC 77750-S84-A01ZC / POCKET, COIN *YR169L* (MILD BEIGE)

1 $18.75 $13.50
32 77750-S84-A01ZB 77750-S84-A01ZB / POCKET, COIN *NH284L* (LIGHT QUARTZ GRAY)

1 $18.75 $13.50
33 77754-S84-A01 77754-S84-A01 / HOLDER ASSY., COIN

1 $7.77 $5.59
34 89001-S01-A00 89001-S01-A00 / LABEL, CONNECTOR LOCATION (OBD-2)

1 $5.05 $3.64
35 93913-14480 93913-14480 / SCREW, TAPPING (4X16) (PO)

0 $0.55 $0.40
35 90102-S84-A00 90102-S84-A00 / SCREW, TAPPING (4X16) (ACR)

0 $0.50 $0.36
36 90302-SA4-003 90302-SA4-003 / NUT, SPRING (4MM)

0 $3.60 $2.59
37 90666-S84-A01 90666-S84-A01 / CLIP, SNAP FITTING

0 $0.45 $0.32
38 91640-SM4-003 91640-SM4-003 / GROMMET, SCREW (4MM)

0 $2.38 $1.72
39 93891-05012-08 93891-05012-08 / SCREW-WASHER (5X12)

3 $0.68 $0.49
40 93894-05012-08 93894-05012-08 / SCREW-WASHER (5X12)

2 $0.58 $0.42
41 93903-24220 93903-24220 / SCREW, TAPPING (4X10)

2 $0.55 $0.40
42 93903-34480 93903-34480 / SCREW, TAPPING (4X16)

2 $0.55 $0.40
43 93903-36220 93903-36220 / SCREW, TAPPING (6X16)

2 $0.55 $0.40
44 93913-24220 93913-24220 / SCREW, TAPPING (4X12)

0 $0.55 $0.40
45 94101-10700 94101-10700 / WASHER, PLAIN (10MM)

2 $0.57 $0.41
