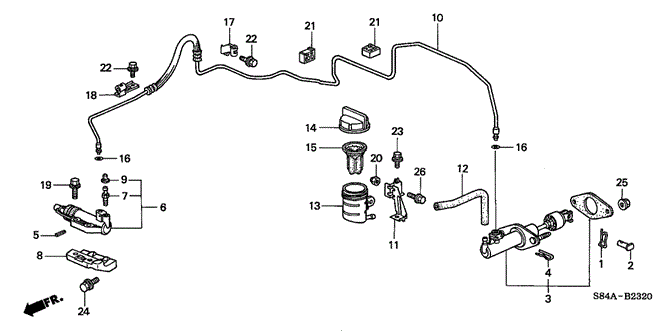

TUBE ASSY., DAMPER in CHASSIS/CLUTCH MASTER CYLINDER for 2002 Honda ACCORD SEDAN

TUBE ASSY., DAMPER in CHASSIS/CLUTCH MASTER CYLINDER for 2002 Honda ACCORD SEDAN #1
22
  • BOLT-WASHER (6X16) - $0.73
13
  • TANK, RESERVOIR - $11.58
10
  • TUBE ASSY., DAMPER - $173.29
8
  • ADAPTER, CYLINDER - $12.94
18
  • CLAMP B, CLUTCH PIPE - $9.97
11
  • STAY, TANK - $26.14
20
  • NUT, SELF-LOCK (6MM) - $2.47
21
  • CLIP A, FUEL PIPE - $0.88
5
  • PIN, CONNECTOR - $4.42
21
  • CLIP A, FUEL PIPE - $0.88
1
  • PIN, LOCK (8MM) - $1.79
12
  • HOSE, CLUTCH FLUID - $14.21
26
  • BOLT, FLANGE (6X16) - $0.64
14
  • CAP, RESERVOIR - $8.75
16
  • X-RING - $0.91
24
  • BOLT-WASHER (8X30) - $0.85
25
  • NUT-WASHER (8MM) - $0.31
7
  • SCREW, BLEEDER - $5.22
15
  • DIAPHRAGM - $5.80
4
  • CLIP, CONNECTOR - $19.54
22
  • BOLT-WASHER (6X16) - $0.73
16
  • X-RING - $0.91
2
  • PIN, CLUTCH PEDAL - $2.32
19
  • BOLT-WASHER (8X40) - $0.86
9
  • CAP, BLEEDER - $3.14
6
  • CYLINDER ASSY., CLUTCH SLAVE - $73.91
3
  • MASTER CYLINDER ASSY., CLUTCH - $123.20
17
  • CLAMP A, CLUTCH PIPE - $5.15
23
  • BOLT-WASHER (6X12) - $0.67
No. Part # Part # / Description Qty Req. List Price Price
1 46911-S70-003 46911-S70-003 / PIN, LOCK (8MM)

1 $2.48 $1.79
2 46912-S84-A00 46912-S84-A00 / PIN, CLUTCH PEDAL

1 $3.22 $2.32
3 46920-S84-A02 46920-S84-A02 / MASTER CYLINDER ASSY., CLUTCH

1 $171.12 $123.20
4 46924-S84-A02 46924-S84-A02 / CLIP, CONNECTOR

1 $27.13 $19.54
5 46925-S84-A01 46925-S84-A01 / PIN, CONNECTOR

1 $6.13 $4.42
6 46930-S84-A06 46930-S84-A06 / CYLINDER ASSY., CLUTCH SLAVE

1 $102.65 $73.91
7 46938-S84-A03 46938-S84-A03 / SCREW, BLEEDER

1 $7.25 $5.22
8 46939-S84-A00 46939-S84-A00 / ADAPTER, CYLINDER

1 $17.97 $12.94
9 46939-S84-A02 46939-S84-A02 / CAP, BLEEDER

1 $4.37 $3.14
10 46960-S84-A07 46960-S84-A07 / TUBE ASSY., DAMPER

1 $240.68 $173.29
11 46966-S84-A00 46966-S84-A00 / STAY, TANK

1 $36.30 $26.14
12 46971-S84-A02 46971-S84-A02 / HOSE, CLUTCH FLUID

1 $19.73 $14.21
13 46972-S84-A01 46972-S84-A01 / TANK, RESERVOIR

1 $16.08 $11.58
14 46973-S84-A01 46973-S84-A01 / CAP, RESERVOIR

1 $12.15 $8.75
15 46974-S84-A01 46974-S84-A01 / DIAPHRAGM

1 $8.05 $5.80
16 46996-S84-A01 46996-S84-A01 / X-RING

2 $1.27 $0.91
17 46997-S84-A00 46997-S84-A00 / CLAMP A, CLUTCH PIPE

1 $7.15 $5.15
18 46998-S84-A01 46998-S84-A01 / CLAMP B, CLUTCH PIPE

1 $13.85 $9.97
19 90106-S84-A40 90106-S84-A40 / BOLT-WASHER (8X40)

2 $1.20 $0.86
20 90308-SA0-981 90308-SA0-981 / NUT, SELF-LOCK (6MM)

1 $3.43 $2.47
21 91597-SV4-003 91597-SV4-003 / CLIP A, FUEL PIPE

2 $1.22 $0.88
22 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

2 $1.02 $0.73
23 93403-06012-08 93403-06012-08 / BOLT-WASHER (6X12)

1 $0.93 $0.67
24 93403-08030-08 93403-08030-08 / BOLT-WASHER (8X30)

2 $1.18 $0.85
25 94070-08080 94070-08080 / NUT-WASHER (8MM)

2 $0.43 $0.31
26 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.64
