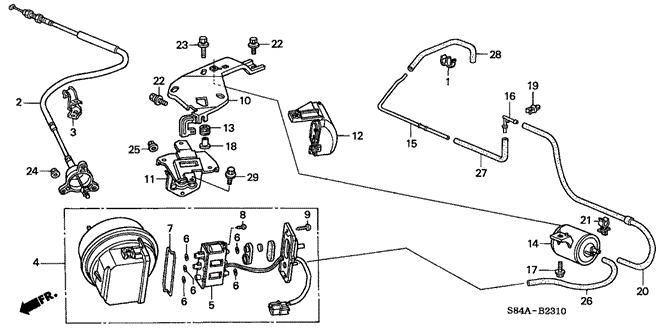

ACTUATOR ASSY. in CHASSIS/AUTO CRUISE for 2002 Honda ACCORD SEDAN

ACTUATOR ASSY. in CHASSIS/AUTO CRUISE for 2002 Honda ACCORD SEDAN #1
23
  • BOLT-WASHER (6X25) - $0.73
24
  • NUT, FLANGE (5MM) - $0.44
6
  • O-RING (P7A) - $1.86
7
  • GASKET - $4.08
11
  • COVER, ACTUATOR - $19.57
21
  • CLAMP, TUBE - $3.18
17
  • BOLT, SPECIAL FLANGE (6X15) - $2.71
2
  • WIRE, ACTUATOR - $18.18
6
  • O-RING (P7A) - $1.86
25
  • NUT, FLANGE (6MM) - $0.60
3
  • STAY, ACTUATOR WIRE - $11.99
20
  • TUBE, ACTUATOR - $4.48
8
  • SCREW, TAPPING (3X10) - $1.55
6
  • O-RING (P7A) - $1.86
14
  • TANK, VACUUM - $23.36
29
  • BOLT, FLANGE (6X16) - $0.64
6
  • O-RING (P7A) - $1.86
13
  • RUBBER, MOUNTING - $1.44
6
  • O-RING (P7A) - $1.86
10
  • STAY, ACTUATOR - $17.15
5
  • VALVE - $107.84
18
  • COLLAR, DISTANCE - $1.52
27
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
19
  • CLIP, VACUUM PIPE (4.5MM) - $4.00
22
  • BOLT-WASHER (6X12) - $0.64
12
  • COVER, VENT - $19.25
22
  • BOLT-WASHER (6X12) - $0.64
4
  • ACTUATOR ASSY. - $140.28
9
  • SCREW, TAPPING (4X16) - $1.81
16
  • JOINT (TWO-WAY)(L-TYPE) - $4.94
15
  • PIPE, VACUUM - $5.99
26
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
28
  • BULK HOSE, VACUUM (3.5X8000) - $38.02
No. Part # Part # / Description Qty Req. List Price Price
2 17880-PAA-A01 17880-PAA-A01 / WIRE, ACTUATOR

1 $25.25 $18.18
3 17932-PAA-A00 17932-PAA-A00 / STAY, ACTUATOR WIRE

1 $16.65 $11.99
4 36520-PAA-A01 36520-PAA-A01 / ACTUATOR ASSY.

1 $194.83 $140.28
5 36521-PAA-A01 36521-PAA-A01 / VALVE

1 $149.78 $107.84
6 36522-P0A-A01 36522-P0A-A01 / O-RING (P7A)

5 $2.58 $1.86
7 36523-P0A-A01 36523-P0A-A01 / GASKET

1 $5.67 $4.08
8 36524-P0A-A01 36524-P0A-A01 / SCREW, TAPPING (3X10)

2 $2.15 $1.55
9 36525-P0A-A01 36525-P0A-A01 / SCREW, TAPPING (4X16)

2 $2.52 $1.81
10 36613-PAA-A01 36613-PAA-A01 / STAY, ACTUATOR

1 $23.82 $17.15
11 36614-PAA-A00 36614-PAA-A00 / COVER, ACTUATOR

1 $27.18 $19.57
12 36615-PAA-A00 36615-PAA-A00 / COVER, VENT

1 $26.73 $19.25
13 36619-PAA-A00 36619-PAA-A00 / RUBBER, MOUNTING

3 $2.00 $1.44
14 36625-P0A-A01 36625-P0A-A01 / TANK, VACUUM

1 $32.45 $23.36
15 36628-PAA-A00 36628-PAA-A00 / PIPE, VACUUM

1 $8.32 $5.99
16 36629-PAA-A00 36629-PAA-A00 / JOINT (TWO-WAY)(L-TYPE)

1 $6.87 $4.94
17 90003-P0A-000 90003-P0A-000 / BOLT, SPECIAL FLANGE (6X15)

1 $3.77 $2.71
18 90526-PAA-A00 90526-PAA-A00 / COLLAR, DISTANCE

3 $2.12 $1.52
19 90601-PAA-A01 90601-PAA-A01 / CLIP, VACUUM PIPE (4.5MM)

1 $5.55 $4.00
20 91442-PAA-A00 91442-PAA-A00 / TUBE, ACTUATOR

1 $6.22 $4.48
21 91597-PAA-A01 91597-PAA-A01 / CLAMP, TUBE

1 $4.42 $3.18
22 93404-06012-07 93404-06012-07 / BOLT-WASHER (6X12)

2 $0.88 $0.64
23 93404-06025-08 93404-06025-08 / BOLT-WASHER (6X25)

3 $1.02 $0.73
24 94050-05070 94050-05070 / NUT, FLANGE (5MM)

3 $0.62 $0.44
25 94050-06070 94050-06070 / NUT, FLANGE (6MM)

3 $0.83 $0.60
28 95005-35008-10M 95005-35008-10M / BULK HOSE, VACUUM (3.5X8000)

1 $52.80 $38.02
29 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.64
