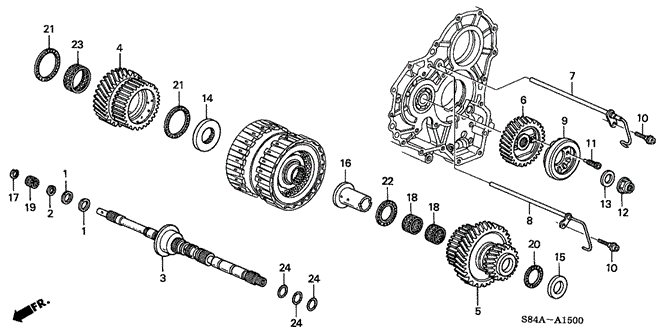

GEAR, MAINSHAFT FOURTH in TRANSMISSION - AUTOMATIC/AT MAINSHAFT (V6) for 2002 Honda ACCORD SEDAN

GEAR, MAINSHAFT FOURTH in TRANSMISSION - AUTOMATIC/AT MAINSHAFT (V6) for 2002 Honda ACCORD SEDAN #1
13
  • WASHER, SPRING (24MM) - $8.00
17
  • SET-RING (23MM) - $1.50
11
  • BOLT, SOCKET (6X15) - $1.08
18
  • BEARING, NEEDLE (34X40X20) - $16.86
19
  • BEARING, NEEDLE (23X29X20) - $12.65
7
  • PIPE, PITOT - $15.13
15
  • WASHER, THRUST (27X47X5) - $8.00
6
  • GEAR, MAINSHAFT IDLE - $64.48
23
  • BEARING, NEEDLE (53X59X18.5) (INA) - $81.29
4
  • GEAR, MAINSHAFT THIRD - $89.33
24
  • O-RING (33X1.9) (ARAI) - $1.70
16
  • COLLAR (27X34X58.5) - $25.93
9
  • FLANGE, PITOT - $19.34
10
  • BOLT, FLANGE (6X20) - $1.26
10
  • BOLT, FLANGE (6X20) - $1.26
21
  • BEARING, THRUST NEEDLE (60X74X2.5) - $9.12
1
  • RING, SEALING (32MM) - $4.85
20
  • BEARING, THRUST NEEDLE (34X46X2) - $3.62
24
  • O-RING (33X1.9) (ARAI) - $1.70
18
  • BEARING, NEEDLE (34X40X20) - $16.86
21
  • BEARING, THRUST NEEDLE (60X74X2.5) - $9.12
14
  • WASHER, THRUST (41X73X8.05) - $19.98
  • WASHER, THRUST (41X73X7.90) - $19.98
  • WASHER, THRUST (41X73X8.00) - $19.98
  • WASHER, THRUST (41X73X7.85) - $19.98
  • WASHER, THRUST (41X73X7.95) - $19.98
  • WASHER, THRUST (41X73X8.10) - $19.98
22
  • BEARING, THRUST NEEDLE (34X53.5X2.5) - $10.54
12
  • NUT, FLANGE (24MM) - $8.78
8
  • PIPE, PITOT - $10.62
1
  • RING, SEALING (32MM) - $4.85
5
  • GEAR, MAINSHAFT FOURTH - $164.99
2
  • RING, SEALING (29MM) - $4.85
24
  • O-RING (33X1.9) (ARAI) - $1.70
3
  • MAINSHAFT - $131.26
No. Part # Part # / Description Qty Req. List Price Price
1 22814-P0X-003 22814-P0X-003 / RING, SEALING (32MM)

2 $6.73 $4.85
2 22815-P4P-003 22815-P4P-003 / RING, SEALING (29MM)

1 $6.73 $4.85
3 23210-P7X-000 23210-P7X-000 / MAINSHAFT

1 $182.30 $131.26
4 23455-P7Z-000 23455-P7Z-000 / GEAR, MAINSHAFT THIRD

1 $124.07 $89.33
5 23461-P7X-000 23461-P7X-000 / GEAR, MAINSHAFT FOURTH

1 $229.15 $164.99
6 23481-P7T-000 23481-P7T-000 / GEAR, MAINSHAFT IDLE

1 $89.55 $64.48
7 25310-P7T-000 25310-P7T-000 / PIPE, PITOT

1 $21.02 $15.13
8 25320-P7T-000 25320-P7T-000 / PIPE, PITOT

1 $14.75 $10.62
9 25331-PCJ-000 25331-PCJ-000 / FLANGE, PITOT

1 $26.87 $19.34
10 90005-PCJ-000 90005-PCJ-000 / BOLT, FLANGE (6X20)

2 $1.75 $1.26
11 90007-PCJ-000 90007-PCJ-000 / BOLT, SOCKET (6X15)

2 $1.50 $1.08
12 90201-P0Z-000 90201-P0Z-000 / NUT, FLANGE (24MM)

1 $12.20 $8.78
13 90402-P0Z-000 90402-P0Z-000 / WASHER, SPRING (24MM)

1 $11.12 $8.00
14 90418-P7T-000 90418-P7T-000 / WASHER, THRUST (41X73X8.05)

1 $27.75 $19.98
14 90415-P7T-000 90415-P7T-000 / WASHER, THRUST (41X73X7.90)

1 $27.75 $19.98
14 90417-P7T-000 90417-P7T-000 / WASHER, THRUST (41X73X8.00)

1 $27.75 $19.98
14 90414-P7T-000 90414-P7T-000 / WASHER, THRUST (41X73X7.85)

1 $27.75 $19.98
14 90416-P7T-000 90416-P7T-000 / WASHER, THRUST (41X73X7.95)

1 $27.75 $19.98
14 90419-P7T-000 90419-P7T-000 / WASHER, THRUST (41X73X8.10)

1 $27.75 $19.98
15 90423-P6H-000 90423-P6H-000 / WASHER, THRUST (27X47X5)

1 $11.12 $8.00
16 90501-P7Z-010 90501-P7Z-010 / COLLAR (27X34X58.5)

1 $36.02 $25.93
17 90603-P0X-000 90603-P0X-000 / SET-RING (23MM)

1 $2.08 $1.50
18 91011-PW4-003 91011-PW4-003 / BEARING, NEEDLE (34X40X20)

2 $23.42 $16.86
19 91017-P7Z-003 91017-P7Z-003 / BEARING, NEEDLE (23X29X20)

1 $17.57 $12.65
20 91018-PW7-A02 91018-PW7-A02 / BEARING, THRUST NEEDLE (34X46X2)

1 $5.03 $3.62
21 91021-P0Z-013 91021-P0Z-013 / BEARING, THRUST NEEDLE (60X74X2.5)

2 $12.67 $9.12
22 91023-P7Z-003 91023-P7Z-003 / BEARING, THRUST NEEDLE (34X53.5X2.5)

1 $14.63 $10.54
23 91029-P7X-007 91029-P7X-007 / BEARING, NEEDLE (53X59X18.5) (INA)

1 $112.90 $81.29
24 91316-PR9-003 91316-PR9-003 / O-RING (33X1.9) (ARAI)

3 $2.37 $1.70
