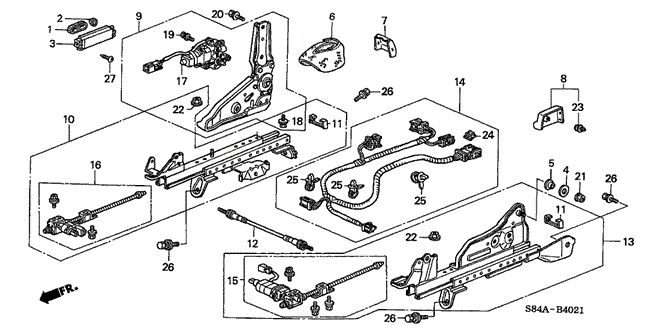

ADJUSTER ASSY., R. RECLINING in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (R.) (4-WAY POWER SEAT) for 2002 Honda ACCORD SEDAN

ADJUSTER ASSY., R. RECLINING in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (R.) (4-WAY POWER SEAT) for 2002 Honda ACCORD SEDAN #1
19
  • SCREW A - $0.18
1
  • KNOB A, POWER SEAT *YR169L* (MILD BEIGE) - $6.83
  • KNOB A, POWER SEAT *NH284L* (LIGHT QUARTZ GRAY) - $6.83
18
  • SCREW - $0.43
25
  • CLIP, HARNESS BAND (151.5MM) (NATURAL) - $1.12
24
  • CLIP, CONNECTOR (NATURAL) - $1.62
8
  • COVER, R. RR. FOOT (INNER) *YR169L* (MILD BEIGE) - $12.74
  • COVER, R. RR. FOOT (INNER) *NH283L* (QUARTZ GRAY) - $12.74
12
  • CABLE ASSY. - $20.53
3
  • SWITCH ASSY., POWER SEAT - $42.90
5
  • BUSH, NYLON (TACHI-S)(BLACK) - $2.32
21
  • NUT, FLANGE (8MM) - $0.18
16
  • BOX ASSY., GEAR - $130.79
9
  • ADJUSTER ASSY., R. RECLINING - $174.97
20
  • BOLT-WASHER (10X22) - $3.68
25
  • CLIP, HARNESS BAND (151.5MM) (NATURAL) - $1.12
11
  • CAP, END (LOWER) - $1.99
22
  • NUT - $1.27
14
  • CORD, R. POWER SEAT (4 WAY) - $19.64
4
  • WASHER, NYLON - $2.10
26
  • BOLT-WASHER (10X20) - $0.94
22
  • NUT - $1.27
6
  • BOOT, R. RECLINING *YR169L* (MILD BEIGE) - $34.28
  • BOOT, R. RECLINING *NH284L* (LIGHT QUARTZ GRAY) - $67.99
23
  • CLIP, RR. TRAY - $1.03
10
  • ADJUSTER ASSY., R. SLIDE (OUTER) - $84.66
26
  • BOLT-WASHER (10X20) - $0.94
17
  • MOTOR ASSY., R. RECLINING - $146.42
11
  • CAP, END (LOWER) - $1.99
26
  • BOLT-WASHER (10X20) - $0.94
7
  • COVER, RR. FOOT (OUTER) *YR169L* (MILD BEIGE) - $12.29
  • COVER, RR. FOOT (OUTER) *NH283L* (QUARTZ GRAY) - $12.29
25
  • CLIP, HARNESS BAND (151.5MM) (NATURAL) - $1.12
13
  • ADJUSTER ASSY., R. SLIDE (INNER) - $135.61
27
  • SCREW, TAPPING (4X10) - $0.40
26
  • BOLT-WASHER (10X20) - $0.94
15
  • MOTOR ASSY., L. SLIDE - $131.09
2
  • KNOB B, POWER SEAT *YR169L* (MILD BEIGE) - $5.14
  • KNOB B, POWER SEAT *NH284L* (LIGHT QUARTZ GRAY) - $5.14
No. Part # Part # / Description Qty Req. List Price Price
1 35951-S0K-A00ZC 35951-S0K-A00ZC / KNOB A, POWER SEAT *YR169L* (MILD BEIGE)

1 $9.48 $6.83
1 35951-S0K-A00ZD 35951-S0K-A00ZD / KNOB A, POWER SEAT *NH284L* (LIGHT QUARTZ GRAY)

1 $9.48 $6.83
2 35952-S87-A51ZB 35952-S87-A51ZB / KNOB B, POWER SEAT *YR169L* (MILD BEIGE)

2 $7.13 $5.14
2 35952-S87-A51ZA 35952-S87-A51ZA / KNOB B, POWER SEAT *NH284L* (LIGHT QUARTZ GRAY)

2 $7.13 $5.14
3 35958-S0K-A00 35958-S0K-A00 / SWITCH ASSY., POWER SEAT

1 $59.58 $42.90
4 77209-SB0-003 77209-SB0-003 / WASHER, NYLON

1 $2.92 $2.10
5 81108-SE3-J02 81108-SE3-J02 / BUSH, NYLON (TACHI-S)(BLACK)

1 $3.22 $2.32
6 81138-S0K-A00ZC 81138-S0K-A00ZC / BOOT, R. RECLINING *YR169L* (MILD BEIGE)

1 $47.62 $34.28
6 81138-S0K-A00ZD 81138-S0K-A00ZD / BOOT, R. RECLINING *NH284L* (LIGHT QUARTZ GRAY)

1 $94.43 $67.99
7 81195-S87-A50ZF 81195-S87-A50ZF / COVER, RR. FOOT (OUTER) *YR169L* (MILD BEIGE)

1 $17.07 $12.29
7 81195-S87-A50ZB 81195-S87-A50ZB / COVER, RR. FOOT (OUTER) *NH283L* (QUARTZ GRAY)

1 $17.07 $12.29
8 81196-S87-A80ZB 81196-S87-A80ZB / COVER, R. RR. FOOT (INNER) *YR169L* (MILD BEIGE)

1 $17.70 $12.74
8 81196-S87-A80ZA 81196-S87-A80ZA / COVER, R. RR. FOOT (INNER) *NH283L* (QUARTZ GRAY)

1 $17.70 $12.74
9 81230-S0K-A01 81230-S0K-A01 / ADJUSTER ASSY., R. RECLINING

1 $243.02 $174.97
10 81260-S0K-A01 81260-S0K-A01 / ADJUSTER ASSY., R. SLIDE (OUTER)

1 $117.58 $84.66
11 81261-S0K-003 81261-S0K-003 / CAP, END (LOWER)

2 $2.77 $1.99
12 81266-SX0-003 81266-SX0-003 / CABLE ASSY.

1 $28.52 $20.53
13 81270-S87-A81 81270-S87-A81 / ADJUSTER ASSY., R. SLIDE (INNER)

1 $188.35 $135.61
14 81311-S0K-H62 81311-S0K-H62 / CORD, R. POWER SEAT (4 WAY)

1 $27.28 $19.64
15 81514-SX0-003 81514-SX0-003 / MOTOR ASSY., L. SLIDE

1 $182.07 $131.09
16 81515-SX0-003 81515-SX0-003 / BOX ASSY., GEAR

1 $181.65 $130.79
17 90107-S0K-003 90107-S0K-003 / MOTOR ASSY., R. RECLINING

1 $203.37 $146.42
18 90108-S0K-003 90108-S0K-003 / SCREW

2 $0.60 $0.43
19 90133-S0K-003 90133-S0K-003 / SCREW A

3 $0.25 $0.18
20 90143-SR3-900 90143-SR3-900 / BOLT-WASHER (10X22)

4 $5.12 $3.68
21 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
22 90301-S0K-003 90301-S0K-003 / NUT

2 $1.77 $1.27
23 90668-SJ4-003 90668-SJ4-003 / CLIP, RR. TRAY

1 $1.43 $1.03
24 91533-S04-003 91533-S04-003 / CLIP, CONNECTOR (NATURAL)

1 $2.25 $1.62
25 91540-S30-003 91540-S30-003 / CLIP, HARNESS BAND (151.5MM) (NATURAL)

3 $1.55 $1.12
26 93405-10020-07 93405-10020-07 / BOLT-WASHER (10X20)

4 $1.30 $0.94
27 93903-14220 93903-14220 / SCREW, TAPPING (4X10)

2 $0.55 $0.40
