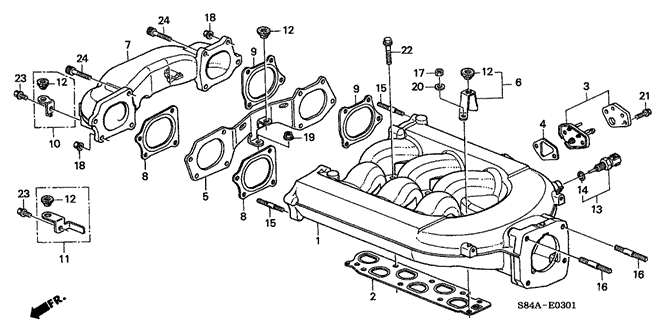

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD (V6) for 2002 Honda ACCORD SEDAN

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD (V6) for 2002 Honda ACCORD SEDAN #1
8
  • GASKET, FR. IN. MANIFOLD STAY (NIPPON LEAKLESS) - $5.51
9
  • GASKET, RR. IN. MANIFOLD STAY (NIPPON LEAKLESS) - $5.51
18
  • NUT, FLANGE (6MM) - $0.60
23
  • BOLT, SOCKET (6X12) - $0.67
14
  • O-RING - $1.79
10
  • STAY B, IN. MANIFOLD COVER - $2.75
4
  • GASKET, BOOST PLATE - $1.58
22
  • BOLT, FLANGE (8X32) - $0.92
3
  • PLATE ASSY., BOOST - $16.24
20
  • WASHER, PLAIN (8MM) - $0.32
19
  • NUT, FLANGE (8MM) - $0.18
2
  • GASKET, IN. MANIFOLD (NIPPON LEAKLESS) - $12.44
1
  • MANIFOLD, IN. - $567.68
6
  • STAY ASSY. A, IN. MANIFOLD COVER - $12.11
8
  • GASKET, FR. IN. MANIFOLD STAY (NIPPON LEAKLESS) - $5.51
16
  • BOLT, STUD (8X50) - $1.07
16
  • BOLT, STUD (8X50) - $1.07
13
  • SENSOR ASSY., AIR TEMPERATURE - $28.04
15
  • BOLT, STUD (6X22) - $0.70
23
  • BOLT, SOCKET (6X12) - $0.67
12
  • RUBBER, IN. MANIFOLD COVER MOUNTING - $1.20
17
  • NUT, HEX. (8MM) - $0.43
11
  • STAY C, IN. MANIFOLD COVER - $3.62
24
  • BOLT, SOCKET (6X25) - $0.86
24
  • BOLT, SOCKET (6X25) - $0.86
5
  • STAY, IN. MANIFOLD - $22.86
21
  • BOLT, FLANGE (6X18) - $0.64
9
  • GASKET, RR. IN. MANIFOLD STAY (NIPPON LEAKLESS) - $5.51
15
  • BOLT, STUD (6X22) - $0.70
18
  • NUT, FLANGE (6MM) - $0.60
12
  • RUBBER, IN. MANIFOLD COVER MOUNTING - $1.20
7
  • CHAMBER B, IN. MANIFOLD - $104.76
12
  • RUBBER, IN. MANIFOLD COVER MOUNTING - $1.20
12
  • RUBBER, IN. MANIFOLD COVER MOUNTING - $1.20
No. Part # Part # / Description Qty Req. List Price Price
1 17100-P8A-A11 17100-P8A-A11 / MANIFOLD, IN.

1 $788.45 $567.68
2 17105-P8A-A01 17105-P8A-A01 / GASKET, IN. MANIFOLD (NIPPON LEAKLESS)

1 $17.28 $12.44
3 17111-P8A-A00 17111-P8A-A00 / PLATE ASSY., BOOST

1 $22.55 $16.24
4 17112-P8A-A01 17112-P8A-A01 / GASKET, BOOST PLATE

1 $2.20 $1.58
5 17132-P8A-A00 17132-P8A-A00 / STAY, IN. MANIFOLD

1 $31.75 $22.86
6 17133-P8A-A00 17133-P8A-A00 / STAY ASSY. A, IN. MANIFOLD COVER

1 $16.82 $12.11
7 17140-P8A-A10 17140-P8A-A10 / CHAMBER B, IN. MANIFOLD

1 $145.50 $104.76
8 17144-P8A-A01 17144-P8A-A01 / GASKET, FR. IN. MANIFOLD STAY (NIPPON LEAKLESS)

2 $7.65 $5.51
9 17145-P8A-A01 17145-P8A-A01 / GASKET, RR. IN. MANIFOLD STAY (NIPPON LEAKLESS)

2 $7.65 $5.51
10 17148-P8A-A00 17148-P8A-A00 / STAY B, IN. MANIFOLD COVER

1 $3.82 $2.75
11 17149-P8A-A00 17149-P8A-A00 / STAY C, IN. MANIFOLD COVER

1 $5.03 $3.62
12 17213-P8A-A00 17213-P8A-A00 / RUBBER, IN. MANIFOLD COVER MOUNTING

4 $1.67 $1.20
13 37880-P0A-A02 37880-P0A-A02 / SENSOR ASSY., AIR TEMPERATURE

1 $38.95 $28.04
14 91303-P0A-A02 91303-P0A-A02 / O-RING

1 $2.48 $1.79
15 92900-06022-0B 92900-06022-0B / BOLT, STUD (6X22)

4 $0.97 $0.70
16 92900-08050-1B 92900-08050-1B / BOLT, STUD (8X50)

2 $1.48 $1.07
17 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

2 $0.60 $0.43
18 94050-06070 94050-06070 / NUT, FLANGE (6MM)

4 $0.83 $0.60
19 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
20 94101-08000 94101-08000 / WASHER, PLAIN (8MM)

2 $0.45 $0.32
21 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

2 $0.88 $0.64
22 95701-08032-08 95701-08032-08 / BOLT, FLANGE (8X32)

6 $1.28 $0.92
23 96600-06012-08 96600-06012-08 / BOLT, SOCKET (6X12)

2 $0.93 $0.67
24 96600-06025-07 96600-06025-07 / BOLT, SOCKET (6X25)

4 $1.20 $0.86
