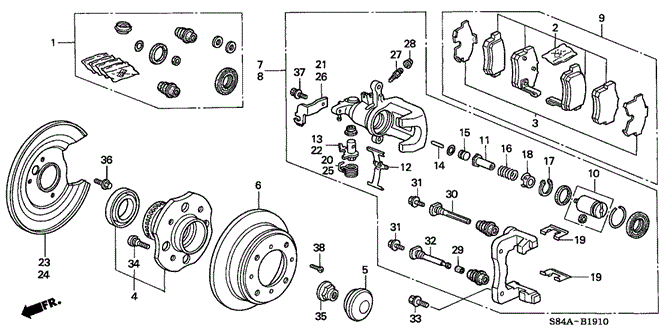

CALIPER SUB-ASSY in CHASSIS/REAR BRAKE (DISK) for 2002 Honda ACCORD SEDAN

CALIPER SUB-ASSY in CHASSIS/REAR BRAKE (DISK) for 2002 Honda ACCORD SEDAN #1
22
  • LEVER, L. - $31.67
35
  • NUT, SPINDLE - $2.20
10
  • PISTON ASSY. - $49.15
28
  • CAP, BLEEDER SCREW - $0.08
25
  • SPRING, L. LEVER RETURN - $3.96
36
  • BOLT, FLANGE (6X12) - $0.72
  • BOLT-WASHER (6X16) - $0.73
3
  • SHIM SET, RR. - $2.90
7
  • CALIPER SUB-ASSY - $136.69
14
  • ROD - $4.79
15
  • CONNECTOR - $6.13
24
  • SPLASH GUARD, L. RR. - $19.07
27
  • SCREW, BLEEDER - $2.71
16
  • SPRING A, ADJUSTER - $2.32
19
  • RETAINER - $5.29
34
  • BOLT, WHEEL (SAGA) - $4.04
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
  • BOLT, WHEEL (ROCKNEL FASTENER) - $1.32
8
  • CALIPER SUB-ASSY - $136.69
38
  • SCREW, FLAT (6X14) - $0.43
5
  • CAP, HUB UNIT - $3.36
6
  • DISK, RR. BRAKE - $80.99
12
  • SPRING, PAD - $4.87
17
  • RING, RETAINING - $4.50
32
  • PIN B - $9.74
31
  • BOLT - $0.98
37
  • BOLT-WASHER (10X25) - $0.94
11
  • SLEEVE - $10.86
21
  • ARM, R. - $10.30
18
  • GUIDE, SPRING - $4.22
9
  • PAD SET, RR. - $46.80
23
  • SPLASH GUARD, R. RR. - $19.07
19
  • RETAINER - $5.29
29
  • BUSH - $2.53
33
  • BOLT, FLANGE (10X30) - $3.04
13
  • LEVER, R. - $31.67
4
  • BEARING ASSY., RR. HUB UNIT - $113.99
20
  • SPRING, R. RETURN - $3.96
26
  • ARM, L. - $10.30
31
  • BOLT - $0.98
30
  • PIN A - $9.74
1
  • CALIPER SET, RR. - $21.00
No. Part # Part # / Description Qty Req. List Price Price
1 01473-SY8-010 01473-SY8-010 / CALIPER SET, RR.

2 $29.17 $21.00
3 06435-S84-A00 06435-S84-A00 / SHIM SET, RR.

1 $4.03 $2.90
4 42200-S84-C52 42200-S84-C52 / BEARING ASSY., RR. HUB UNIT

2 $158.32 $113.99
5 42326-SLJ-000 42326-SLJ-000 / CAP, HUB UNIT

2 $4.67 $3.36
6 42510-S84-A50 42510-S84-A50 / DISK, RR. BRAKE

2 $112.48 $80.99
7 43018-S84-A12 43018-S84-A12 / CALIPER SUB-ASSY

1 $189.85 $136.69
8 43019-S84-A12 43019-S84-A12 / CALIPER SUB-ASSY

1 $189.85 $136.69
9 43022-SY8-A01 43022-SY8-A01 / PAD SET, RR.

1 $65.00 $46.80
10 43215-SY8-A01 43215-SY8-A01 / PISTON ASSY.

2 $68.27 $49.15
11 43217-SY8-A01 43217-SY8-A01 / SLEEVE

2 $15.08 $10.86
12 43227-SY8-A01 43227-SY8-A01 / SPRING, PAD

2 $6.77 $4.87
13 43228-S84-A13 43228-S84-A13 / LEVER, R.

1 $43.98 $31.67
14 43229-SY8-A03 43229-SY8-A03 / ROD

2 $6.65 $4.79
15 43233-SY8-A01 43233-SY8-A01 / CONNECTOR

2 $8.52 $6.13
16 43237-SY8-A01 43237-SY8-A01 / SPRING A, ADJUSTER

2 $3.22 $2.32
17 43238-SY8-A01 43238-SY8-A01 / RING, RETAINING

2 $6.25 $4.50
18 43241-SY8-A01 43241-SY8-A01 / GUIDE, SPRING

2 $5.87 $4.22
19 43244-SY8-A01 43244-SY8-A01 / RETAINER

4 $7.35 $5.29
20 43246-S84-A12 43246-S84-A12 / SPRING, R. RETURN

1 $5.50 $3.96
21 43247-S84-A13 43247-S84-A13 / ARM, R.

1 $14.30 $10.30
22 43248-S84-A13 43248-S84-A13 / LEVER, L.

1 $43.98 $31.67
23 43253-S4K-305 43253-S4K-305 / SPLASH GUARD, R. RR.

1 $26.48 $19.07
24 43254-S4K-305 43254-S4K-305 / SPLASH GUARD, L. RR.

1 $26.48 $19.07
25 43266-S84-A12 43266-S84-A12 / SPRING, L. LEVER RETURN

1 $5.50 $3.96
26 43267-S84-A13 43267-S84-A13 / ARM, L.

1 $14.30 $10.30
27 45215-671-672 45215-671-672 / SCREW, BLEEDER

2 $3.77 $2.71
28 45219-671-672 45219-671-672 / CAP, BLEEDER SCREW

2 $0.12 $0.08
29 45233-S01-A01 45233-S01-A01 / BUSH

2 $3.52 $2.53
30 45235-S01-A01 45235-S01-A01 / PIN A

2 $13.53 $9.74
31 45240-S01-A01 45240-S01-A01 / BOLT

4 $1.37 $0.98
32 45262-S01-A01 45262-S01-A01 / PIN B

2 $13.53 $9.74
33 90103-SV4-013 90103-SV4-013 / BOLT, FLANGE (10X30)

4 $4.22 $3.04
34 90113-SA0-006 90113-SA0-006 / BOLT, WHEEL (SAGA)

8 $5.62 $4.04
34 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.32
34 90113-SM1-005 90113-SM1-005 / BOLT, WHEEL (ROCKNEL FASTENER)

8 $1.83 $1.32
35 90305-S30-003 90305-S30-003 / NUT, SPINDLE

2 $3.05 $2.20
36 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

6 $1.00 $0.72
36 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

6 $1.02 $0.73
37 93402-10025-08 93402-10025-08 / BOLT-WASHER (10X25)

2 $1.30 $0.94
38 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
