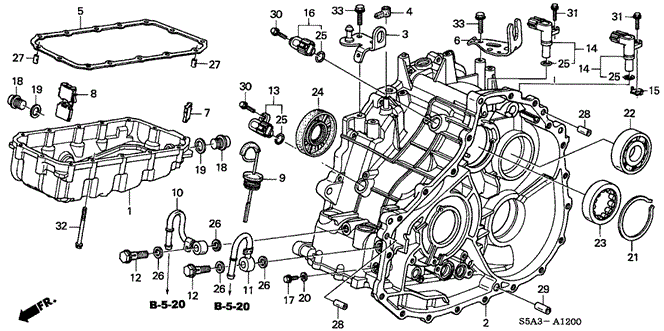

CASE, TRANSMISSION (DOT) in TRANSMISSION - AUTOMATIC/CVT TRANSMISSION HOUSING - OIL PAN for 2001 Honda CIVIC SEDAN

CASE, TRANSMISSION (DOT) in TRANSMISSION - AUTOMATIC/CVT TRANSMISSION HOUSING - OIL PAN for 2001 Honda CIVIC SEDAN #1
13
  • PICK-UP ASSY. (MATSUSHITA) - $46.74
3
  • HANGER, TRANSMISSION - $5.53
11
  • PIPE B, B (ATF) - $12.60
25
  • O-RING (16X2.1) (NOK) - $1.45
6
  • STAY, CONTROL WIRE - $7.37
31
  • BOLT, FLANGE (6X18) - $0.64
24
  • OIL SEAL (35X76X9) (NOK) - $9.77
28
  • PIN, DOWEL (10X16) - $0.96
19
  • WASHER, DRAIN PLUG (18MM) - $1.68
9
  • DIPSTICK (ATF) - $10.36
23
  • BEARING, NEEDLE (44X73X17) - $65.00
5
  • GASKET, OIL PAN - $11.44
30
  • BOLT, FLANGE (6X16) - $0.64
28
  • PIN, DOWEL (10X16) - $0.96
27
  • PIN, DOWEL (8X14) - $0.84
15
  • WASHER, PICK-UP (A) - $2.40
33
  • BOLT, FLANGE (8X20) - $0.64
26
  • WASHER, DRAIN PLUG (12MM) - $0.43
27
  • PIN, DOWEL (8X14) - $0.84
16
  • PICK-UP ASSY. (MATSUSHITA) - $45.23
21
  • CIRCLIP (OUTER) (73) - $3.41
25
  • O-RING (16X2.1) (NOK) - $1.45
18
  • BOLT, PLUG (18MM) - $4.48
14
  • PICK-UP ASSY. (MATSUSHITA) - $74.69
30
  • BOLT, FLANGE (6X16) - $0.64
26
  • WASHER, DRAIN PLUG (12MM) - $0.43
25
  • O-RING (16X2.1) (NOK) - $1.45
20
  • GASKET (8MM) - $1.20
19
  • WASHER, DRAIN PLUG (18MM) - $1.68
31
  • BOLT, FLANGE (6X18) - $0.64
7
  • MAGNET, TRANSMISSION - $5.50
29
  • PIN, DOWEL (12X20) - $0.96
18
  • BOLT, PLUG (18MM) - $4.48
32
  • BOLT, FLANGE (6X45) - $0.86
33
  • BOLT, FLANGE (8X20) - $0.64
10
  • PIPE A (ATF) - $12.60
1
  • PAN, OIL - $98.93
4
  • CAP, BREATHER - $3.02
17
  • BOLT, SEALING (8MM) - $2.26
25
  • O-RING (16X2.1) (NOK) - $1.45
8
  • MAGNET, TRANSMISSION - $10.24
14
  • PICK-UP ASSY. (MATSUSHITA) - $74.69
22
  • BEARING, BALL (63/32-27) - $34.90
26
  • WASHER, DRAIN PLUG (12MM) - $0.43
12
  • BOLT, JOINT - $8.32
2
  • CASE, TRANSMISSION (DOT) - $497.51
12
  • BOLT, JOINT - $8.32
26
  • WASHER, DRAIN PLUG (12MM) - $0.43
No. Part # Part # / Description Qty Req. List Price Price
1 21151-PLY-000 21151-PLY-000 / PAN, OIL

1 $137.40 $98.93
2 21210-PLY-305 21210-PLY-305 / CASE, TRANSMISSION (DOT)

1 $690.98 $497.51
3 21232-PLY-000 21232-PLY-000 / HANGER, TRANSMISSION

1 $7.68 $5.53
4 21396-P20-000 21396-P20-000 / CAP, BREATHER

1 $4.20 $3.02
5 21814-P4V-000 21814-P4V-000 / GASKET, OIL PAN

1 $15.88 $11.44
6 24910-PMS-000 24910-PMS-000 / STAY, CONTROL WIRE

1 $10.23 $7.37
7 25422-PN6-801 25422-PN6-801 / MAGNET, TRANSMISSION

1 $7.63 $5.50
8 25422-PY8-J11 25422-PY8-J11 / MAGNET, TRANSMISSION

1 $14.22 $10.24
9 25610-PLY-A01 25610-PLY-A01 / DIPSTICK (ATF)

1 $14.38 $10.36
10 25910-PLY-A00 25910-PLY-A00 / PIPE A (ATF)

1 $17.50 $12.60
11 25920-PLY-A00 25920-PLY-A00 / PIPE B, B (ATF)

1 $17.50 $12.60
12 25951-639-000 25951-639-000 / BOLT, JOINT

2 $11.55 $8.32
13 28810-PCJ-014 28810-PCJ-014 / PICK-UP ASSY. (MATSUSHITA)

1 $64.92 $46.74
14 28810-P7W-004 28810-P7W-004 / PICK-UP ASSY. (MATSUSHITA)

2 $103.73 $74.69
15 28811-PLY-000 28811-PLY-000 / WASHER, PICK-UP (A)

1 $3.33 $2.40
16 28820-PCJ-014 28820-PCJ-014 / PICK-UP ASSY. (MATSUSHITA)

1 $62.82 $45.23
17 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

1 $3.13 $2.26
18 90081-PLY-000 90081-PLY-000 / BOLT, PLUG (18MM)

2 $6.22 $4.48
19 90471-PX4-000 90471-PX4-000 / WASHER, DRAIN PLUG (18MM)

2 $2.33 $1.68
20 90471-580-000 90471-580-000 / GASKET (8MM)

1 $1.67 $1.20
21 90608-P4V-000 90608-P4V-000 / CIRCLIP (OUTER) (73)

1 $4.73 $3.41
22 91006-PX4-003 91006-PX4-003 / BEARING, BALL (63/32-27)

1 $48.47 $34.90
23 91101-P4V-003 91101-P4V-003 / BEARING, NEEDLE (44X73X17)

1 $90.28 $65.00
24 91206-689-005 91206-689-005 / OIL SEAL (35X76X9) (NOK)

1 $13.57 $9.77
25 91309-PX4-003 91309-PX4-003 / O-RING (16X2.1) (NOK)

4 $2.02 $1.45
26 94109-12000 94109-12000 / WASHER, DRAIN PLUG (12MM)

4 $0.60 $0.43
27 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
28 94301-10160 94301-10160 / PIN, DOWEL (10X16)

2 $1.33 $0.96
29 94301-12200 94301-12200 / PIN, DOWEL (12X20)

1 $1.33 $0.96
30 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

2 $0.88 $0.64
31 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

2 $0.88 $0.64
32 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

14 $1.20 $0.86
33 95701-08020-08 95701-08020-08 / BOLT, FLANGE (8X20)

4 $0.88 $0.64
