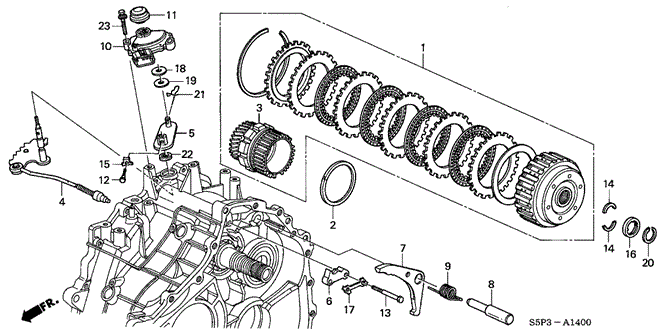

CLUTCH SET, STARTING in TRANSMISSION - AUTOMATIC/CVT STARTING CLUTCH for 2001 Honda CIVIC SEDAN

CLUTCH SET, STARTING in TRANSMISSION - AUTOMATIC/CVT STARTING CLUTCH for 2001 Honda CIVIC SEDAN #1
14
  • COTTER (25.5) (2.9) (A) - $5.90
  • COTTER (25.5) (3.0) (B) - $5.90
  • COTTER (25.5) (3.1) (C) - $5.90
  • COTTER (25.5) (3.2) (D) - $5.90
18
  • WASHER A, CONTROL WIRE - $1.69
17
  • WASHER, TONGUED (6MM) - $1.70
  • WASHER, TONGUED (6MM) - $1.70
14
  • COTTER (25.5) (2.9) (A) - $5.90
  • COTTER (25.5) (3.0) (B) - $5.90
  • COTTER (25.5) (3.1) (C) - $5.90
  • COTTER (25.5) (3.2) (D) - $5.90
16
  • RETAINER, COTTER - $2.45
11
  • CAP, POSITION SENSOR - $3.73
13
  • BOLT, HEX. (6MM) - $2.45
12
  • BOLT, HEX. (6MM) - $2.86
2
  • RING, SEAL - $15.68
8
  • SHAFT, PARKING - $11.22
21
  • PIN, SNAP (9MM) - $2.50
1
  • CLUTCH SET, STARTING - $298.57
23
  • BOLT-WASHER (6X32) - $0.86
4
  • SHAFT, CONTROL - $49.91
19
  • WASHER B (0.5MM) - $2.04
5
  • LEVER, CONTROL - $14.15
22
  • OIL SEAL (12X22X7) (ARAI) - $4.49
10
  • SENSOR ASSY., POSITION - $61.60
  • SENSOR, POSITION - $61.60
  • SENSOR, POSITION - $61.60
6
  • HOLDER, PARKING BRAKE ROD - $17.68
3
  • GEAR ASSY., SECONDARY DRIVE - $142.15
7
  • PAWL, PARKING BRAKE - $36.92
9
  • SPRING, PARKING PAWL - $2.93
20
  • CIRCLIP, OUTER (29MM) - $2.26
15
  • WASHER, LOCK (6MM) - $1.88
No. Part # Part # / Description Qty Req. List Price Price
1 22020-PLY-315 22020-PLY-315 / CLUTCH SET, STARTING

1 $414.68 $298.57
2 22813-P4V-003 22813-P4V-003 / RING, SEAL

1 $21.78 $15.68
3 23240-PET-G00 23240-PET-G00 / GEAR ASSY., SECONDARY DRIVE

1 $197.43 $142.15
4 24410-PLY-000 24410-PLY-000 / SHAFT, CONTROL

1 $69.32 $49.91
5 24412-PLY-000 24412-PLY-000 / LEVER, CONTROL

1 $19.65 $14.15
6 24543-P4V-000 24543-P4V-000 / HOLDER, PARKING BRAKE ROD

1 $24.55 $17.68
7 24561-P4V-000 24561-P4V-000 / PAWL, PARKING BRAKE

1 $51.28 $36.92
8 24562-PN0-000 24562-PN0-000 / SHAFT, PARKING

1 $15.58 $11.22
9 24563-P4V-000 24563-P4V-000 / SPRING, PARKING PAWL

1 $4.07 $2.93
10 28900-PLY-023 28900-PLY-023 / SENSOR ASSY., POSITION

1 $85.55 $61.60
10 28900-PLY-023 28900-PLY-023 / SENSOR, POSITION

1 $85.55 $61.60
10 28900-PLY-023 28900-PLY-023 / SENSOR, POSITION

1 $85.55 $61.60
11 28905-PLY-000 28905-PLY-000 / CAP, POSITION SENSOR

1 $5.18 $3.73
12 90001-PA9-000 90001-PA9-000 / BOLT, HEX. (6MM)

1 $3.97 $2.86
13 90001-PY4-003 90001-PY4-003 / BOLT, HEX. (6MM)

2 $3.40 $2.45
14 90429-P4V-000 90429-P4V-000 / COTTER (25.5) (2.9) (A)

2 $8.20 $5.90
14 90430-P4V-000 90430-P4V-000 / COTTER (25.5) (3.0) (B)

2 $8.20 $5.90
14 90431-P4V-000 90431-P4V-000 / COTTER (25.5) (3.1) (C)

2 $8.20 $5.90
14 90432-P4V-000 90432-P4V-000 / COTTER (25.5) (3.2) (D)

2 $8.20 $5.90
15 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

1 $2.62 $1.88
16 90435-P4V-000 90435-P4V-000 / RETAINER, COTTER

1 $3.40 $2.45
17 90448-P4V-010 90448-P4V-010 / WASHER, TONGUED (6MM)

1 $2.37 $1.70
17 90448-P4V-010 90448-P4V-010 / WASHER, TONGUED (6MM)

1 $2.37 $1.70
18 90555-S2H-950 90555-S2H-950 / WASHER A, CONTROL WIRE

1 $2.35 $1.69
19 90556-S50-950 90556-S50-950 / WASHER B (0.5MM)

1 $2.83 $2.04
20 90611-P4V-000 90611-P4V-000 / CIRCLIP, OUTER (29MM)

1 $3.13 $2.26
21 90706-PS5-000 90706-PS5-000 / PIN, SNAP (9MM)

1 $3.47 $2.50
22 91209-612-003 91209-612-003 / OIL SEAL (12X22X7) (ARAI)

1 $6.23 $4.49
23 93403-06032-08 93403-06032-08 / BOLT-WASHER (6X32)

2 $1.20 $0.86
