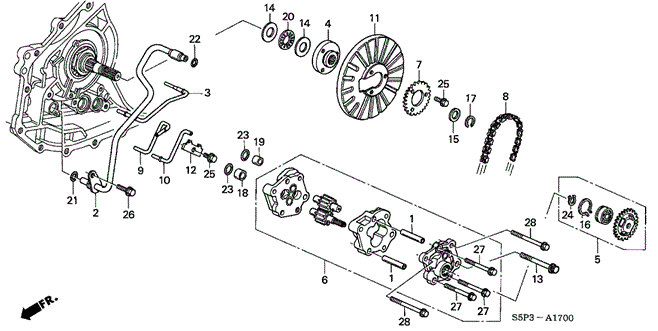

PUMP, OIL in TRANSMISSION - AUTOMATIC/CVT OIL PUMP for 2001 Honda CIVIC SEDAN

PUMP, OIL in TRANSMISSION - AUTOMATIC/CVT OIL PUMP for 2001 Honda CIVIC SEDAN #1
28
  • BOLT, FLANGE (6X60) - $0.86
20
  • BEARING, THRUST NEEDLE (22X36X2) - $5.18
3
  • PIPE, LUBRICATION - $9.85
23
  • O-RING (20.7X2.4) - $1.93
16
  • CIRCLIP, OUTER (24MM) - $1.81
11
  • FLANGE, PITOT - $19.31
13
  • BOLT (8X60) - $3.83
7
  • SPROCKET, OIL PUMP DRIVEN - $9.62
15
  • SHIM H (22X28) (2.40) - $4.80
  • SHIM D (22X28) (1.40) - $4.80
  • SHIM F (22X28) (1.90) - $4.80
  • SHIM E (22X28) (1.65) - $4.80
  • SHIM G (22X28) (2.15) - $4.80
  • SHIM C (22X28) (1.15) - $4.78
25
  • BOLT, FLANGE (6X12) - $0.72
14
  • WASHER, THRUST (22X35X1.5) - $2.59
26
  • BOLT, FLANGE (6X16) - $0.64
24
  • CIRCLIP, OUTER (12MM) - $0.79
6
  • PUMP, OIL - $116.54
19
  • PIN, DOWEL (18X10) - $2.50
27
  • BOLT, FLANGE (6X45) - $0.86
27
  • BOLT, FLANGE (6X45) - $0.86
27
  • BOLT, FLANGE (6X45) - $0.86
14
  • WASHER, THRUST (22X35X1.5) - $2.59
5
  • SPROCKET, OIL PUMP DRIVEN - $21.25
12
  • STAY, PITOT PIPE - $3.02
17
  • CIRCLIP, OUTER (22MM) - $1.81
1
  • PIPE (35MM) - $2.08
21
  • O-RING (12.8X1.9) (NOK) - $1.79
25
  • BOLT, FLANGE (6X12) - $0.72
10
  • PIPE, PITOT LUBRICATION - $7.92
9
  • PIPE, PITOT - $9.85
4
  • HUB, DRIVE SPROCKET - $21.37
22
  • O-RING (9.8X1.9) (ARAI) - $1.22
8
  • CHAIN, OIL PUMP DRIVE - $16.30
23
  • O-RING (20.7X2.4) - $1.93
2
  • PIPE, OIL PASSAGE - $21.70
18
  • PIN, DOWEL (22X10) - $2.50
1
  • PIPE (35MM) - $2.08
28
  • BOLT, FLANGE (6X60) - $0.86
No. Part # Part # / Description Qty Req. List Price Price
1 22749-PW4-000 22749-PW4-000 / PIPE (35MM)

2 $2.88 $2.08
2 22760-P4V-010 22760-P4V-010 / PIPE, OIL PASSAGE

1 $30.13 $21.70
3 22791-P4V-000 22791-P4V-000 / PIPE, LUBRICATION

1 $13.68 $9.85
4 23954-PLY-000 23954-PLY-000 / HUB, DRIVE SPROCKET

1 $29.68 $21.37
5 25010-P4V-305 25010-P4V-305 / SPROCKET, OIL PUMP DRIVEN

1 $29.52 $21.25
6 25100-P4V-345 25100-P4V-345 / PUMP, OIL

1 $161.87 $116.54
7 25161-P4V-000 25161-P4V-000 / SPROCKET, OIL PUMP DRIVEN

1 $13.37 $9.62
8 25165-PLY-003 25165-PLY-003 / CHAIN, OIL PUMP DRIVE

1 $22.63 $16.30
9 25311-P4V-000 25311-P4V-000 / PIPE, PITOT

1 $13.68 $9.85
10 25321-P4V-000 25321-P4V-000 / PIPE, PITOT LUBRICATION

1 $11.00 $7.92
11 25331-P4V-000 25331-P4V-000 / FLANGE, PITOT

1 $26.82 $19.31
12 25335-P4V-000 25335-P4V-000 / STAY, PITOT PIPE

1 $4.20 $3.02
13 90002-P4V-000 90002-P4V-000 / BOLT (8X60)

1 $5.32 $3.83
14 90402-PLY-000 90402-PLY-000 / WASHER, THRUST (22X35X1.5)

2 $3.60 $2.59
15 90578-P4V-000 90578-P4V-000 / SHIM H (22X28) (2.40)

1 $6.67 $4.80
15 90574-P4V-000 90574-P4V-000 / SHIM D (22X28) (1.40)

1 $6.67 $4.80
15 90576-P4V-000 90576-P4V-000 / SHIM F (22X28) (1.90)

1 $6.67 $4.80
15 90575-P4V-000 90575-P4V-000 / SHIM E (22X28) (1.65)

1 $6.67 $4.80
15 90577-P4V-000 90577-P4V-000 / SHIM G (22X28) (2.15)

1 $6.67 $4.80
15 90573-P4V-000 90573-P4V-000 / SHIM C (22X28) (1.15)

1 $6.63 $4.78
16 90607-P4V-000 90607-P4V-000 / CIRCLIP, OUTER (24MM)

1 $2.52 $1.81
17 90609-P4V-000 90609-P4V-000 / CIRCLIP, OUTER (22MM)

1 $2.52 $1.81
18 90703-P4V-000 90703-P4V-000 / PIN, DOWEL (22X10)

1 $3.47 $2.50
19 90704-P4V-000 90704-P4V-000 / PIN, DOWEL (18X10)

1 $3.47 $2.50
20 91131-PLY-005 91131-PLY-005 / BEARING, THRUST NEEDLE (22X36X2)

1 $7.20 $5.18
21 91307-PK4-003 91307-PK4-003 / O-RING (12.8X1.9) (NOK)

1 $2.48 $1.79
22 91317-P4V-004 91317-P4V-004 / O-RING (9.8X1.9) (ARAI)

1 $1.70 $1.22
23 91327-P4V-003 91327-P4V-003 / O-RING (20.7X2.4)

2 $2.68 $1.93
24 94510-12000 94510-12000 / CIRCLIP, OUTER (12MM)

1 $1.10 $0.79
25 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

4 $1.00 $0.72
26 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.64
27 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

3 $1.20 $0.86
28 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

2 $1.20 $0.86
