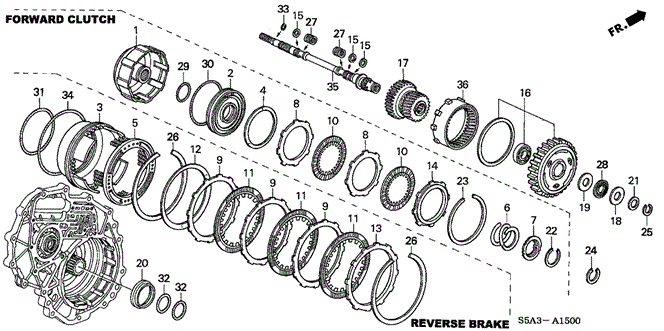

SHAFT, INPUT in TRANSMISSION - AUTOMATIC/CVT INPUT SHAFT - FORWARD CLUTCH for 2001 Honda CIVIC SEDAN

SHAFT, INPUT in TRANSMISSION - AUTOMATIC/CVT INPUT SHAFT - FORWARD CLUTCH for 2001 Honda CIVIC SEDAN #1
8
  • PLATE, CLUTCH (110MM) - $12.83
18
  • WASHER, THRUST (25X41.5X2.5) - $3.38
4
  • SPRING, SECOND CLUTCH DISK - $3.34
26
  • CIRCLIP, INNER (150MM) - $4.46
24
  • CIRCLIP, OUTER (35MM) - $2.26
27
  • BEARING, NEEDLE (20X24X17) - $10.33
36
  • GEAR, RING - $70.58
11
  • DISK, REVERSE BRAKE - $17.22
14
  • PLATE, CLUTCH END (16) (3.6MM) - $17.34
  • PLATE, CLUTCH END (21) (4.1MM) - $17.34
  • PLATE, CLUTCH END (20) (4.0MM) - $17.34
  • PLATE, CLUTCH END (14) (3.4MM) - $17.34
  • PLATE, CLUTCH END (22) (4.2MM) - $17.34
  • PLATE, CLUTCH END (27) (4.7MM) - $17.34
  • PLATE, CLUTCH END (17) (3.7MM) - $17.34
  • PLATE, CLUTCH END (19) (3.9MM) - $17.34
  • PLATE, CLUTCH END (26) (4.6MM) - $17.34
  • PLATE, CLUTCH END (15) (3.5MM) - $17.34
  • PLATE, CLUTCH END (24) (4.4MM) - $17.34
  • PLATE, CLUTCH END (18) (3.8MM) - $17.34
  • PLATE, CLUTCH END (25) (4.5MM) - $17.34
  • PLATE, CLUTCH END (23) (4.3MM) - $17.34
11
  • DISK, REVERSE BRAKE - $17.22
34
  • O-RING (135X2.5) (ARAI) - $5.57
15
  • RING, SEAL - $5.26
22
  • CIRCLIP (OUTER) (40MM) - $2.58
7
  • SEAT, CLUTCH SPRING - $3.38
19
  • WASHER, THRUST (25X41.5X1) - $3.94
9
  • PLATE, REVERSE BRAKE - $6.46
23
  • RING, SNAP (119MM) - $6.53
10
  • DISK, CLUTCH - $17.22
13
  • PLATE, REVERSE BRAKE END (8) (5.0MM) - $17.34
  • PLATE, REVERSE BRAKE END (1) (3.6MM) - $17.34
  • PLATE, REVERSE BRAKE END (3) (4.0MM) - $17.34
  • PLATE, REVERSE BRAKE END (5) (4.4MM) - $17.34
  • PLATE, REVERSE BRAKE END (6) (4.6MM) - $17.34
  • PLATE, REVERSE BRAKE END (4) (4.2MM) - $17.34
  • PLATE, REVERSE BRAKE END (7) (4.8MM) - $17.34
  • PLATE, REVERSE BRAKE END (2) (3.8MM) - $17.34
3
  • PISTON, REVERSE BRAKE - $57.38
5
  • SPRING, REVERSE RETURN - $28.88
1
  • GUIDE, FORWARD CLUTCH - $161.51
8
  • PLATE, CLUTCH (110MM) - $12.83
29
  • O-RING (39.8X2.2) (ARAI) - $2.22
30
  • O-RING (104X2.2) (NOK) - $3.83
15
  • RING, SEAL - $5.26
26
  • CIRCLIP, INNER (150MM) - $4.46
28
  • BEARING, THRUST NEEDLE (25X24X17) - $10.86
35
  • SHAFT, INPUT - $164.63
25
  • CIRCLIP, OUTER (25MM) - $2.26
32
  • O-RING (31.2X1.9) (ARAI) - $1.93
11
  • DISK, REVERSE BRAKE - $17.22
16
  • GEAR, PLANETARY - $156.95
12
  • SPRING, REVERSE BRAKE DISK - $19.31
17
  • GEAR, SUN - $68.46
31
  • O-RING (92X2.2) - $4.66
6
  • SPRING, CLUTCH RETURN - $13.57
33
  • RING, SEAL - $2.50
15
  • RING, SEAL - $5.26
21
  • SHIM E (25X31) (1.33) - $4.78
  • SHIM D (25X31) (1.26) - $4.78
  • SHIM I (25X31) (1.61) - $4.78
  • SHIM H (25X31) (1.54) - $4.78
  • SHIM C (25X31) (1.19) - $4.78
  • SHIM P (25X31) (1.29) - $5.17
  • SHIM V (25X31) (1.71) - $5.17
  • SHIM U (25X31) (1.64) - $5.17
  • SHIM M (25X31) (1.08) - $5.17
  • SHIM T (25X31) (1.57) - $5.17
  • SHIM S (25X31) (1.50) - $5.17
  • SHIM W (25X31) (1.78) - $5.17
  • SHIM O (25X31) (1.22) - $5.17
  • SHIM R (25X31) (1.43) - $5.17
  • SHIM A (25X31) (1.05) - $4.78
  • SHIM B (25X31) (1.12) - $4.78
  • SHIM L (25X31) (1.82) - $4.78
  • SHIM Q (25X31) (1.36) - $5.17
  • SHIM K (25X31) (1.75) - $4.78
  • SHIM N (25X31) (1.15) - $5.17
  • SHIM G (25X31) (1.47) - $4.78
  • SHIM J (25X31) (1.68) - $4.78
  • SHIM F (25X31) (1.40) - $4.78
10
  • DISK, CLUTCH - $17.22
32
  • O-RING (31.2X1.9) (ARAI) - $1.93
9
  • PLATE, REVERSE BRAKE - $6.46
9
  • PLATE, REVERSE BRAKE - $6.46
20
  • RETAINER, CIRCLIP - $3.10
2
  • PISTON, LOW CLUTCH - $53.82
27
  • BEARING, NEEDLE (20X24X17) - $10.33
No. Part # Part # / Description Qty Req. List Price Price
1 22511-P4V-003 22511-P4V-003 / GUIDE, FORWARD CLUTCH

1 $224.32 $161.51
2 22520-P24-J00 22520-P24-J00 / PISTON, LOW CLUTCH

1 $74.75 $53.82
3 22533-P4V-000 22533-P4V-000 / PISTON, REVERSE BRAKE

1 $79.70 $57.38
4 22537-PFF-003 22537-PFF-003 / SPRING, SECOND CLUTCH DISK

1 $4.63 $3.34
5 22540-P4V-000 22540-P4V-000 / SPRING, REVERSE RETURN

1 $40.12 $28.88
6 22541-PC9-000 22541-PC9-000 / SPRING, CLUTCH RETURN

1 $18.85 $13.57
7 22542-PA9-000 22542-PA9-000 / SEAT, CLUTCH SPRING

1 $4.70 $3.38
8 22543-PC9-000 22543-PC9-000 / PLATE, CLUTCH (110MM)

2 $17.82 $12.83
9 22544-PLY-003 22544-PLY-003 / PLATE, REVERSE BRAKE

3 $8.97 $6.46
10 22544-P24-J00 22544-P24-J00 / DISK, CLUTCH

2 $23.92 $17.22
11 22545-P4V-013 22545-P4V-013 / DISK, REVERSE BRAKE

3 $23.92 $17.22
12 22546-P4V-020 22546-P4V-020 / SPRING, REVERSE BRAKE DISK

1 $26.82 $19.31
13 22558-P4V-003 22558-P4V-003 / PLATE, REVERSE BRAKE END (8) (5.0MM)

1 $24.08 $17.34
13 22551-P4V-003 22551-P4V-003 / PLATE, REVERSE BRAKE END (1) (3.6MM)

1 $24.08 $17.34
13 22553-P4V-003 22553-P4V-003 / PLATE, REVERSE BRAKE END (3) (4.0MM)

1 $24.08 $17.34
13 22555-P4V-003 22555-P4V-003 / PLATE, REVERSE BRAKE END (5) (4.4MM)

1 $24.08 $17.34
13 22556-P4V-003 22556-P4V-003 / PLATE, REVERSE BRAKE END (6) (4.6MM)

1 $24.08 $17.34
13 22554-P4V-003 22554-P4V-003 / PLATE, REVERSE BRAKE END (4) (4.2MM)

1 $24.08 $17.34
13 22557-P4V-003 22557-P4V-003 / PLATE, REVERSE BRAKE END (7) (4.8MM)

1 $24.08 $17.34
13 22552-P4V-003 22552-P4V-003 / PLATE, REVERSE BRAKE END (2) (3.8MM)

1 $24.08 $17.34
14 22562-P4V-003 22562-P4V-003 / PLATE, CLUTCH END (16) (3.6MM)

1 $24.08 $17.34
14 22567-P4V-003 22567-P4V-003 / PLATE, CLUTCH END (21) (4.1MM)

1 $24.08 $17.34
14 22566-P4V-003 22566-P4V-003 / PLATE, CLUTCH END (20) (4.0MM)

1 $24.08 $17.34
14 22574-P4V-003 22574-P4V-003 / PLATE, CLUTCH END (14) (3.4MM)

1 $24.08 $17.34
14 22568-P4V-003 22568-P4V-003 / PLATE, CLUTCH END (22) (4.2MM)

1 $24.08 $17.34
14 22573-P4V-003 22573-P4V-003 / PLATE, CLUTCH END (27) (4.7MM)

1 $24.08 $17.34
14 22563-P4V-003 22563-P4V-003 / PLATE, CLUTCH END (17) (3.7MM)

1 $24.08 $17.34
14 22565-P4V-003 22565-P4V-003 / PLATE, CLUTCH END (19) (3.9MM)

1 $24.08 $17.34
14 22572-P4V-003 22572-P4V-003 / PLATE, CLUTCH END (26) (4.6MM)

1 $24.08 $17.34
14 22561-P4V-003 22561-P4V-003 / PLATE, CLUTCH END (15) (3.5MM)

1 $24.08 $17.34
14 22570-P4V-003 22570-P4V-003 / PLATE, CLUTCH END (24) (4.4MM)

1 $24.08 $17.34
14 22564-P4V-003 22564-P4V-003 / PLATE, CLUTCH END (18) (3.8MM)

1 $24.08 $17.34
14 22571-P4V-003 22571-P4V-003 / PLATE, CLUTCH END (25) (4.5MM)

1 $24.08 $17.34
14 22569-P4V-003 22569-P4V-003 / PLATE, CLUTCH END (23) (4.3MM)

1 $24.08 $17.34
15 22816-P4V-003 22816-P4V-003 / RING, SEAL

3 $7.30 $5.26
16 23500-PLY-000 23500-PLY-000 / GEAR, PLANETARY

1 $217.98 $156.95
17 23511-PLY-000 23511-PLY-000 / GEAR, SUN

1 $95.08 $68.46
18 90403-PLY-000 90403-PLY-000 / WASHER, THRUST (25X41.5X2.5)

1 $4.70 $3.38
19 90405-P4V-000 90405-P4V-000 / WASHER, THRUST (25X41.5X1)

1 $5.47 $3.94
20 90436-P4V-000 90436-P4V-000 / RETAINER, CIRCLIP

1 $4.30 $3.10
21 90455-P4V-000 90455-P4V-000 / SHIM E (25X31) (1.33)

1 $6.63 $4.78
21 90454-P4V-000 90454-P4V-000 / SHIM D (25X31) (1.26)

1 $6.63 $4.78
21 90459-P4V-000 90459-P4V-000 / SHIM I (25X31) (1.61)

1 $6.63 $4.78
21 90458-P4V-000 90458-P4V-000 / SHIM H (25X31) (1.54)

1 $6.63 $4.78
21 90453-P4V-000 90453-P4V-000 / SHIM C (25X31) (1.19)

1 $6.63 $4.78
21 90483-P4V-000 90483-P4V-000 / SHIM P (25X31) (1.29)

1 $7.18 $5.17
21 90489-P4V-000 90489-P4V-000 / SHIM V (25X31) (1.71)

1 $7.18 $5.17
21 90488-P4V-000 90488-P4V-000 / SHIM U (25X31) (1.64)

1 $7.18 $5.17
21 90480-P4V-000 90480-P4V-000 / SHIM M (25X31) (1.08)

1 $7.18 $5.17
21 90487-P4V-000 90487-P4V-000 / SHIM T (25X31) (1.57)

1 $7.18 $5.17
21 90486-P4V-000 90486-P4V-000 / SHIM S (25X31) (1.50)

1 $7.18 $5.17
21 90490-P4V-000 90490-P4V-000 / SHIM W (25X31) (1.78)

1 $7.18 $5.17
21 90482-P4V-000 90482-P4V-000 / SHIM O (25X31) (1.22)

1 $7.18 $5.17
21 90485-P4V-000 90485-P4V-000 / SHIM R (25X31) (1.43)

1 $7.18 $5.17
21 90451-P4V-000 90451-P4V-000 / SHIM A (25X31) (1.05)

1 $6.63 $4.78
21 90452-P4V-000 90452-P4V-000 / SHIM B (25X31) (1.12)

1 $6.63 $4.78
21 90462-P4V-000 90462-P4V-000 / SHIM L (25X31) (1.82)

1 $6.63 $4.78
21 90484-P4V-000 90484-P4V-000 / SHIM Q (25X31) (1.36)

1 $7.18 $5.17
21 90461-P4V-000 90461-P4V-000 / SHIM K (25X31) (1.75)

1 $6.63 $4.78
21 90481-P4V-000 90481-P4V-000 / SHIM N (25X31) (1.15)

1 $7.18 $5.17
21 90457-P4V-000 90457-P4V-000 / SHIM G (25X31) (1.47)

1 $6.63 $4.78
21 90460-P4V-000 90460-P4V-000 / SHIM J (25X31) (1.68)

1 $6.63 $4.78
21 90456-P4V-000 90456-P4V-000 / SHIM F (25X31) (1.40)

1 $6.63 $4.78
22 90603-PA9-000 90603-PA9-000 / CIRCLIP (OUTER) (40MM)

1 $3.58 $2.58
23 90605-PC9-000 90605-PC9-000 / RING, SNAP (119MM)

1 $9.07 $6.53
24 90606-P4V-000 90606-P4V-000 / CIRCLIP, OUTER (35MM)

1 $3.13 $2.26
25 90612-P4V-000 90612-P4V-000 / CIRCLIP, OUTER (25MM)

1 $3.13 $2.26
26 90613-P4V-000 90613-P4V-000 / CIRCLIP, INNER (150MM)

2 $6.20 $4.46
27 91104-P4V-013 91104-P4V-013 / BEARING, NEEDLE (20X24X17)

2 $14.35 $10.33
28 91131-P4V-003 91131-P4V-003 / BEARING, THRUST NEEDLE (25X24X17)

1 $15.08 $10.86
29 91302-PA9-003 91302-PA9-003 / O-RING (39.8X2.2) (ARAI)

1 $3.08 $2.22
30 91303-PC9-004 91303-PC9-004 / O-RING (104X2.2) (NOK)

1 $5.32 $3.83
31 91304-P4V-004 91304-P4V-004 / O-RING (92X2.2)

1 $6.47 $4.66
32 91307-PA9-003 91307-PA9-003 / O-RING (31.2X1.9) (ARAI)

2 $2.68 $1.93
33 91311-P4V-004 91311-P4V-004 / RING, SEAL

1 $3.47 $2.50
34 91312-P4V-004 91312-P4V-004 / O-RING (135X2.5) (ARAI)

1 $7.73 $5.57
35 23210-PLY-000 23210-PLY-000 / SHAFT, INPUT

1 $228.65 $164.63
36 23531-PLY-000 23531-PLY-000 / GEAR, RING

1 $98.03 $70.58
