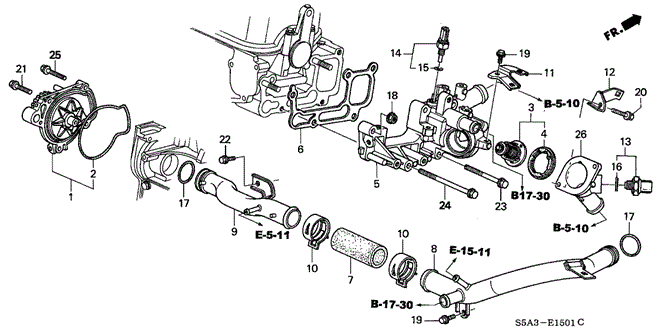

PASSAGE, WATER in ENGINE/WATER PUMP - SENSOR (2) for 2001 Honda CIVIC SEDAN

PASSAGE, WATER in ENGINE/WATER PUMP - SENSOR (2) for 2001 Honda CIVIC SEDAN #1
13
  • SWITCH ASSY., THERMO (A-93) (NIPPON THERMOSTAT) - $40.22
17
  • O-RING (27.6X4.1) - $1.96
9
  • PIPE A, CONNECTING - $26.46
21
  • BOLT, FLANGE (6X22) - $0.71
5
  • PASSAGE, WATER - $202.04
23
  • BOLT, FLANGE (8X50) - $0.98
25
  • BOLT, FLANGE (6X30) - $0.74
22
  • BOLT, FLANGE (8X12) - $0.71
8
  • PIPE B, CONNECTING - $23.56
11
  • STAY G, ENGINE HARNESS - $1.91
4
  • RUBBER, THERMOSTAT MOUNTING - $2.76
18
  • NUT, FLANGE (8MM) - $0.18
3
  • THERMOSTAT ASSY. (FUJI THOMPSON) - $17.63
  • THERMOSTAT ASSY. (NIPPON THERMOSTAT) - $17.88
17
  • O-RING (27.6X4.1) - $1.96
19
  • BOLT, FLANGE (6X12) - $0.72
6
  • GASKET, FR. WATER PASSAGE (ISHINO GASKET) - $4.08
  • GASKET, FR. WATER PASSAGE (NIPPON LEAKLESS) - $2.99
12
  • STAY J, ENGINE WIRE HARNESS - $26.15
14
  • SENSOR ASSY., WATER TEMPERATURE (MATSUSHITA) - $29.47
10
  • CLIP, WATER HOSE (CHUO SPRING) - $5.03
16
  • O-RING (17.8X1.4) - $1.15
1
  • WATER PUMP - $64.61
24
  • BOLT, FLANGE (8X70) - $1.12
15
  • O-RING (9.5X1.9) (PANASONIC) - $1.46
10
  • CLIP, WATER HOSE (CHUO SPRING) - $5.03
26
  • COVER, THERMOSTAT - $33.13
7
  • HOSE, CONNECTING PIPE - $4.12
20
  • BOLT, FLANGE (6X20) - $0.16
2
  • O-RING, WATER PUMP - $2.10
19
  • BOLT, FLANGE (6X12) - $0.72
No. Part # Part # / Description Qty Req. List Price Price
1 19200-PLM-A01 19200-PLM-A01 / WATER PUMP

1 $89.73 $64.61
2 19222-PDF-E00 19222-PDF-E00 / O-RING, WATER PUMP

1 $2.92 $2.10
3 19301-PLC-315 19301-PLC-315 / THERMOSTAT ASSY. (FUJI THOMPSON)

1 $24.48 $17.63
3 19301-PAA-306 19301-PAA-306 / THERMOSTAT ASSY. (NIPPON THERMOSTAT)

1 $24.83 $17.88
4 19305-PLC-A00 19305-PLC-A00 / RUBBER, THERMOSTAT MOUNTING

1 $3.83 $2.76
5 19410-PMS-A01 19410-PMS-A01 / PASSAGE, WATER

1 $280.62 $202.04
6 19411-PLC-003 19411-PLC-003 / GASKET, FR. WATER PASSAGE (ISHINO GASKET)

1 $5.67 $4.08
6 19411-PLC-004 19411-PLC-004 / GASKET, FR. WATER PASSAGE (NIPPON LEAKLESS)

1 $4.15 $2.99
7 19503-PLC-000 19503-PLC-000 / HOSE, CONNECTING PIPE

1 $5.72 $4.12
8 19504-PMS-A00 19504-PMS-A00 / PIPE B, CONNECTING

1 $32.72 $23.56
9 19505-PMS-A00 19505-PMS-A00 / PIPE A, CONNECTING

1 $36.75 $26.46
10 19511-PA6-003 19511-PA6-003 / CLIP, WATER HOSE (CHUO SPRING)

2 $6.98 $5.03
11 32747-PLC-000 32747-PLC-000 / STAY G, ENGINE HARNESS

1 $2.65 $1.91
12 32749-PLC-000 32749-PLC-000 / STAY J, ENGINE WIRE HARNESS

1 $36.32 $26.15
13 37760-P00-003 37760-P00-003 / SWITCH ASSY., THERMO (A-93) (NIPPON THERMOSTAT)

1 $55.87 $40.22
14 37870-PLC-004 37870-PLC-004 / SENSOR ASSY., WATER TEMPERATURE (MATSUSHITA)

1 $40.93 $29.47
15 91307-PLC-004 91307-PLC-004 / O-RING (9.5X1.9) (PANASONIC)

1 $2.03 $1.46
16 91307-PN3-000 91307-PN3-000 / O-RING (17.8X1.4)

1 $1.60 $1.15
17 91314-634-000 91314-634-000 / O-RING (27.6X4.1)

2 $2.72 $1.96
18 94050-08080 94050-08080 / NUT, FLANGE (8MM)

2 $0.25 $0.18
19 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.72
20 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.16
21 95701-06022-08 95701-06022-08 / BOLT, FLANGE (6X22)

1 $0.98 $0.71
22 95701-08012-08 95701-08012-08 / BOLT, FLANGE (8X12)

1 $0.98 $0.71
23 95701-08050-08 95701-08050-08 / BOLT, FLANGE (8X50)

2 $1.37 $0.98
24 95701-08070-08 95701-08070-08 / BOLT, FLANGE (8X70)

1 $1.55 $1.12
25 95801-06030-08 95801-06030-08 / BOLT, FLANGE (6X30)

3 $1.03 $0.74
26 19311-PLC-000 19311-PLC-000 / COVER, THERMOSTAT

1 $46.02 $33.13
