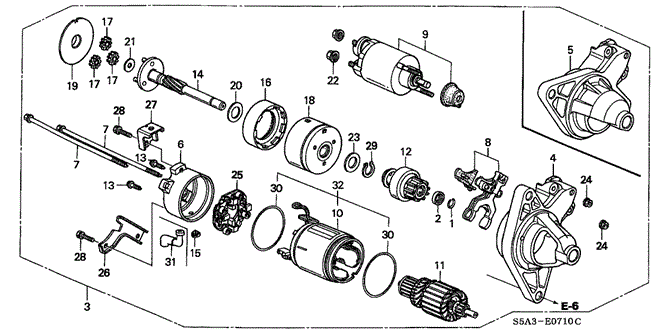

STARTER MOTOR ASSY. (DSDH7) (DENSO) in ENGINE/STARTER MOTOR (DENSO) for 2001 Honda CIVIC SEDAN

STARTER MOTOR ASSY. (DSDH7) (DENSO) in ENGINE/STARTER MOTOR (DENSO) for 2001 Honda CIVIC SEDAN #1
26
  • STAY, ENGINE HARNESS - $3.46
23
  • WASHER C - $2.98
31
  • TUBE - $1.84
8
  • LEVER, PINION DRIVE - $15.11
28
  • BOLT-WASHER - $15.90
6
  • END FRAME, COMMUTATOR - $31.33
19
  • PLATE, SEAL - $4.39
13
  • SCREW, PAN (4MM) - $1.50
18
  • SHOCK ABSORBER - $10.19
32
  • YOKE - $124.26
14
  • SHAFT, DRIVE - $152.64
30
  • O-RING - $2.29
29
  • CIRCLIP (OUTER) (15MM) - $0.49
17
  • GEAR, PLANETARY - $17.80
24
  • NUT, HEX. - $1.50
17
  • GEAR, PLANETARY - $17.80
30
  • O-RING - $2.29
25
  • PLATE, BRUSH HOLDER - $38.48
9
  • SWITCH, MAGNETIC - $68.06
7
  • BOLT, THROUGH (DENSO) - $4.99
10
  • YOKE - $124.26
11
  • ARMATURE - $272.03
16
  • GEAR ASSY. (INNER) - $34.76
17
  • GEAR, PLANETARY - $17.80
13
  • SCREW, PAN (4MM) - $1.50
7
  • BOLT, THROUGH (DENSO) - $4.99
20
  • WASHER A - $2.38
3
  • STARTER MOTOR ASSY. (DSDH7) (DENSO) - $461.58
  • STARTER, CORE ID (9722809-999)(228000-9990) (RMD) - $263.63
12
  • CLUTCH ASSY., OVERRUNNING - $198.44
4
  • HOUSING, DRIVE SIDE - $57.62
1
  • RING, SNAP (DENSO) - $1.26
21
  • WASHER B - $2.38
2
  • COLLAR, CLUTCH STOP - $3.12
  • COLLAR, CLUTCH STOP - $3.12
22
  • NUT, HEX. (8MM) - $1.40
24
  • NUT, HEX. - $1.50
28
  • BOLT-WASHER - $15.90
No. Part # Part # / Description Qty Req. List Price Price
1 30201-PH9-004 30201-PH9-004 / RING, SNAP (DENSO)

1 $1.75 $1.26
2 30202-RYE-003 30202-RYE-003 / COLLAR, CLUTCH STOP

1 $4.33 $3.12
2 30202-RYE-003 30202-RYE-003 / COLLAR, CLUTCH STOP

1 $4.33 $3.12
3 31200-PMS-013 31200-PMS-013 / STARTER MOTOR ASSY. (DSDH7) (DENSO)

1 $641.08 $461.58
3 06312-PMS-505RM 06312-PMS-505RM / STARTER, CORE ID (9722809-999)(228000-9990) (RMD)1

1 $366.15 $263.63
4 31201-PMS-003 31201-PMS-003 / HOUSING, DRIVE SIDE

1 $80.03 $57.62
6 31202-PLR-A02 31202-PLR-A02 / END FRAME, COMMUTATOR

1 $43.52 $31.33
7 31202-PR4-003 31202-PR4-003 / BOLT, THROUGH (DENSO)

2 $6.93 $4.99
8 31203-PCA-003 31203-PCA-003 / LEVER, PINION DRIVE

1 $20.98 $15.11
9 31204-PLR-A01 31204-PLR-A01 / SWITCH, MAGNETIC

1 $94.53 $68.06
32 31205-PMS-003 31205-PMS-003 / YOKE

1 $172.58 $124.26
11 31206-P3F-A51 31206-P3F-A51 / ARMATURE

1 $377.82 $272.03
12 31207-P3F-003 31207-P3F-003 / CLUTCH ASSY., OVERRUNNING

1 $275.62 $198.44
13 31208-P3F-003 31208-P3F-003 / SCREW, PAN (4MM)

2 $2.08 $1.50
14 31213-P3F-003 31213-P3F-003 / SHAFT, DRIVE

1 $212.00 $152.64
16 31214-P3F-003 31214-P3F-003 / GEAR ASSY. (INNER)

1 $48.28 $34.76
17 31215-P3F-003 31215-P3F-003 / GEAR, PLANETARY

3 $24.72 $17.80
18 31216-P3F-003 31216-P3F-003 / SHOCK ABSORBER

1 $14.15 $10.19
19 31217-P3F-003 31217-P3F-003 / PLATE, SEAL

1 $6.10 $4.39
20 31218-P3F-003 31218-P3F-003 / WASHER A

1 $3.30 $2.38
21 31219-P3F-003 31219-P3F-003 / WASHER B

1 $3.30 $2.38
22 31220-PH9-004 31220-PH9-004 / NUT, HEX. (8MM)

1 $1.95 $1.40
23 31220-P3F-003 31220-P3F-003 / WASHER C

1 $4.13 $2.98
24 31223-PA0-006 31223-PA0-006 / NUT, HEX.

2 $2.08 $1.50
25 31231-P3F-003 31231-P3F-003 / PLATE, BRUSH HOLDER

1 $53.45 $38.48
26 31291-PMS-003 31291-PMS-003 / STAY, ENGINE HARNESS

1 $4.80 $3.46
28 31292-PLR-A01 31292-PLR-A01 / BOLT-WASHER

1 $22.08 $15.90
29 94510-15000 94510-15000 / CIRCLIP (OUTER) (15MM)

1 $0.68 $0.49
30 31228-PLR-A01 31228-PLR-A01 / O-RING

2 $3.18 $2.29
31 31258-P5G-003 31258-P5G-003 / TUBE

1 $2.55 $1.84
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
