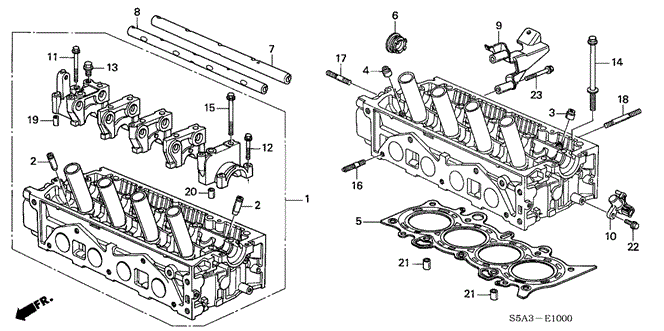

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (SOHC) for 2001 Honda CIVIC SEDAN

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (SOHC) for 2001 Honda CIVIC SEDAN #1
16
  • BOLT, STUD (8X38) - $2.04
2
  • GUIDE, VALVE (OVER SIZE) - $7.30
13
  • BOLT, SEALING (10MM) - $2.86
5
  • GASKET, CYLINDER HEAD (NIPPON LEAKLESS) - $30.97
9
  • STAY, RESONATOR - $19.21
3
  • SEAL A, VALVE STEM (ARAI) - $1.15
  • SEAL A, VALVE STEM (NOK) - $1.15
17
  • BOLT, STUD (8X32) - $0.94
12
  • BOLT, FLANGE (6X35) - $1.82
  • BOLT, FLANGE (6X35) - $1.82
18
  • BOLT, STUD (8X25) - $0.89
10
  • SENSOR ASSY., TDC CYLINDER - $45.31
21
  • PIN, DOWEL (14X20) - $0.98
11
  • BOLT, FLANGE (6X50) - $1.73
15
  • BOLT, FLANGE (8X80) - $2.45
7
  • SHAFT, IN. ROCKER ARM - $50.47
23
  • BOLT, SPL (6X49) - $1.76
1
  • CYLINDER HEAD ASSY. - $1,000.88
14
  • BOLT-WASHER (10X140) (SAGA) - $4.70
20
  • PIN, DOWEL (10X16) - $0.96
2
  • GUIDE, VALVE (OVER SIZE) - $7.30
8
  • SHAFT, EX. ROCKER ARM - $41.75
19
  • PIN, DOWEL (8X14) - $0.84
6
  • PLUG, CYLINDER HEAD - $6.07
21
  • PIN, DOWEL (14X20) - $0.98
4
  • SEAL B, VALVE STEM (NOK) - $1.15
22
  • BOLT, FLANGE (6X16) - $0.64
No. Part # Part # / Description Qty Req. List Price Price
1 12100-PMS-A00 12100-PMS-A00 / CYLINDER HEAD ASSY.

1 $1,283.19 $1,000.88
2 12204-PJ7-305 12204-PJ7-305 / GUIDE, VALVE (OVER SIZE)

16 $10.13 $7.30
3 12210-PZ1-004 12210-PZ1-004 / SEAL A, VALVE STEM (ARAI)

8 $1.75 $1.15
3 12210-PZ1-004 12210-PZ1-004 / SEAL A, VALVE STEM (NOK)

8 $1.75 $1.15
4 12211-PZ1-004 12211-PZ1-004 / SEAL B, VALVE STEM (NOK)

8 $1.75 $1.15
5 12251-PLC-004 12251-PLC-004 / GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

1 $43.02 $30.97
6 12513-P72-003 12513-P72-003 / PLUG, CYLINDER HEAD

1 $8.43 $6.07
7 14631-P2A-000 14631-P2A-000 / SHAFT, IN. ROCKER ARM

1 $70.10 $50.47
8 14633-P2A-000 14633-P2A-000 / SHAFT, EX. ROCKER ARM

1 $57.98 $41.75
9 17233-PLC-000 17233-PLC-000 / STAY, RESONATOR

1 $26.68 $19.21
10 37840-RJH-006 37840-RJH-006 / SENSOR ASSY., TDC CYLINDER

1 $62.93 $45.31
11 90004-PT0-000 90004-PT0-000 / BOLT, FLANGE (6X50)

2 $2.40 $1.73
12 90003-PT2-000 90003-PT2-000 / BOLT, FLANGE (6X35)

2 $2.53 $1.82
12 90004-PT2-000 90004-PT2-000 / BOLT, FLANGE (6X35)

2 $2.53 $1.82
13 90004-P2J-000 90004-P2J-000 / BOLT, SEALING (10MM)

1 $3.97 $2.86
14 90005-PM3-003 90005-PM3-003 / BOLT-WASHER (10X140) (SAGA)

10 $6.53 $4.70
15 90007-P08-000 90007-P08-000 / BOLT, FLANGE (8X80)

10 $3.40 $2.45
16 90026-PT0-000 90026-PT0-000 / BOLT, STUD (8X38)

3 $2.83 $2.04
17 92900-08032-1B 92900-08032-1B / BOLT, STUD (8X32)

2 $1.30 $0.94
18 92900-08025-1B 92900-08025-1B / BOLT, STUD (8X25)

3 $1.23 $0.89
19 94301-08140 94301-08140 / PIN, DOWEL (8X14)

1 $1.17 $0.84
20 94301-10160 94301-10160 / PIN, DOWEL (10X16)

9 $1.33 $0.96
21 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
22 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.64
23 90006-PMS-A00 90006-PMS-A00 / BOLT, SPL (6X49)

2 $2.45 $1.76
