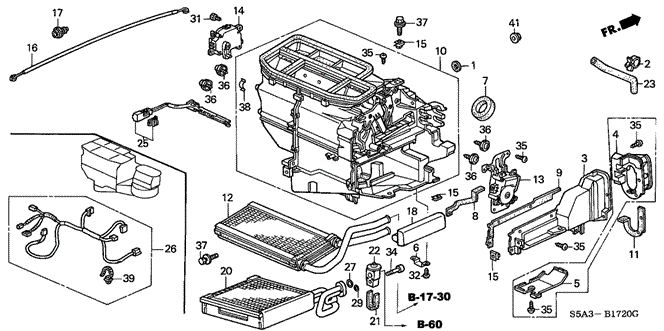

HEATER SUB-ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2001 Honda CIVIC SEDAN

HEATER SUB-ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2001 Honda CIVIC SEDAN #1
4
  • COVER, FLANGE - $2.89
5
  • COVER, FOOT DUCT - $4.51
34
  • BOLT, SOCKET (5X40) - $2.16
27
  • O-RING (5/8") - $2.39
  • O-RING (5/8") - $2.39
1
  • GASKET, HEATER - $1.38
36
  • SCREW-WASHER (4X16) - $1.40
13
  • MOTOR ASSY., MODE - $56.84
36
  • SCREW-WASHER (4X16) - $1.40
36
  • SCREW-WASHER (4X16) - $1.40
35
  • SCREW, TAPPING (4X16) - $1.30
35
  • SCREW, TAPPING (4X16) - $1.30
32
  • SCREW, TAPPING (4X12) - $2.03
35
  • SCREW, TAPPING (4X16) - $1.30
15
  • NUT, HOLDER - $1.69
37
  • BOLT-WASHER (6X24) - $0.80
38
  • CLAMP, CASE - $3.76
37
  • BOLT-WASHER (6X24) - $0.80
15
  • NUT, HOLDER - $1.69
26
  • SUB-HARNESS, AIR CONDITIONER - $92.83
22
  • VALVE ASSY., EXPANSION - $39.82
41
  • NUT-WASHER (8MM) - $0.59
15
  • NUT, HOLDER - $1.69
10
  • HEATER SUB-ASSY. - $319.80
12
  • CORE SUB-ASSY., HEATER - $201.42
9
  • SEAL B - $4.58
39
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
20
  • EVAPORATOR - $234.66
6
  • BRACKET, COVER (LOWER) - $1.52
11
  • SEAL C - $3.12
17
  • GROMMET, WATER VALVE CABLE - $3.83
3
  • CASE, EXPANSION VALVE COVER - $21.76
36
  • SCREW-WASHER (4X16) - $1.40
21
  • SEAL, EXPANSION VALVE - $4.86
31
  • SCREW, TAPPING (5X12) - $1.40
2
  • CLIP, POWER STEERING HOSE - $4.75
8
  • SEAL A - $2.81
35
  • SCREW, TAPPING (4X16) - $1.30
7
  • SEAL, DRAIN - $3.12
16
  • CABLE, WATER VALVE CONTROL - $4.91
35
  • SCREW, TAPPING (4X16) - $1.30
25
  • SENSOR ASSY., EVAPORATOR - $6.42
14
  • MOTOR ASSY., TEMPERATURE - $49.08
23
  • HOSE, DRAIN - $1.84
29
  • O-RING (1/2") - $2.39
No. Part # Part # / Description Qty Req. List Price Price
1 39248-692-003 39248-692-003 / GASKET, HEATER

1 $1.92 $1.38
2 53747-SA5-003 53747-SA5-003 / CLIP, POWER STEERING HOSE

1 $6.60 $4.75
3 79027-S5D-A01 79027-S5D-A01 / CASE, EXPANSION VALVE COVER

1 $30.22 $21.76
4 79028-S5D-A01 79028-S5D-A01 / COVER, FLANGE

1 $4.02 $2.89
5 79029-S5D-A01 79029-S5D-A01 / COVER, FOOT DUCT

1 $6.27 $4.51
6 79101-S5A-000 79101-S5A-000 / BRACKET, COVER (LOWER)

1 $2.12 $1.52
7 79103-S5A-003 79103-S5A-003 / SEAL, DRAIN

1 $4.33 $3.12
8 79104-S5D-A01 79104-S5D-A01 / SEAL A

1 $3.90 $2.81
9 79105-S5D-A01 79105-S5D-A01 / SEAL B

1 $6.37 $4.58
10 79106-S5D-A01 79106-S5D-A01 / HEATER SUB-ASSY.

1 $444.17 $319.80
11 79107-S5D-A01 79107-S5D-A01 / SEAL C

1 $4.33 $3.12
12 79110-S5D-A02 79110-S5D-A02 / CORE SUB-ASSY., HEATER

1 $279.75 $201.42
13 79140-S5D-A01 79140-S5D-A01 / MOTOR ASSY., MODE

1 $78.95 $56.84
14 79160-S5D-A01 79160-S5D-A01 / MOTOR ASSY., TEMPERATURE

1 $68.17 $49.08
15 79191-SZ3-A01 79191-SZ3-A01 / NUT, HOLDER

4 $2.35 $1.69
16 79544-S5D-A00 79544-S5D-A00 / CABLE, WATER VALVE CONTROL

1 $6.82 $4.91
17 79770-SE0-000 79770-SE0-000 / GROMMET, WATER VALVE CABLE

1 $5.32 $3.83
20 80215-S5D-G01 80215-S5D-G01 / EVAPORATOR

1 $325.92 $234.66
21 80219-S5A-901 80219-S5A-901 / SEAL, EXPANSION VALVE

1 $6.75 $4.86
22 80220-SDE-T01 80220-SDE-T01 / VALVE ASSY., EXPANSION

1 $55.30 $39.82
23 80271-S5A-000 80271-S5A-000 / HOSE, DRAIN

1 $2.55 $1.84
25 80560-S5A-941 80560-S5A-941 / SENSOR ASSY., EVAPORATOR

1 $8.92 $6.42
26 80650-S5A-A01 80650-S5A-A01 / SUB-HARNESS, AIR CONDITIONER

1 $128.93 $92.83
27 80871-SN7-003 80871-SN7-003 / O-RING (5/8")

1 $3.32 $2.39
27 80871-SN7-003 80871-SN7-003 / O-RING (5/8")

1 $3.32 $2.39
29 80872-ST7-000 80872-ST7-000 / O-RING (1/2")

1 $3.32 $2.39
31 90121-SR3-003 90121-SR3-003 / SCREW, TAPPING (5X12)

1 $1.95 $1.40
32 90121-S5A-003 90121-S5A-003 / SCREW, TAPPING (4X12)

2 $2.82 $2.03
34 90126-S5A-003 90126-S5A-003 / BOLT, SOCKET (5X40)

2 $3.00 $2.16
35 90127-SX0-003 90127-SX0-003 / SCREW, TAPPING (4X16)

28 $1.80 $1.30
36 90133-SR3-003 90133-SR3-003 / SCREW-WASHER (4X16)

4 $1.95 $1.40
37 90156-SH3-000 90156-SH3-000 / BOLT-WASHER (6X24)

3 $1.12 $0.80
38 90659-692-000 90659-692-000 / CLAMP, CASE

3 $5.22 $3.76
39 91540-S0A-003 91540-S0A-003 / CLIP, HARNESS BAND (96.9MM) (NATURAL)

5 $4.00 $2.88
41 94071-08080 94071-08080 / NUT-WASHER (8MM)

1 $0.82 $0.59
