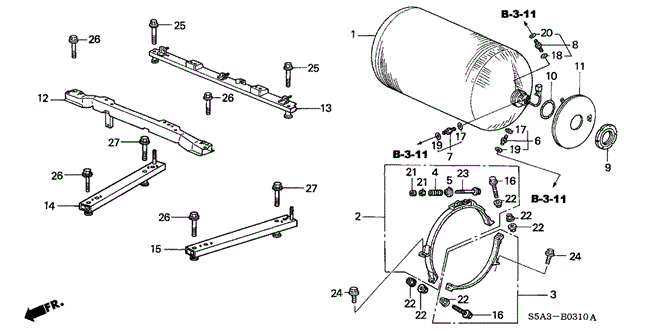

FRAME, FR. TANK in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (CNG) for 2001 Honda CIVIC SEDAN

FRAME, FR. TANK in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (CNG) for 2001 Honda CIVIC SEDAN #1
22
  • NUT, FLANGE (10MM) - $0.76
7
  • CONNECTOR, SEAL LOCK (1/4 INCHES) - $44.29
10
  • GASKET, DUCT BASE - $11.59
26
  • BOLT, FLANGE (10X75) - $1.30
3
  • BAND, RR. CNG TANK - $69.46
26
  • BOLT, FLANGE (10X75) - $1.30
6
  • CONNECTOR, SEAL LOCK (1/4 INCHES) - $46.74
9
  • NUT, DUCT BASE - $20.99
4
  • SPRING, CNG TANK BAND - $20.28
24
  • BOLT, FLANGE (10X25) - $0.94
17
  • O-RING (1/4 INCHES) - $1.86
27
  • BOLT, FLANGE (10X100) - $1.73
22
  • NUT, FLANGE (10MM) - $0.76
26
  • BOLT, FLANGE (10X75) - $1.30
25
  • BOLT, FLANGE (10X60) - $1.08
22
  • NUT, FLANGE (10MM) - $0.76
22
  • NUT, FLANGE (10MM) - $0.76
16
  • BOLT, FLANGE (10X80) - $2.45
15
  • FRAME, L. TANK SIDE - $536.28
16
  • BOLT, FLANGE (10X80) - $2.45
22
  • NUT, FLANGE (10MM) - $0.76
25
  • BOLT, FLANGE (10X60) - $1.08
19
  • O-RING (1/4 INCHES) - $1.78
14
  • FRAME, R. TANK SIDE - $536.28
5
  • RETAINER, TANK BAND SPRING - $4.68
26
  • BOLT, FLANGE (10X75) - $1.30
8
  • CONNECTOR, SEAL LOCK (3/8 INCHES) - $37.28
22
  • NUT, FLANGE (10MM) - $0.76
11
  • BASE, TANK VALVE DUCT - $31.97
27
  • BOLT, FLANGE (10X100) - $1.73
17
  • O-RING (1/4 INCHES) - $1.86
20
  • O-RING (3/8 INCHES) - $1.78
18
  • O-RING (3/8 INCHES) - $2.38
23
  • BOLT, FLANGE (10X110) - $1.91
2
  • BAND, FR. CNG TANK - $90.72
24
  • BOLT, FLANGE (10X25) - $0.94
21
  • NUT, HEX. (10MM) - $0.54
13
  • FRAME, RR. TANK - $402.56
21
  • NUT, HEX. (10MM) - $0.54
19
  • O-RING (1/4 INCHES) - $1.78
12
  • FRAME, FR. TANK - $772.24
No. Part # Part # / Description Qty Req. List Price Price
2 17521-S5W-000 17521-S5W-000 / BAND, FR. CNG TANK

2 $126.00 $90.72
3 17522-S5W-000 17522-S5W-000 / BAND, RR. CNG TANK

2 $96.47 $69.46
4 17526-S1G-000 17526-S1G-000 / SPRING, CNG TANK BAND

2 $28.17 $20.28
5 17528-S1G-000 17528-S1G-000 / RETAINER, TANK BAND SPRING

2 $6.50 $4.68
6 17718-S1G-C01 17718-S1G-C01 / CONNECTOR, SEAL LOCK (1/4 INCHES)

1 $64.92 $46.74
7 17718-S1G-D01 17718-S1G-D01 / CONNECTOR, SEAL LOCK (1/4 INCHES)

1 $61.52 $44.29
8 17718-S1G-E01 17718-S1G-E01 / CONNECTOR, SEAL LOCK (3/8 INCHES)

1 $51.78 $37.28
9 17782-S1G-010 17782-S1G-010 / NUT, DUCT BASE

1 $29.15 $20.99
10 17783-S1G-013 17783-S1G-013 / GASKET, DUCT BASE

1 $16.10 $11.59
11 17785-S1G-010 17785-S1G-010 / BASE, TANK VALVE DUCT

1 $44.40 $31.97
12 74550-S5W-000 74550-S5W-000 / FRAME, FR. TANK

1 $1,072.55 $772.24
13 74555-S5W-000 74555-S5W-000 / FRAME, RR. TANK

1 $559.12 $402.56
14 74560-S5W-000 74560-S5W-000 / FRAME, R. TANK SIDE

1 $744.83 $536.28
15 74565-S5W-000 74565-S5W-000 / FRAME, L. TANK SIDE

1 $744.83 $536.28
16 90085-S1G-A00 90085-S1G-A00 / BOLT, FLANGE (10X80)

4 $3.40 $2.45
17 91066-S1G-A01 91066-S1G-A01 / O-RING (1/4 INCHES)

2 $2.58 $1.86
18 91066-S1G-B01 91066-S1G-B01 / O-RING (3/8 INCHES)

1 $3.30 $2.38
19 91067-S1G-A01 91067-S1G-A01 / O-RING (1/4 INCHES)

2 $2.47 $1.78
20 91067-S1G-B01 91067-S1G-B01 / O-RING (3/8 INCHES)

1 $2.47 $1.78
21 94030-10280 94030-10280 / NUT, HEX. (10MM)

4 $0.75 $0.54
22 94050-10080 94050-10080 / NUT, FLANGE (10MM)

12 $1.05 $0.76
23 95701-10110-08 95701-10110-08 / BOLT, FLANGE (10X110)

2 $2.65 $1.91
24 95701-10025-08 95701-10025-08 / BOLT, FLANGE (10X25)

4 $1.30 $0.94
25 95801-10060-08 95801-10060-08 / BOLT, FLANGE (10X60)

2 $1.50 $1.08
26 95801-10075-08 95801-10075-08 / BOLT, FLANGE (10X75)

4 $1.80 $1.30
27 95801-10100-08 95801-10100-08 / BOLT, FLANGE (10X100)

2 $2.40 $1.73
