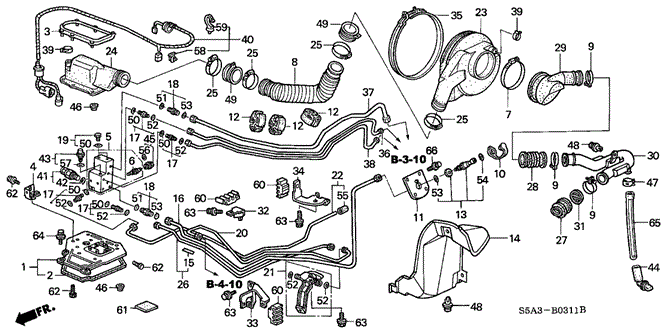

VALVE ASSY., MANUAL in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (CNG SHORT PARTS) for 2001 Honda CIVIC SEDAN

VALVE ASSY., MANUAL in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (CNG SHORT PARTS) for 2001 Honda CIVIC SEDAN #1
35
  • BAND, TANK VALVE DUCT - $20.34
45
  • BOLT, SEALING (3/4-16UNF) - $27.23
49
  • JOINT A, FUEL VENT DUCT - $3.19
46
  • NUT, SPECIAL (6MM) - $1.50
10
  • CAP, RECEPTACLE DUST - $6.28
53
  • O-RING (3/8 INCHES) - $1.78
14
  • COVER, FUEL FILLER PIPE - $37.49
61
  • CUSHION, WIRE HARNESS (50X50) - $3.10
40
  • SUB-WIRE, FUEL - $68.81
5
  • JOINT ASSY., FUEL - $481.60
60
  • CLAMP E, FUEL PIPE - $3.65
15
  • LABEL, FUEL PIPE CAUTION - $1.16
42
  • O-RING (15.8X2.4) - $1.70
9
  • CLIP, FILLER TUBE - $5.03
52
  • O-RING (1/4 INCHES) - $1.78
33
  • STAY G, FUEL PIPE - $17.56
9
  • CLIP, FILLER TUBE - $5.03
12
  • GUIDE, FUEL VENT DUCT - $3.74
2
  • SEAL - $0.82
63
  • BOLT-WASHER (6X16) - $0.73
60
  • CLAMP E, FUEL PIPE - $3.65
50
  • O-RING (1/4 INCHES) - $1.86
49
  • JOINT A, FUEL VENT DUCT - $3.19
63
  • BOLT-WASHER (6X16) - $0.73
17
  • CONNECTOR, SEAL LOCK (1/4 INCHES) - $46.74
19
  • PLUG, HEX. UNF (7/16-20) - $22.93
11
  • PLATE, RECEPTACLE - $12.65
55
  • CAP, FUEL RELIEF PIPE (1/4 INCHES) - $2.90
36
  • PIPE B, FUEL RELIEF - $95.86
51
  • O-RING (3/8 INCHES) - $2.38
18
  • CONNECTOR, SEAL LOCK (3/8 INCHES) - $37.28
28
  • TUBE, FUEL VENT DUCT - $8.06
25
  • BAND A, FUEL VENT DUCT - $6.34
7
  • BAND B, FUEL VENT DUCT - $9.52
50
  • O-RING (1/4 INCHES) - $1.86
17
  • CONNECTOR, SEAL LOCK (1/4 INCHES) - $46.74
48
  • CLIP, SIDE APRON MOLDING - $0.80
41
  • SENSOR, PRESSURE FUEL - $222.91
25
  • BAND A, FUEL VENT DUCT - $6.34
44
  • VALVE, RR. DRAIN (SUNROOF) - $2.26
50
  • O-RING (1/4 INCHES) - $1.86
9
  • CLIP, FILLER TUBE - $5.03
52
  • O-RING (1/4 INCHES) - $1.78
26
  • PIPE D, FUEL FEED - $174.20
59
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
22
  • PIPE C, FUEL RELIEF - $104.56
52
  • O-RING (1/4 INCHES) - $1.78
46
  • NUT, SPECIAL (6MM) - $1.50
62
  • BOLT, HEX. (6X16) - $0.59
27
  • JOINT A, FUEL VENT DUCT - $5.53
6
  • STEM ASSY., FUEL - $7.52
29
  • DUCT A, FUEL VENT - $39.78
62
  • BOLT, HEX. (6X16) - $0.59
52
  • O-RING (1/4 INCHES) - $1.78
31
  • PLATE - $7.43
48
  • CLIP, SIDE APRON MOLDING - $0.80
16
  • PIPE A, FUEL FILLER - $159.19
50
  • O-RING (1/4 INCHES) - $1.86
18
  • CONNECTOR, SEAL LOCK (3/8 INCHES) - $37.28
57
  • O-RING (10.3X1.9) - $4.31
54
  • O-RING - $5.22
64
  • BOLT-WASHER (6X16) - $0.73
39
  • CLIP, WATER HOSE (CHUO SPRING) - $5.03
12
  • GUIDE, FUEL VENT DUCT - $3.74
3
  • PLATE, DUCT SETTING - $6.73
51
  • O-RING (3/8 INCHES) - $2.38
8
  • DUCT A, FUEL VENT - $22.25
21
  • VALVE ASSY., MANUAL - $517.26
12
  • GUIDE, FUEL VENT DUCT - $3.74
63
  • BOLT-WASHER (6X16) - $0.73
56
  • O-RING (16.8X2.25) - $3.14
53
  • O-RING (3/8 INCHES) - $1.78
47
  • CLAMP, FUEL HOSE (18.5MM) - $4.24
66
  • BOLT, FLANGE (6X16) - $0.60
20
  • PIPE C, FUEL FEED - $121.14
65
  • BULK HOSE, VINYL (14X18X8000) - $26.11
53
  • O-RING (3/8 INCHES) - $1.78
23
  • DUCT, TANK VALVE - $42.60
34
  • STAY H, FUEL PIPE - $18.31
63
  • BOLT-WASHER (6X16) - $0.73
39
  • CLIP, WATER HOSE (CHUO SPRING) - $5.03
52
  • O-RING (1/4 INCHES) - $1.78
13
  • RECEPTACLE SET - $484.04
17
  • CONNECTOR, SEAL LOCK (1/4 INCHES) - $46.74
17
  • CONNECTOR, SEAL LOCK (1/4 INCHES) - $46.74
32
  • STAY F, FUEL PIPE - $13.75
30
  • DUCT B, FUEL VENT - $39.78
60
  • CLAMP E, FUEL PIPE - $3.65
58
  • CLIP, CONNECTOR (NATURAL) - $1.62
38
  • PIPE B, FUEL FEED - $104.47
24
  • DUCT, FUEL JOINT - $22.25
25
  • BAND A, FUEL VENT DUCT - $6.34
50
  • O-RING (1/4 INCHES) - $1.86
25
  • BAND A, FUEL VENT DUCT - $6.34
37
  • PIPE B, FUEL FILLER - $107.16
4
  • STAY, JOINT PLATE - $8.68
62
  • BOLT, HEX. (6X16) - $0.59
52
  • O-RING (1/4 INCHES) - $1.78
43
  • SENSOR ASSY., TEMP FUEL (0) - $30.28
1
  • PLATE COMP FUEL JOIN - $86.56
No. Part # Part # / Description Qty Req. List Price Price
1 17542-S5W-A00ZZ 17542-S5W-A00ZZ / PLATE COMP FUEL JOIN

1 $120.22 $86.56
2 17543-S5W-A00 17543-S5W-A00 / SEAL

1 $1.13 $0.82
3 17546-S1G-000 17546-S1G-000 / PLATE, DUCT SETTING

1 $9.35 $6.73
4 17549-S1G-000 17549-S1G-000 / STAY, JOINT PLATE

1 $12.05 $8.68
5 17550-S1G-010 17550-S1G-010 / JOINT ASSY., FUEL

1 $668.88 $481.60
6 17552-S1G-010 17552-S1G-010 / STEM ASSY., FUEL

1 $10.45 $7.52
7 17559-S1G-003 17559-S1G-003 / BAND B, FUEL VENT DUCT

1 $13.22 $9.52
8 17566-S1G-000 17566-S1G-000 / DUCT A, FUEL VENT

1 $30.90 $22.25
9 17652-SA0-000 17652-SA0-000 / CLIP, FILLER TUBE

3 $6.98 $5.03
10 17661-S1G-003 17661-S1G-003 / CAP, RECEPTACLE DUST

1 $8.72 $6.28
11 17663-S1G-000 17663-S1G-000 / PLATE, RECEPTACLE

1 $17.57 $12.65
12 17665-S1G-000 17665-S1G-000 / GUIDE, FUEL VENT DUCT

3 $5.20 $3.74
13 17667-S1G-A01 17667-S1G-A01 / RECEPTACLE SET

1 $672.28 $484.04
14 17668-S5W-A00 17668-S5W-A00 / COVER, FUEL FILLER PIPE

1 $52.07 $37.49
15 17701-S1G-010 17701-S1G-010 / LABEL, FUEL PIPE CAUTION

1 $1.62 $1.16
16 17713-S5W-A00 17713-S5W-A00 / PIPE A, FUEL FILLER

1 $221.10 $159.19
17 17718-S1G-C01 17718-S1G-C01 / CONNECTOR, SEAL LOCK (1/4 INCHES)

4 $64.92 $46.74
18 17718-S1G-E01 17718-S1G-E01 / CONNECTOR, SEAL LOCK (3/8 INCHES)

2 $51.78 $37.28
19 17719-S1G-003 17719-S1G-003 / PLUG, HEX. UNF (7/16-20)

2 $31.85 $22.93
20 17725-S5W-A00 17725-S5W-A00 / PIPE C, FUEL FEED

1 $168.25 $121.14
21 17726-S5W-A01 17726-S5W-A01 / VALVE ASSY., MANUAL

1 $718.41 $517.26
22 17730-S5W-A00 17730-S5W-A00 / PIPE C, FUEL RELIEF

1 $145.22 $104.56
23 17735-S5W-000 17735-S5W-000 / DUCT, TANK VALVE

1 $59.17 $42.60
24 17736-S1G-000 17736-S1G-000 / DUCT, FUEL JOINT

1 $30.90 $22.25
25 17737-S1G-003 17737-S1G-003 / BAND A, FUEL VENT DUCT

4 $8.80 $6.34
26 17740-S5W-A00 17740-S5W-A00 / PIPE D, FUEL FEED

1 $241.95 $174.20
27 17741-S5W-A00 17741-S5W-A00 / JOINT A, FUEL VENT DUCT

1 $7.68 $5.53
28 17742-S5W-A00 17742-S5W-A00 / TUBE, FUEL VENT DUCT

1 $11.20 $8.06
29 17743-S5W-A01 17743-S5W-A01 / DUCT A, FUEL VENT

1 $55.25 $39.78
30 17744-S5W-A01 17744-S5W-A01 / DUCT B, FUEL VENT

1 $55.25 $39.78
31 17745-S5W-A01 17745-S5W-A01 / PLATE

1 $10.32 $7.43
32 17766-S5W-A00 17766-S5W-A00 / STAY F, FUEL PIPE

1 $19.10 $13.75
33 17767-S5W-A00 17767-S5W-A00 / STAY G, FUEL PIPE

1 $24.38 $17.56
34 17768-S5W-A00 17768-S5W-A00 / STAY H, FUEL PIPE

1 $25.43 $18.31
35 17769-S1G-000 17769-S1G-000 / BAND, TANK VALVE DUCT

1 $28.25 $20.34
36 17770-S1G-000 17770-S1G-000 / PIPE B, FUEL RELIEF

1 $133.13 $95.86
37 17780-S1G-000 17780-S1G-000 / PIPE B, FUEL FILLER

1 $148.83 $107.16
38 17790-S1G-000 17790-S1G-000 / PIPE B, FUEL FEED

1 $145.10 $104.47
39 19511-PA6-003 19511-PA6-003 / CLIP, WATER HOSE (CHUO SPRING)

2 $6.98 $5.03
40 32170-S5W-000 32170-S5W-000 / SUB-WIRE, FUEL

1 $95.57 $68.81
41 37850-PMS-A01 37850-PMS-A01 / SENSOR, PRESSURE FUEL

1 $309.60 $222.91
42 37851-PMS-A01 37851-PMS-A01 / O-RING (15.8X2.4)

1 $2.37 $1.70
43 37890-PDN-A01 37890-PDN-A01 / SENSOR ASSY., TEMP FUEL (0)

1 $42.05 $30.28
44 70062-S84-A00 70062-S84-A00 / VALVE, RR. DRAIN (SUNROOF)

1 $3.13 $2.26
45 90030-S1G-010 90030-S1G-010 / BOLT, SEALING (3/4-16UNF)

1 $37.82 $27.23
46 90222-S04-003 90222-S04-003 / NUT, SPECIAL (6MM)

8 $2.08 $1.50
47 90602-SA7-931 90602-SA7-931 / CLAMP, FUEL HOSE (18.5MM)

1 $5.88 $4.24
48 90657-SA5-003 90657-SA5-003 / CLIP, SIDE APRON MOLDING

5 $1.12 $0.80
49 90659-S1G-000 90659-S1G-000 / JOINT A, FUEL VENT DUCT

2 $4.43 $3.19
50 91066-S1G-A01 91066-S1G-A01 / O-RING (1/4 INCHES)

6 $2.58 $1.86
51 91066-S1G-B01 91066-S1G-B01 / O-RING (3/8 INCHES)

2 $3.30 $2.38
52 91067-S1G-A01 91067-S1G-A01 / O-RING (1/4 INCHES)

6 $2.47 $1.78
53 91067-S1G-B01 91067-S1G-B01 / O-RING (3/8 INCHES)

3 $2.47 $1.78
54 91068-S1G-003 91068-S1G-003 / O-RING

1 $7.25 $5.22
55 91069-S1G-B00 91069-S1G-B00 / CAP, FUEL RELIEF PIPE (1/4 INCHES)

1 $4.03 $2.90
56 91071-S1G-003 91071-S1G-003 / O-RING (16.8X2.25)

1 $4.37 $3.14
57 91306-PDN-A01 91306-PDN-A01 / O-RING (10.3X1.9)

1 $5.98 $4.31
58 91533-S04-003 91533-S04-003 / CLIP, CONNECTOR (NATURAL)

1 $2.25 $1.62
59 91540-S0A-003 91540-S0A-003 / CLIP, HARNESS BAND (96.9MM) (NATURAL)

6 $4.00 $2.88
60 91599-S1G-003 91599-S1G-003 / CLAMP E, FUEL PIPE

3 $5.07 $3.65
61 91902-SJ8-003 91902-SJ8-003 / CUSHION, WIRE HARNESS (50X50)

1 $4.30 $3.10
62 93301-06016-0H 93301-06016-0H / BOLT, HEX. (6X16)

9 $0.82 $0.59
63 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

4 $1.02 $0.73
64 93405-06016-07 93405-06016-07 / BOLT-WASHER (6X16)

3 $1.02 $0.73
65 95003-45008-10M 95003-45008-10M / BULK HOSE, VINYL (14X18X8000)

1 $36.27 $26.11
66 95801-06016-04 95801-06016-04 / BOLT, FLANGE (6X16)

4 $0.83 $0.60
