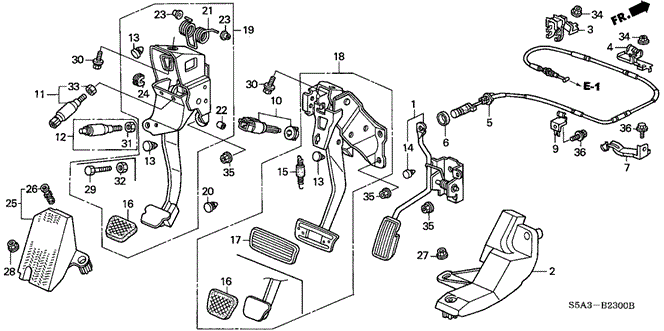

PEDAL ASSY., BRAKE in CHASSIS/PEDAL for 2001 Honda CIVIC SEDAN

PEDAL ASSY., BRAKE in CHASSIS/PEDAL for 2001 Honda CIVIC SEDAN #1
30
  • BOLT-WASHER (8X16) - $0.76
3
  • STAY A, ACTUATOR WIRE - $3.40
2
  • STOPPER, ACCELERATOR STROKE - $5.72
34
  • NUT, CAP (6MM) (BLACK) - $2.59
27
  • NUT, PAINT CUTTING (6MM) - $2.18
35
  • NUT, FLANGE (8MM) - $0.18
14
  • PAD, PEDAL STOPPER - $3.30
6
  • SEAL, THROTTLE CABLE - $3.91
10
  • SWITCH ASSY., STOP & CRUISE (PANASONIC) - $4.37
  • SWITCH ASSY., STOP & CRUISE (PANASONIC) - $4.37
15
  • SPRING ASSY., PEDAL RETURN - $3.30
17
  • COVER, PEDAL - $3.12
28
  • NUT, PAINT CUTTING (6MM) - $2.18
  • NUT, PAINT CUTTING (6MM) - $2.18
35
  • NUT, FLANGE (8MM) - $0.18
30
  • BOLT-WASHER (8X16) - $0.76
4
  • STAY B, ACTUATOR WIRE - $3.44
5
  • WIRE, THROTTLE - $17.52
34
  • NUT, CAP (6MM) (BLACK) - $2.59
26
  • CLIP, FOOTREST - $0.91
36
  • BOLT, FLANGE (6X12) - $0.72
36
  • BOLT, FLANGE (6X12) - $0.72
25
  • BRACKET, FOOTREST - $4.88
1
  • PEDAL ASSY., ACCELERATOR - $25.26
13
  • PAD, PEDAL STOPPER - $2.23
35
  • NUT, FLANGE (8MM) - $0.18
18
  • PEDAL ASSY., BRAKE - $58.81
13
  • PAD, PEDAL STOPPER - $2.23
9
  • CLAMP, THROTTLE WIRE - $2.21
13
  • PAD, PEDAL STOPPER - $2.23
No. Part # Part # / Description Qty Req. List Price Price
1 17800-S5A-A01 17800-S5A-A01 / PEDAL ASSY., ACCELERATOR

1 $35.08 $25.26
2 17818-S5A-A01 17818-S5A-A01 / STOPPER, ACCELERATOR STROKE

1 $7.95 $5.72
3 17881-PLM-A00 17881-PLM-A00 / STAY A, ACTUATOR WIRE

1 $4.72 $3.40
4 17882-PLM-A00 17882-PLM-A00 / STAY B, ACTUATOR WIRE

1 $4.78 $3.44
5 17910-S5A-A03 17910-S5A-A03 / WIRE, THROTTLE

1 $24.33 $17.52
6 17921-SA4-730 17921-SA4-730 / SEAL, THROTTLE CABLE

1 $5.43 $3.91
9 17932-S5A-A00 17932-S5A-A00 / CLAMP, THROTTLE WIRE

1 $3.07 $2.21
10 36750-SMA-013 36750-SMA-013 / SWITCH ASSY., STOP & CRUISE (PANASONIC)

1 $6.07 $4.37
10 36750-SMA-013 36750-SMA-013 / SWITCH ASSY., STOP & CRUISE (PANASONIC)

1 $6.07 $4.37
13 46505-S5F-A01 46505-S5F-A01 / PAD, PEDAL STOPPER

1 $3.10 $2.23
14 46505-SA7-000 46505-SA7-000 / PAD, PEDAL STOPPER

1 $4.58 $3.30
15 46530-S5F-A01 46530-S5F-A01 / SPRING ASSY., PEDAL RETURN

1 $4.58 $3.30
17 46545-S5F-A81 46545-S5F-A81 / COVER, PEDAL

1 $4.33 $3.12
18 46600-S5F-A81 46600-S5F-A81 / PEDAL ASSY., BRAKE

1 $81.68 $58.81
25 46991-S5A-A01 46991-S5A-A01 / BRACKET, FOOTREST

1 $6.78 $4.88
26 46992-SV4-003 46992-SV4-003 / CLIP, FOOTREST

2 $1.27 $0.91
28 90301-SV7-000 90301-SV7-000 / NUT, PAINT CUTTING (6MM)

1 $3.03 $2.18
28 90301-S5A-000 90301-S5A-000 / NUT, PAINT CUTTING (6MM)

1 $3.03 $2.18
30 93404-08016-08 93404-08016-08 / BOLT-WASHER (8X16)

1 $1.05 $0.76
34 90207-PG6-010 90207-PG6-010 / NUT, CAP (6MM) (BLACK)

2 $3.60 $2.59
35 94050-08080 94050-08080 / NUT, FLANGE (8MM)

6 $0.25 $0.18
36 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
