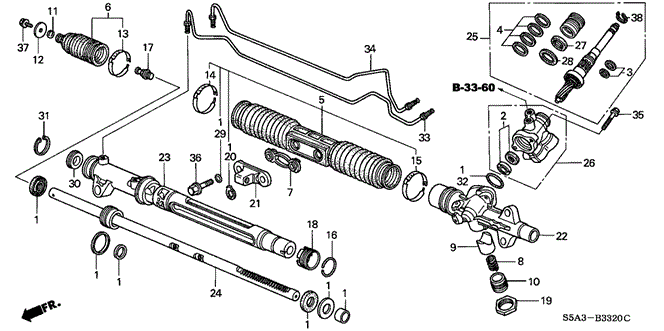

HOUSING, STEERING RACK in CHASSIS/P.S. GEAR BOX COMPONENTS for 2001 Honda CIVIC SEDAN

HOUSING, STEERING RACK in CHASSIS/P.S. GEAR BOX COMPONENTS for 2001 Honda CIVIC SEDAN #1
15
  • BAND, BELLOWS - $2.12
25
  • VALVE SUB-ASSY., STEERING - $178.85
34
  • PIPE B, CYLINDER - $6.48
38
  • CIRCLIP (OUTER) (20MM) - $1.69
18
  • LOCK, SCREW - $7.26
21
  • BRACKET - $22.38
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
6
  • BOOT SET B - $3.05
11
  • CLIP, STEERING TIE ROD - $0.56
13
  • BAND C, BELLOWS - $2.04
2
  • OIL SEAL SET, ROTARY VALVE - $8.08
27
  • OIL SEAL (27X38X5.5) (SHOWA) - $4.08
36
  • BOLT, FLANGE (12X40) - $2.08
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
4
  • RING SET, POWER STEERING SEAL (ROTARY VALVE) - $4.12
7
  • SLIDER - $13.64
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
37
  • BOLT, FLANGE (8X12) - $0.37
26
  • HOUSING, VALVE - $90.95
5
  • BOOT SET - $12.05
32
  • O-RING (41.5X2) (SHOWA) - $0.58
30
  • RING, BACK-UP - $3.74
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
17
  • PLUG, RACK END - $4.13
28
  • WASHER, WAVE (SHOWA) - $2.16
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
24
  • RACK, STEERING - $114.96
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
22
  • HOUSING, STEERING RACK - $193.02
19
  • NUT, LOCK - $2.56
9
  • GUIDE, STEERING RACK - $14.09
29
  • O-RING (11.5X1.5) - $0.55
23
  • CYLINDER - $96.52
31
  • CIRCLIP (INNER) (42) - $0.88
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
33
  • PIPE A, CYLINDER - $7.42
3
  • RING SET, POWER STEERING SEAL (ROTARY VALVE) - $3.36
20
  • WASHER, LOCK - $2.57
8
  • SPRING, RACK GUIDE PRESSURE - $1.94
12
  • GUARD, BOOT - $3.47
10
  • SCREW, RACK GUIDE - $7.86
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
35
  • BOLT, FLANGE (8X28) - $0.35
14
  • BAND B, BELLOWS - $2.38
16
  • RING B, STOPPER - $0.79
1
  • SEAL KIT A, POWER STEERING (ROTARY VALVE) - $62.38
No. Part # Part # / Description Qty Req. List Price Price
1 06531-S5A-H01 06531-S5A-H01 / SEAL KIT A, POWER STEERING (ROTARY VALVE)

1 $86.63 $62.38
2 06532-S84-A01 06532-S84-A01 / OIL SEAL SET, ROTARY VALVE

1 $11.22 $8.08
3 06534-S84-A01 06534-S84-A01 / RING SET, POWER STEERING SEAL (ROTARY VALVE)

1 $4.67 $3.36
4 06535-S50-003 06535-S50-003 / RING SET, POWER STEERING SEAL (ROTARY VALVE)

1 $5.72 $4.12
5 06536-S5A-H01 06536-S5A-H01 / BOOT SET

1 $16.73 $12.05
6 06537-S5A-H01 06537-S5A-H01 / BOOT SET B

1 $4.23 $3.05
7 06538-S5A-H01 06538-S5A-H01 / SLIDER

1 $18.95 $13.64
8 53413-S04-G51 53413-S04-G51 / SPRING, RACK GUIDE PRESSURE

1 $2.70 $1.94
9 53416-S5A-003 53416-S5A-003 / GUIDE, STEERING RACK

1 $19.57 $14.09
10 53414-S04-003 53414-S04-003 / SCREW, RACK GUIDE

1 $10.92 $7.86
11 53434-S5A-003 53434-S5A-003 / CLIP, STEERING TIE ROD

1 $0.78 $0.56
12 53446-S5A-013 53446-S5A-013 / GUARD, BOOT

1 $4.82 $3.47
13 53447-S5A-003 53447-S5A-003 / BAND C, BELLOWS

1 $2.83 $2.04
14 53448-S5A-003 53448-S5A-003 / BAND B, BELLOWS

1 $3.30 $2.38
15 53449-S5A-003 53449-S5A-003 / BAND, BELLOWS

1 $2.95 $2.12
16 53455-S5A-003 53455-S5A-003 / RING B, STOPPER

1 $1.10 $0.79
17 53456-S5A-003 53456-S5A-003 / PLUG, RACK END

1 $5.73 $4.13
18 53457-S5A-003 53457-S5A-003 / LOCK, SCREW

1 $10.08 $7.26
19 53458-S50-003 53458-S50-003 / NUT, LOCK

1 $3.55 $2.56
20 53535-S5A-003 53535-S5A-003 / WASHER, LOCK

1 $3.57 $2.57
21 53604-S5A-003 53604-S5A-003 / BRACKET

1 $31.08 $22.38
22 53608-S5D-A01 53608-S5D-A01 / HOUSING, STEERING RACK

1 $268.08 $193.02
23 53611-S5D-A01 53611-S5D-A01 / CYLINDER

1 $134.05 $96.52
24 53626-S5D-A01 53626-S5D-A01 / RACK, STEERING

1 $159.67 $114.96
25 53641-S5D-A02 53641-S5D-A02 / VALVE SUB-ASSY., STEERING

1 $248.40 $178.85
26 53645-S5D-A01 53645-S5D-A01 / HOUSING, VALVE

1 $126.32 $90.95
27 53660-S50-003 53660-S50-003 / OIL SEAL (27X38X5.5) (SHOWA)

1 $5.67 $4.08
28 53661-S50-003 53661-S50-003 / WASHER, WAVE (SHOWA)

1 $3.00 $2.16
29 53662-S5A-003 53662-S5A-003 / O-RING (11.5X1.5)

2 $0.77 $0.55
30 53663-S5A-003 53663-S5A-003 / RING, BACK-UP

1 $5.20 $3.74
31 53664-S5A-003 53664-S5A-003 / CIRCLIP (INNER) (42)

1 $1.22 $0.88
32 53666-S50-003 53666-S50-003 / O-RING (41.5X2) (SHOWA)

1 $0.80 $0.58
33 53670-S5D-A01 53670-S5D-A01 / PIPE A, CYLINDER

1 $10.30 $7.42
34 53671-S5D-A01 53671-S5D-A01 / PIPE B, CYLINDER

1 $9.00 $6.48
35 90105-S50-003 90105-S50-003 / BOLT, FLANGE (8X28)

2 $0.48 $0.35
36 90455-S5A-003 90455-S5A-003 / BOLT, FLANGE (12X40)

2 $2.88 $2.08
37 90456-S5A-003 90456-S5A-003 / BOLT, FLANGE (8X12)

1 $0.52 $0.37
38 90601-S50-003 90601-S50-003 / CIRCLIP (OUTER) (20MM)

1 $2.35 $1.69
