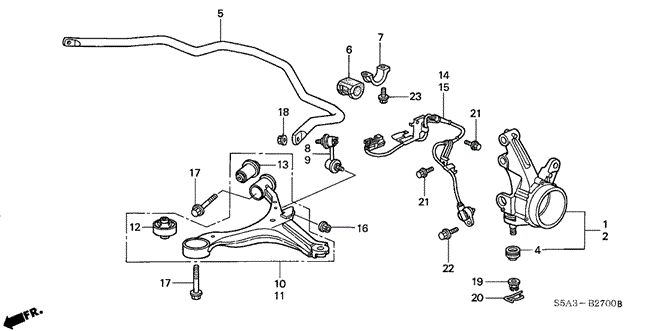

KNUCKLE, R. FR. in CHASSIS/KNUCKLE for 2001 Honda CIVIC SEDAN

KNUCKLE, R. FR. in CHASSIS/KNUCKLE for 2001 Honda CIVIC SEDAN #1
9
  • LINK, L. FR. STABILIZER - $16.13
15
  • SENSOR ASSY., L. FR. - $61.42
14
  • SENSOR ASSY., R. FR. - $61.42
15
  • SENSOR ASSY., L. FR. - $61.42
10
  • ARM, R. FR. (LOWER) - $181.40
20
  • CLIP, ARM (UPPER) - $1.64
14
  • SENSOR ASSY., R. FR. - $61.42
2
  • KNUCKLE/BEARING ASSY., L - $294.71
  • KNUCKLE, L. FR. - $299.72
22
  • BOLT, FLANGE (6X16) - $0.64
11
  • ARM, L. FR. (LOWER) - $181.40
8
  • LINK, R. FR. STABILIZER - $16.13
12
  • BUSH, FR. COMPLIANCE (YAMASHITA) - $11.89
6
  • BUSH, STABILIZER HOLDER - $1.62
19
  • NUT, ARM (LOWER) (12MM) - $2.82
23
  • BOLT, FLANGE (10X18) - $0.90
4
  • BOOT, BALL DUST (LOWER) - $2.90
12
  • BUSH, FR. COMPLIANCE (YAMASHITA) - $11.89
5
  • SPRING, FR. STABILIZER - $49.28
17
  • BOLT, FLANGE (14X91) - $4.55
13
  • BUSH, FR. ARM (LOWER) (YAMASHITA) - $10.40
11
  • ARM, L. FR. (LOWER) - $181.40
18
  • NUT, SELF-LOCK (10MM) - $0.42
21
  • BOLT, FLANGE (6X12) - $0.72
17
  • BOLT, FLANGE (14X91) - $4.55
9
  • LINK, L. FR. STABILIZER - $16.13
7
  • HOLDER, FR. STABILIZER - $17.68
21
  • BOLT, FLANGE (6X12) - $0.72
1
  • KNUCKLE/BEARING ASSY., R - $288.19
  • KNUCKLE, R. FR. - $299.72
13
  • BUSH, FR. ARM (LOWER) (YAMASHITA) - $10.40
16
  • NUT, FLANGE (10MM) - $1.94
21
  • BOLT, FLANGE (6X12) - $0.72
18
  • NUT, SELF-LOCK (10MM) - $0.42
No. Part # Part # / Description Qty Req. List Price Price
N/A 51220-S5A-305 51220-S5A-305 / JOINT, FR. BALL (LOWER)

1 $49.22 $35.44
N/A 90305-692-010 90305-692-010 / NUT, SPINDLE (22MM)

1 $2.58 $1.86
20 90701-SX0-003 90701-SX0-003 / CLIP, ARM (UPPER)

2 $2.28 $1.64
1 5121C-S5D-J61 5121C-S5D-J61 / KNUCKLE/BEARING ASSY., R

1 $400.27 $288.19
1 51210-S5A-J10 51210-S5A-J10 / KNUCKLE, R. FR.

1 $416.28 $299.72
2 5121D-S5D-J61 5121D-S5D-J61 / KNUCKLE/BEARING ASSY., L

1 $409.32 $294.71
2 51215-S5A-J10 51215-S5A-J10 / KNUCKLE, L. FR.

1 $416.28 $299.72
4 51225-S5A-003 51225-S5A-003 / BOOT, BALL DUST (LOWER)

2 $4.03 $2.90
5 51300-S5D-A01 51300-S5D-A01 / SPRING, FR. STABILIZER

1 $68.45 $49.28
6 51306-S5D-005 51306-S5D-005 / BUSH, STABILIZER HOLDER

2 $2.25 $1.62
7 51308-S5A-000 51308-S5A-000 / HOLDER, FR. STABILIZER

2 $24.55 $17.68
8 51320-S5A-003 51320-S5A-003 / LINK, R. FR. STABILIZER

1 $22.40 $16.13
9 51321-S5A-003 51321-S5A-003 / LINK, L. FR. STABILIZER

1 $22.40 $16.13
10 51350-S5A-A03 51350-S5A-A03 / ARM, R. FR. (LOWER)

1 $251.95 $181.40
11 51360-S5A-A03 51360-S5A-A03 / ARM, L. FR. (LOWER)

1 $251.95 $181.40
12 51391-S5A-024 51391-S5A-024 / BUSH, FR. COMPLIANCE (YAMASHITA)

2 $16.52 $11.89
13 51392-S5A-004 51392-S5A-004 / BUSH, FR. ARM (LOWER) (YAMASHITA)

2 $14.45 $10.40
14 57450-S5D-013 57450-S5D-013 / SENSOR ASSY., R. FR.

1 $85.30 $61.42
15 57455-S5D-013 57455-S5D-013 / SENSOR ASSY., L. FR.

1 $85.30 $61.42
16 90002-S10-000 90002-S10-000 / NUT, FLANGE (10MM)

2 $2.70 $1.94
17 90118-S5A-000 90118-S5A-000 / BOLT, FLANGE (14X91)

4 $6.32 $4.55
18 90212-SA5-003 90212-SA5-003 / NUT, SELF-LOCK (10MM)

2 $0.58 $0.42
19 90363-S47-000 90363-S47-000 / NUT, ARM (LOWER) (12MM)

2 $3.92 $2.82
21 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

4 $1.00 $0.72
22 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

2 $0.88 $0.64
23 95801-10018-08 95801-10018-08 / BOLT, FLANGE (10X18)

4 $1.25 $0.90
