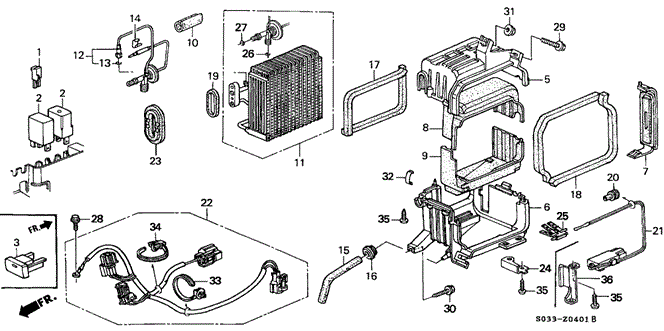

EVAPORATOR (SAM) in BODY / AIR CONDITIONING/A/C UNIT (4) for 2000 Honda CIVIC HATCHBACK

EVAPORATOR (SAM) in BODY / AIR CONDITIONING/A/C UNIT (4) for 2000 Honda CIVIC HATCHBACK #1
8
  • INSULATOR, EVAPORATOR (UPPER) (SAM) - $10.52
26
  • O-RING (1/2") - $2.39
36
  • PLATE, EVAPORATOR HARNESS - $4.18
13
  • O-RING (FUJI KOKI AMERICA) - $2.00
22
  • WIRE HARNESS, AIR CONDITIONER - $10.54
15
  • HOSE, DRAIN
9
  • INSULATOR, EVAPORATOR (LOWER) - $12.53
31
  • NUT-WASHER (6MM) (PAINT CUTTING) - $2.00
10
  • INSULATOR, EXPANSION - $5.11
16
  • GROMMET, DRAIN HOSE - $2.17
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
28
  • BOLT, GROUND (6X12) - $0.30
25
  • CLIP, EVAPORATOR SENSOR - $4.28
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
11
  • EVAPORATOR (SAM) - $249.31
20
  • GROMMET, EVAPORATOR SENSOR - $2.69
33
  • BAND, WIRE HARNESS (110MM) (BROWN) - $3.25
27
  • O-RING (8MM) - $2.59
5
  • CASE, EVAPORATOR (UPPER) (SAM) - $29.57
29
  • SCREW, TAPPING (6X20) - $1.97
30
  • BOLT-WASHER (6X24) - $0.80
1
  • CONNECTOR, DIODE (2P) - $9.34
23
  • GROMMET, AIR CONDITIONER PIPE - $2.23
2
  • RELAY ASSY., POWER (4P) (MICRO ISO) (OMRON) - $5.16
  • RELAY ASSY., POWER (4P) (MICRO ISO) (MATSUSHITA) - $17.39
  • RELAY ASSY., POWER (4P) (MICRO ISO) (MATSUSHITA) - $17.39
7
  • LID, EVAPORATOR CASE (UPPER) (SAM) - $8.02
34
  • CLIP, HARNESS BAND (135MM) (7MM HOLE) (NATURAL) - $2.95
35
  • SCREW, TAPPING (4X16) (PO) - $0.40
12
  • VALVE ASSY., EXPANSION (10N) (FUJI KOKI AMERICA) - $56.09
2
  • RELAY ASSY., POWER (4P) (MICRO ISO) (OMRON) - $5.16
  • RELAY ASSY., POWER (4P) (MICRO ISO) (MATSUSHITA) - $17.39
  • RELAY ASSY., POWER (4P) (MICRO ISO) (MATSUSHITA) - $17.39
17
  • SEAL, EVAPORATOR (INNER) - $5.16
21
  • THERMOSTAT, AIR CONDITIONER
14
  • CLAMP - $4.24
18
  • SEAL, EVAPORATOR (OUTER) - $5.16
3
  • KNOB (A/C) - $7.51
32
  • CLAMP, CASE - $3.76
19
  • SEAL, EVAPORATOR JOINT - $5.16
6
  • CASE, EVAPORATOR (LOWER) (SAM) - $85.63
No. Part # Part # / Description Qty Req. List Price Price
1 32146-SH3-003 32146-SH3-003 / CONNECTOR, DIODE (2P)

1 $12.97 $9.34
2 39794-S0K-A01 39794-S0K-A01 / RELAY ASSY., POWER (4P) (MICRO ISO) (OMRON)

2 $7.17 $5.16
2 39794-S04-014 39794-S04-014 / RELAY ASSY., POWER (4P) (MICRO ISO) (MATSUSHITA)

2 $24.15 $17.39
2 39794-S04-014 39794-S04-014 / RELAY ASSY., POWER (4P) (MICRO ISO) (MATSUSHITA)

2 $24.15 $17.39
3 79601-S04-J11 79601-S04-J11 / KNOB (A/C)

1 $10.43 $7.51
5 80201-S01-G00 80201-S01-G00 / CASE, EVAPORATOR (UPPER) (SAM)

1 $41.07 $29.57
6 80202-S01-G00 80202-S01-G00 / CASE, EVAPORATOR (LOWER) (SAM)

1 $118.93 $85.63
7 80203-S01-G00 80203-S01-G00 / LID, EVAPORATOR CASE (UPPER) (SAM)

1 $11.13 $8.02
8 80205-S01-G00 80205-S01-G00 / INSULATOR, EVAPORATOR (UPPER) (SAM)

1 $14.62 $10.52
9 80206-ST3-G00 80206-ST3-G00 / INSULATOR, EVAPORATOR (LOWER)

1 $17.40 $12.53
10 80214-SL5-A01 80214-SL5-A01 / INSULATOR, EXPANSION

1 $7.10 $5.11
11 80215-ST3-G11 80215-ST3-G11 / EVAPORATOR (SAM)

1 $346.27 $249.31
12 80220-S84-A02 80220-S84-A02 / VALVE ASSY., EXPANSION (10N) (FUJI KOKI AMERICA)

1 $77.90 $56.09
13 80223-ST7-A11 80223-ST7-A11 / O-RING (FUJI KOKI AMERICA)

1 $2.78 $2.00
14 80225-SR3-010 80225-SR3-010 / CLAMP

1 $5.88 $4.24
15 80271-S01-A00 80271-S01-A00 / HOSE, DRAIN

1 - -
16 80272-SF4-000 80272-SF4-000 / GROMMET, DRAIN HOSE

1 $3.02 $2.17
17 80286-S01-G00 80286-S01-G00 / SEAL, EVAPORATOR (INNER)

1 $7.17 $5.16
18 80287-S01-G00 80287-S01-G00 / SEAL, EVAPORATOR (OUTER)

1 $7.17 $5.16
19 80288-S01-G00 80288-S01-G00 / SEAL, EVAPORATOR JOINT

1 $7.17 $5.16
20 80291-SR3-000 80291-SR3-000 / GROMMET, EVAPORATOR SENSOR

1 $3.73 $2.69
21 80430-S01-A21 80430-S01-A21 / THERMOSTAT, AIR CONDITIONER

1 - -
22 80460-S04-000 80460-S04-000 / WIRE HARNESS, AIR CONDITIONER

1 $14.63 $10.54
23 80464-S04-000 80464-S04-000 / GROMMET, AIR CONDITIONER PIPE

1 $3.10 $2.23
25 80566-SR3-003 80566-SR3-003 / CLIP, EVAPORATOR SENSOR

1 $5.95 $4.28
26 80872-ST7-000 80872-ST7-000 / O-RING (1/2")

1 $3.32 $2.39
27 80873-ST7-000 80873-ST7-000 / O-RING (8MM)

1 $3.60 $2.59
28 90153-SE0-003 90153-SE0-003 / BOLT, GROUND (6X12)

1 $0.42 $0.30
29 90155-SE0-003 90155-SE0-003 / SCREW, TAPPING (6X20)

4 $2.73 $1.97
30 90156-SH3-000 90156-SH3-000 / BOLT-WASHER (6X24)

1 $1.12 $0.80
31 90321-SV4-003 90321-SV4-003 / NUT-WASHER (6MM) (PAINT CUTTING)

1 $2.78 $2.00
32 90659-692-000 90659-692-000 / CLAMP, CASE

2 $5.22 $3.76
33 91551-SF4-003 91551-SF4-003 / BAND, WIRE HARNESS (110MM) (BROWN)

1 $4.52 $3.25
34 91558-ST5-003 91558-ST5-003 / CLIP, HARNESS BAND (135MM) (7MM HOLE) (NATURAL)

1 $4.10 $2.95
35 93913-14420 93913-14420 / SCREW, TAPPING (4X16) (PO)

2 $0.55 $0.40
36 80266-ST3-G00 80266-ST3-G00 / PLATE, EVAPORATOR HARNESS

1 $5.80 $4.18
