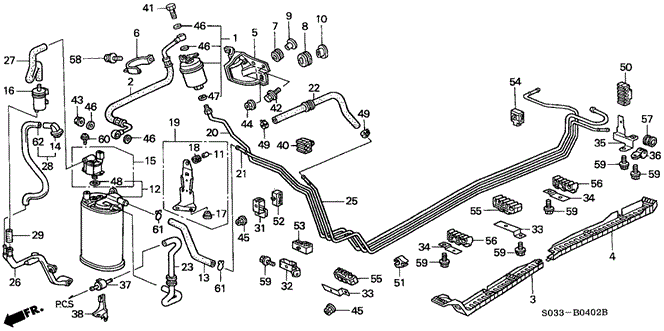

CANISTER ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE (3) for 2000 Honda CIVIC HATCHBACK

CANISTER ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE (3) for 2000 Honda CIVIC HATCHBACK #1
6
  • BAND, FUEL STRAINER - $5.52
53
  • CLAMP B, FUEL PIPE - $5.54
10
  • COLLAR, DISTANCE - $3.08
41
  • BOLT, SEALING (12MM) - $2.76
62
  • BULK HOSE, VINYL (11X15X3000)
61
  • CLIP, TUBE (B10) - $0.78
46
  • WASHER, SEALING (12MM) - $2.38
34
  • STAY D, FUEL PIPE - $3.80
18
  • RUBBER, CANISTER MOUNTING - $2.26
32
  • STAY B, FUEL PIPE - $3.80
55
  • CLAMP C, FUEL PIPE - $4.19
47
  • WASHER, SEALING (6MM) - $1.88
55
  • CLAMP C, FUEL PIPE - $4.19
13
  • TUBE, BREATHER - $4.24
3
  • COVER, FR. FUEL PIPE - $16.08
61
  • CLIP, TUBE (B10) - $0.78
57
  • INSULATOR RUBBER, FUEL PIPE - $2.22
50
  • CLAMP J, FUEL PIPE - $4.28
19
  • BRACKET, CANISTER
2
  • HOSE, FUEL FEED - $40.43
59
  • BOLT-WASHER (6X16) - $0.73
56
  • CLAMP D, FUEL PIPE - $4.19
36
  • STAY F, FUEL PIPE - $3.46
12
  • CANISTER ASSY. - $136.98
25
  • PIPE, FUEL RETURN - $27.71
59
  • BOLT-WASHER (6X16) - $0.73
9
  • COLLAR, DISTANCE - $3.08
23
  • HOSE, FUEL PURGE - $7.56
40
  • CLIP B, BRAKE PIPE - $3.35
49
  • CLAMP, FUEL HOSE (D10.5) - $2.34
7
  • RUBBER, MOUNTING - $2.17
58
  • BOLT-WASHER (6X16) - $0.73
49
  • CLAMP, FUEL HOSE (D10.5) - $2.34
35
  • STAY E, FUEL PIPE - $4.76
56
  • CLAMP D, FUEL PIPE - $4.19
28
  • TUBE, DRAIN (SUB) - $6.78
20
  • PIPE, FUEL FEED - $36.32
27
  • TUBE, CANISTER DRAIN - $6.25
48
  • O-RING - $3.12
33
  • STAY C, FUEL PIPE - $3.80
43
  • NUT A, SEALING (12MM) - $2.26
45
  • NUT, PAINT CUTTING (6MM) - $1.20
15
  • VALVE, CANISTER VENT SHUT (MADE IN MEXICO) - $47.71
60
  • SCREW-WASHER (5X10) - $0.58
54
  • CLAMP C, FUEL PIPE - $0.88
22
  • HOSE, PRESSURE REGULATOR RETURN - $30.56
17
  • RUBBER, CANISTER MOUNTING - $2.20
5
  • STAY, FUEL STRAINER - $20.24
59
  • BOLT-WASHER (6X16) - $0.73
4
  • COVER, RR. FUEL PIPE - $16.08
59
  • BOLT-WASHER (6X16) - $0.73
38
  • STAY, PURGE JOINT - $2.24
45
  • NUT, PAINT CUTTING (6MM) - $1.20
52
  • CLAMP A, FUEL PIPE - $5.54
37
  • JOINT, PURGE - $8.23
34
  • STAY D, FUEL PIPE - $3.80
21
  • PIPE, FUEL VENT - $61.52
33
  • STAY C, FUEL PIPE - $3.80
11
  • COLLAR, DISTANCE - $0.55
59
  • BOLT-WASHER (6X16) - $0.73
26
  • PIPE, CANISTER DRAIN JOINT - $12.86
46
  • WASHER, SEALING (12MM) - $2.38
51
  • INSULATOR RUBBER, FUEL PIPE (B) - $2.86
46
  • WASHER, SEALING (12MM) - $2.38
1
  • FILTER SET, FUEL (TOYO ROKI) - $22.00
  • FILTER SET, FUEL - $22.00
59
  • BOLT-WASHER (6X16) - $0.73
8
  • RUBBER, MOUNTING - $1.98
29
  • TUBE, CANISTER DRAIN - $1.52
31
  • STAY A, FUEL PIPE - $3.80
16
  • FILTER, CANISTER - $26.34
44
  • NUT, SPECIAL (6MM) - $1.50
46
  • WASHER, SEALING (12MM) - $2.38
42
  • BOLT-WASHER (6X24) - $0.80
14
  • JOINT, DRAIN - $3.55
No. Part # Part # / Description Qty Req. List Price Price
1 16010-ST5-E02 16010-ST5-E02 / FILTER SET, FUEL (TOYO ROKI)

1 $30.55 $22.00
1 16010-ST5-E02 16010-ST5-E02 / FILTER SET, FUEL

1 $30.55 $22.00
2 16722-P2A-003 16722-P2A-003 / HOSE, FUEL FEED

1 $56.15 $40.43
3 16913-S04-A01 16913-S04-A01 / COVER, FR. FUEL PIPE

1 $22.33 $16.08
4 16914-S04-A01 16914-S04-A01 / COVER, RR. FUEL PIPE

1 $22.33 $16.08
5 16918-S01-A01 16918-S01-A01 / STAY, FUEL STRAINER

1 $28.12 $20.24
6 16919-S01-A00 16919-S01-A00 / BAND, FUEL STRAINER

1 $7.67 $5.52
7 16922-SH3-930 16922-SH3-930 / RUBBER, MOUNTING

2 $3.02 $2.17
8 16922-SR3-931 16922-SR3-931 / RUBBER, MOUNTING

1 $2.75 $1.98
9 16923-SP0-930 16923-SP0-930 / COLLAR, DISTANCE

2 $4.28 $3.08
10 16923-SR3-930 16923-SR3-930 / COLLAR, DISTANCE

1 $4.28 $3.08
11 16923-S84-A00 16923-S84-A00 / COLLAR, DISTANCE

1 $0.77 $0.55
12 17011-S01-A00 17011-S01-A00 / CANISTER ASSY.

1 $190.25 $136.98
13 17658-S0X-A01 17658-S0X-A01 / TUBE, BREATHER

1 $5.88 $4.24
14 17306-S04-A01 17306-S04-A01 / JOINT, DRAIN

1 $4.93 $3.55
15 17310-S0X-A02 17310-S0X-A02 / VALVE, CANISTER VENT SHUT (MADE IN MEXICO)

1 $66.27 $47.71
16 17315-S04-A01 17315-S04-A01 / FILTER, CANISTER

1 $36.58 $26.34
17 17322-S04-000 17322-S04-000 / RUBBER, CANISTER MOUNTING

2 $3.05 $2.20
18 17322-S84-A00 17322-S84-A00 / RUBBER, CANISTER MOUNTING

1 $3.13 $2.26
19 17358-S04-A00 17358-S04-A00 / BRACKET, CANISTER

1 - -
20 17700-S01-A00 17700-S01-A00 / PIPE, FUEL FEED

1 $50.45 $36.32
21 17720-S01-A01 17720-S01-A01 / PIPE, FUEL VENT

1 $85.45 $61.52
22 17723-S04-941 17723-S04-941 / HOSE, PRESSURE REGULATOR RETURN

1 $42.45 $30.56
23 17725-S04-A10 17725-S04-A10 / HOSE, FUEL PURGE

1 $10.50 $7.56
25 17740-S01-A00 17740-S01-A00 / PIPE, FUEL RETURN

1 $38.48 $27.71
26 17742-S04-A01 17742-S04-A01 / PIPE, CANISTER DRAIN JOINT

1 $17.87 $12.86
27 17743-S04-A00 17743-S04-A00 / TUBE, CANISTER DRAIN

1 $8.68 $6.25
28 17744-S04-A01 17744-S04-A01 / TUBE, DRAIN (SUB)

1 $9.42 $6.78
29 17745-S04-A00 17745-S04-A00 / TUBE, CANISTER DRAIN

1 $2.12 $1.52
31 17761-S01-A00 17761-S01-A00 / STAY A, FUEL PIPE

1 $5.28 $3.80
32 17762-S01-A00 17762-S01-A00 / STAY B, FUEL PIPE

1 $5.28 $3.80
33 17763-S01-A00 17763-S01-A00 / STAY C, FUEL PIPE

2 $5.28 $3.80
34 17764-S01-A00 17764-S01-A00 / STAY D, FUEL PIPE

2 $5.28 $3.80
35 17765-S01-A00 17765-S01-A00 / STAY E, FUEL PIPE

1 $6.62 $4.76
36 17766-S01-A00 17766-S01-A00 / STAY F, FUEL PIPE

1 $4.80 $3.46
37 36166-PAA-A01 36166-PAA-A01 / JOINT, PURGE

1 $11.43 $8.23
38 36167-P2E-A00 36167-P2E-A00 / STAY, PURGE JOINT

1 $3.12 $2.24
40 46392-SB2-014 46392-SB2-014 / CLIP B, BRAKE PIPE

1 $4.65 $3.35
41 90020-PD6-000 90020-PD6-000 / BOLT, SEALING (12MM)

1 $3.83 $2.76
42 90156-SH3-000 90156-SH3-000 / BOLT-WASHER (6X24)

2 $1.12 $0.80
43 90201-PD1-000 90201-PD1-000 / NUT A, SEALING (12MM)

1 $3.13 $2.26
44 90222-S04-003 90222-S04-003 / NUT, SPECIAL (6MM)

1 $2.08 $1.50
45 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

2 $1.67 $1.20
46 90428-PD6-003 90428-PD6-003 / WASHER, SEALING (12MM)

4 $3.30 $2.38
47 90430-PD6-003 90430-PD6-003 / WASHER, SEALING (6MM)

1 $2.62 $1.88
48 91391-S84-A00 91391-S84-A00 / O-RING

1 $4.33 $3.12
49 91406-SL4-931 91406-SL4-931 / CLAMP, FUEL HOSE (D10.5)

4 $3.25 $2.34
50 91590-SR3-J31 91590-SR3-J31 / CLAMP J, FUEL PIPE

1 $5.95 $4.28
51 91594-S01-A00 91594-S01-A00 / INSULATOR RUBBER, FUEL PIPE (B)

1 $3.97 $2.86
52 91595-S01-A01 91595-S01-A01 / CLAMP A, FUEL PIPE

1 $7.70 $5.54
53 91596-S01-A01 91596-S01-A01 / CLAMP B, FUEL PIPE

1 $7.70 $5.54
54 91597-SR3-003 91597-SR3-003 / CLAMP C, FUEL PIPE

1 $1.22 $0.88
55 91597-S04-A01 91597-S04-A01 / CLAMP C, FUEL PIPE

2 $5.82 $4.19
56 91598-S04-A01 91598-S04-A01 / CLAMP D, FUEL PIPE

2 $5.82 $4.19
57 91599-S01-A00 91599-S01-A00 / INSULATOR RUBBER, FUEL PIPE

1 $3.08 $2.22
58 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

1 $1.02 $0.73
59 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

6 $1.02 $0.73
60 93893-05010-08 93893-05010-08 / SCREW-WASHER (5X10)

2 $0.80 $0.58
61 95002-02104 95002-02104 / CLIP, TUBE (B10)

2 $1.08 $0.78
62 95003-37003-60M 95003-37003-60M / BULK HOSE, VINYL (11X15X3000)

1 - -
