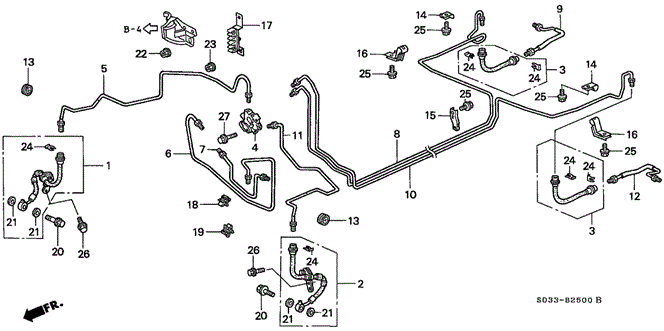

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINES for 2000 Honda CIVIC HATCHBACK

VALVE ASSY., PROPORTIONING in CHASSIS/BRAKE LINES for 2000 Honda CIVIC HATCHBACK #1
25
  • BOLT-WASHER (6X12) - $0.64
25
  • BOLT-WASHER (6X12) - $0.64
10
  • PIPE D, BRAKE - $45.31
24
  • CLIP, BRAKE HOSE - $3.30
14
  • CLAMP, BRAKE PIPE - $5.76
24
  • CLIP, BRAKE HOSE - $3.30
21
  • GASKET, OIL BOLT - $2.27
21
  • GASKET, OIL BOLT - $2.27
24
  • CLIP, BRAKE HOSE - $3.30
23
  • NUT, PAINT CUTTING (6MM) - $1.20
22
  • NUT, SPECIAL (6MM) - $1.50
25
  • BOLT-WASHER (6X12) - $0.64
13
  • GROMMET A, BRAKE PIPE - $2.76
3
  • HOSE SET, RR. BRAKE - $34.15
3
  • HOSE SET, RR. BRAKE - $34.15
26
  • BOLT, FLANGE (6X12) - $0.72
19
  • CLIP A - $0.56
16
  • CLIP, BRAKE PIPE - $7.30
17
  • CLIP, BRAKE PIPE - $9.54
8
  • PIPE C, BRAKE - $43.85
26
  • BOLT, FLANGE (6X12) - $0.72
12
  • PIPE E, L. BRAKE - $29.54
20
  • BOLT, OIL - $3.97
27
  • BOLT, FLANGE (6X45) - $0.86
6
  • PIPE B, BRAKE - $32.86
16
  • CLIP, BRAKE PIPE - $7.30
24
  • CLIP, BRAKE HOSE - $3.30
5
  • PIPE A, BRAKE - $12.84
25
  • BOLT-WASHER (6X12) - $0.64
4
  • VALVE ASSY., PROPORTIONING - $99.62
21
  • GASKET, OIL BOLT - $2.27
2
  • HOSE SET, L. FR. BRAKE - $62.65
24
  • CLIP, BRAKE HOSE - $3.30
25
  • BOLT-WASHER (6X12) - $0.64
11
  • PIPE F, BRAKE - $4.78
13
  • GROMMET A, BRAKE PIPE - $2.76
1
  • HOSE SET, R. FR. BRAKE - $62.65
14
  • CLAMP, BRAKE PIPE - $5.76
24
  • CLIP, BRAKE HOSE - $3.30
20
  • BOLT, OIL - $3.97
18
  • CLIP C - $3.19
15
  • CLAMP, BRAKE PIPE - $8.69
7
  • PIPE H, BRAKE - $7.58
9
  • PIPE E, R. BRAKE - $44.28
21
  • GASKET, OIL BOLT - $2.27
No. Part # Part # / Description Qty Req. List Price Price
1 01464-S04-A01 01464-S04-A01 / HOSE SET, R. FR. BRAKE

1 $87.02 $62.65
2 01465-S04-A01 01465-S04-A01 / HOSE SET, L. FR. BRAKE

1 $87.02 $62.65
3 01466-S04-000 01466-S04-000 / HOSE SET, RR. BRAKE

2 $47.43 $34.15
4 46210-S04-902 46210-S04-902 / VALVE ASSY., PROPORTIONING

1 $138.37 $99.62
5 46310-S04-L01 46310-S04-L01 / PIPE A, BRAKE

1 $17.83 $12.84
6 46320-S04-A01 46320-S04-A01 / PIPE B, BRAKE

1 $45.63 $32.86
7 46321-S04-A01 46321-S04-A01 / PIPE H, BRAKE

1 $10.53 $7.58
8 46330-S04-L00 46330-S04-L00 / PIPE C, BRAKE

1 $60.90 $43.85
9 46331-S04-000 46331-S04-000 / PIPE E, R. BRAKE

1 $61.50 $44.28
10 46340-S04-L00 46340-S04-L00 / PIPE D, BRAKE

1 $62.93 $45.31
11 46360-S04-A01 46360-S04-A01 / PIPE F, BRAKE

1 $6.63 $4.78
12 46361-S04-000 46361-S04-000 / PIPE E, L. BRAKE

1 $41.03 $29.54
13 46380-SH3-000 46380-SH3-000 / GROMMET A, BRAKE PIPE

2 $3.83 $2.76
14 46391-SR3-J00 46391-SR3-J00 / CLAMP, BRAKE PIPE

2 $8.00 $5.76
15 46391-SR3-J10 46391-SR3-J10 / CLAMP, BRAKE PIPE

1 $12.07 $8.69
16 46392-SR3-000 46392-SR3-000 / CLIP, BRAKE PIPE

2 $10.13 $7.30
17 46392-S04-L00 46392-S04-L00 / CLIP, BRAKE PIPE

1 $13.25 $9.54
18 46393-SM4-951 46393-SM4-951 / CLIP C

1 $4.43 $3.19
19 46394-S04-003 46394-S04-003 / CLIP A

2 $0.78 $0.56
20 46462-SE0-000 46462-SE0-000 / BOLT, OIL

2 $5.52 $3.97
21 46472-568-000 46472-568-000 / GASKET, OIL BOLT

4 $3.15 $2.27
22 90222-S04-003 90222-S04-003 / NUT, SPECIAL (6MM)

1 $2.08 $1.50
23 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

1 $1.67 $1.20
24 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

6 $4.58 $3.30
25 93402-06012-08 93402-06012-08 / BOLT-WASHER (6X12)

5 $0.88 $0.64
26 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

4 $1.00 $0.72
27 95801-06045-08 95801-06045-08 / BOLT, FLANGE (6X45)

2 $1.20 $0.86
