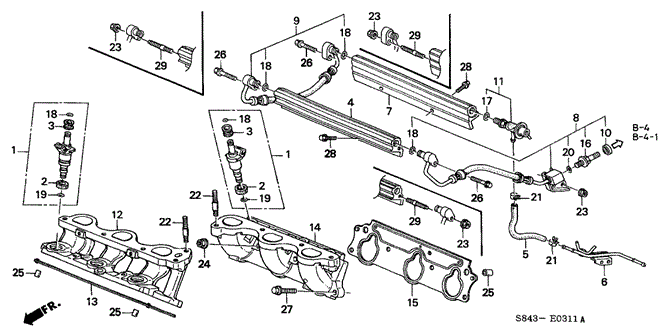

HOSE B, FUEL FEED in ENGINE/FUEL INJECTOR (V6) (2) for 1999 Honda ACCORD SEDAN

HOSE B, FUEL FEED in ENGINE/FUEL INJECTOR (V6) (2) for 1999 Honda ACCORD SEDAN #1
20
  • O-RING (13.3X1.9) - $2.82
2
  • SEAL RING, INJECTOR (NOK) - $1.42
  • SEAL RING, INJECTOR (OTSUKA) - $1.42
6
  • PIPE, FUEL RETURN - $12.38
9
  • HOSE, FUEL JOINT - $31.99
25
  • PIN, DOWEL (10X12) - $1.75
22
  • BOLT, STUD (8X32) - $0.94
23
  • NUT, FLANGE (6MM) - $0.17
23
  • NUT, FLANGE (6MM) - $0.17
18
  • O-RING (7.3X2.2) (NOK) - $1.67
  • O-RING - $1.67
25
  • PIN, DOWEL (10X12) - $1.75
7
  • PIPE, RR. FUEL - $17.03
3
  • CUSHION RING, INJECTOR (OTSUKA) - $2.60
  • CUSHION RING, INJECTOR (NOK) - $2.60
13
  • GASKET, FR. INJECTOR BASE (NIPPON LEAKLESS) - $14.99
26
  • BOLT, FLANGE (6X25) - $0.71
23
  • NUT, FLANGE (6MM) - $0.17
19
  • O-RING (10X1.7) - $3.20
28
  • BOLT, FLANGE (6X16) - $0.48
21
  • CLAMP, FUEL HOSE (D10.5) - $2.34
22
  • BOLT, STUD (8X32) - $0.94
10
  • RING, FUEL BOLT - $3.00
2
  • SEAL RING, INJECTOR (NOK) - $1.42
  • SEAL RING, INJECTOR (OTSUKA) - $1.42
23
  • NUT, FLANGE (6MM) - $0.17
18
  • O-RING (7.3X2.2) (NOK) - $1.67
  • O-RING - $1.67
3
  • CUSHION RING, INJECTOR (OTSUKA) - $2.60
  • CUSHION RING, INJECTOR (NOK) - $2.60
18
  • O-RING (7.3X2.2) (NOK) - $1.67
  • O-RING - $1.67
26
  • BOLT, FLANGE (6X25) - $0.71
14
  • BASE, RR. INJECTOR - $100.14
28
  • BOLT, FLANGE (6X16) - $0.48
16
  • BOLT, SEALING (12MM) - $8.12
12
  • BASE, FR. INJECTOR - $111.97
19
  • O-RING (10X1.7) - $3.20
8
  • HOSE B, FUEL FEED - $113.89
5
  • HOSE, FUEL RETURN - $12.56
1
  • INJECTOR SET, FUEL - $92.63
21
  • CLAMP, FUEL HOSE (D10.5) - $2.34
18
  • O-RING (7.3X2.2) (NOK) - $1.67
  • O-RING - $1.67
27
  • BOLT, FLANGE (8X28) - $0.86
15
  • GASKET, RR. INJECTOR BASE (NIPPON LEAKLESS) - $14.12
17
  • O-RING (9.8X1.9) - $1.07
1
  • INJECTOR SET, FUEL - $92.63
18
  • O-RING (7.3X2.2) (NOK) - $1.67
  • O-RING - $1.67
11
  • REGULATOR ASSY., PRESSURE - $106.62
4
  • PIPE, FR. FUEL - $15.54
24
  • NUT, FLANGE (8MM) - $0.18
26
  • BOLT, FLANGE (6X25) - $0.71
25
  • PIN, DOWEL (10X12) - $1.75
No. Part # Part # / Description Qty Req. List Price Price
1 06164-P8A-A00 06164-P8A-A00 / INJECTOR SET, FUEL

6 $128.65 $92.63
2 16472-P0H-A01 16472-P0H-A01 / SEAL RING, INJECTOR (NOK)

6 $1.97 $1.42
2 16472-P0H-A01 16472-P0H-A01 / SEAL RING, INJECTOR (OTSUKA)

6 $1.97 $1.42
3 16473-PD6-000 16473-PD6-000 / CUSHION RING, INJECTOR (OTSUKA)

6 $3.62 $2.60
3 16473-P10-A01 16473-P10-A01 / CUSHION RING, INJECTOR (NOK)

6 $3.62 $2.60
4 16611-P8A-A01 16611-P8A-A01 / PIPE, FR. FUEL

1 $21.58 $15.54
5 16613-P8A-A00 16613-P8A-A00 / HOSE, FUEL RETURN

1 $17.45 $12.56
6 16615-P8A-A00 16615-P8A-A00 / PIPE, FUEL RETURN

1 $17.20 $12.38
7 16621-P8A-A01 16621-P8A-A01 / PIPE, RR. FUEL

1 $23.65 $17.03
8 16722-P8A-A03 16722-P8A-A03 / HOSE B, FUEL FEED

1 $158.18 $113.89
9 16723-P8A-A02 16723-P8A-A02 / HOSE, FUEL JOINT

1 $44.43 $31.99
10 16729-P8A-A01 16729-P8A-A01 / RING, FUEL BOLT

1 $4.17 $3.00
11 16740-P8A-M01 16740-P8A-M01 / REGULATOR ASSY., PRESSURE

1 $148.08 $106.62
12 17050-P8A-A00 17050-P8A-A00 / BASE, FR. INJECTOR

1 $155.52 $111.97
13 17055-P8A-A01 17055-P8A-A01 / GASKET, FR. INJECTOR BASE (NIPPON LEAKLESS)

1 $20.82 $14.99
14 17060-P8A-A00 17060-P8A-A00 / BASE, RR. INJECTOR

1 $139.08 $100.14
15 17065-P8A-A01 17065-P8A-A01 / GASKET, RR. INJECTOR BASE (NIPPON LEAKLESS)

1 $19.62 $14.12
16 90025-P8A-A02 90025-P8A-A02 / BOLT, SEALING (12MM)

1 $11.28 $8.12
17 91301-PM5-A01 91301-PM5-A01 / O-RING (9.8X1.9)

1 $1.48 $1.07
18 91301-P2F-A01 91301-P2F-A01 / O-RING (7.3X2.2) (NOK)

9 $2.32 $1.67
18 91301-P2F-A01 91301-P2F-A01 / O-RING

9 $2.32 $1.67
19 91302-P0A-A00 91302-P0A-A00 / O-RING (10X1.7)

6 $4.45 $3.20
20 91303-P8A-A01 91303-P8A-A01 / O-RING (13.3X1.9)

1 $3.92 $2.82
21 91406-SL4-931 91406-SL4-931 / CLAMP, FUEL HOSE (D10.5)

2 $3.25 $2.34
22 92900-08032-1B 92900-08032-1B / BOLT, STUD (8X32)

3 $1.30 $0.94
23 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
24 94050-08080 94050-08080 / NUT, FLANGE (8MM)

4 $0.25 $0.18
25 94301-10120 94301-10120 / PIN, DOWEL (10X12)

4 $2.43 $1.75
26 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

3 $0.98 $0.71
27 95701-08028-08 95701-08028-08 / BOLT, FLANGE (8X28)

5 $1.20 $0.86
28 96001-06016-00 96001-06016-00 / BOLT, FLANGE (6X16)

4 $0.67 $0.48
