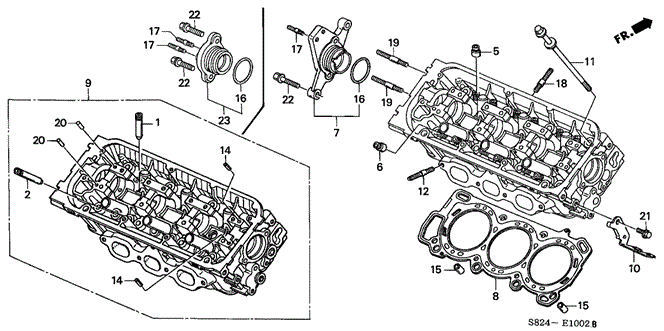

CYLINDER HEAD ASSY., RR. in ENGINE/REAR CYLINDER HEAD (V6) for 1998 Honda ACCORD COUPE

CYLINDER HEAD ASSY., RR. in ENGINE/REAR CYLINDER HEAD (V6) for 1998 Honda ACCORD COUPE #1
6
  • SEAL B, VALVE STEM (NOK) - $1.15
17
  • BOLT, STUD (6X12) - $0.55
16
  • O-RING (48.5X2.4) - $0.86
1
  • GUIDE, VALVE (OVER SIZE) - $7.30
19
  • BOLT, STUD (8X32) - $0.94
9
  • CYLINDER HEAD ASSY., RR. - $1,171.06
  • CYLINDER HEAD ASSY., RR. - $1,171.06
11
  • BOLT-WASHER (12X163) - $6.83
14
  • PIN, DOWEL (6X10) - $1.84
22
  • BOLT, FLANGE (8X28) - $0.86
18
  • BOLT, STUD (8X25) - $0.89
22
  • BOLT, FLANGE (8X28) - $0.86
2
  • GUIDE, EX. VALVE (OVER SIZE) - $8.00
21
  • BOLT, FLANGE (8X12) - $0.71
15
  • PIN, DOWEL (16X22) - $1.62
22
  • BOLT, FLANGE (8X28) - $0.86
20
  • PIN, DOWEL (6X10) - $0.85
12
  • BOLT, STUD (8X41) - $2.08
5
  • SEAL A, VALVE STEM (NOK) - $1.15
  • SEAL A, VALVE STEM (ARAI) - $1.15
10
  • STAY, SENSOR CONNECTOR - $116.80
8
  • GASKET, CYLINDER HEAD (NIPPON LEAKLESS) - $43.42
17
  • BOLT, STUD (6X12) - $0.55
20
  • PIN, DOWEL (6X10) - $0.85
17
  • BOLT, STUD (6X12) - $0.55
14
  • PIN, DOWEL (6X10) - $1.84
19
  • BOLT, STUD (8X32) - $0.94
7
  • COVER ASSY., RR. CAMSHAFT THRUST - $10.31
16
  • O-RING (48.5X2.4) - $0.86
15
  • PIN, DOWEL (16X22) - $1.62
No. Part # Part # / Description Qty Req. List Price Price
1 12204-PJ7-305 12204-PJ7-305 / GUIDE, VALVE (OVER SIZE)

6 $10.13 $7.30
2 12205-PJ7-305 12205-PJ7-305 / GUIDE, EX. VALVE (OVER SIZE)

6 $11.12 $8.00
5 12210-PZ1-004 12210-PZ1-004 / SEAL A, VALVE STEM (NOK)

6 $1.75 $1.15
5 12210-PZ1-004 12210-PZ1-004 / SEAL A, VALVE STEM (ARAI)

6 $1.75 $1.15
6 12211-PZ1-004 12211-PZ1-004 / SEAL B, VALVE STEM (NOK)

6 $1.75 $1.15
7 12240-P8A-A00 12240-P8A-A00 / COVER ASSY., RR. CAMSHAFT THRUST

1 $14.32 $10.31
8 12251-P8C-A01 12251-P8C-A01 / GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

1 $60.30 $43.42
9 12300-P8C-306 12300-P8C-306 / CYLINDER HEAD ASSY., RR.

1 $1,626.47 $1,171.06
9 12300-P8C-306 12300-P8C-306 / CYLINDER HEAD ASSY., RR.

1 $1,626.47 $1,171.06
10 32113-P8A-A00 32113-P8A-A00 / STAY, SENSOR CONNECTOR

1 $162.22 $116.80
11 90005-PT0-003 90005-PT0-003 / BOLT-WASHER (12X163)

8 $9.48 $6.83
12 90026-P8A-A00 90026-P8A-A00 / BOLT, STUD (8X41)

5 $2.88 $2.08
14 90701-P8A-A00 90701-P8A-A00 / PIN, DOWEL (6X10)

2 $2.55 $1.84
15 90705-PT0-000 90705-PT0-000 / PIN, DOWEL (16X22)

2 $2.25 $1.62
16 91301-P8A-A00 91301-P8A-A00 / O-RING (48.5X2.4)

1 $1.20 $0.86
17 92900-06012-1B 92900-06012-1B / BOLT, STUD (6X12)

2 $0.77 $0.55
18 92900-08025-1B 92900-08025-1B / BOLT, STUD (8X25)

2 $1.23 $0.89
19 92900-08032-1B 92900-08032-1B / BOLT, STUD (8X32)

2 $1.30 $0.94
20 94302-06100 94302-06100 / PIN, DOWEL (6X10)

2 $1.18 $0.85
21 95701-08012-08 95701-08012-08 / BOLT, FLANGE (8X12)

1 $0.98 $0.71
22 95701-08028-08 95701-08028-08 / BOLT, FLANGE (8X28)

2 $1.20 $0.86
