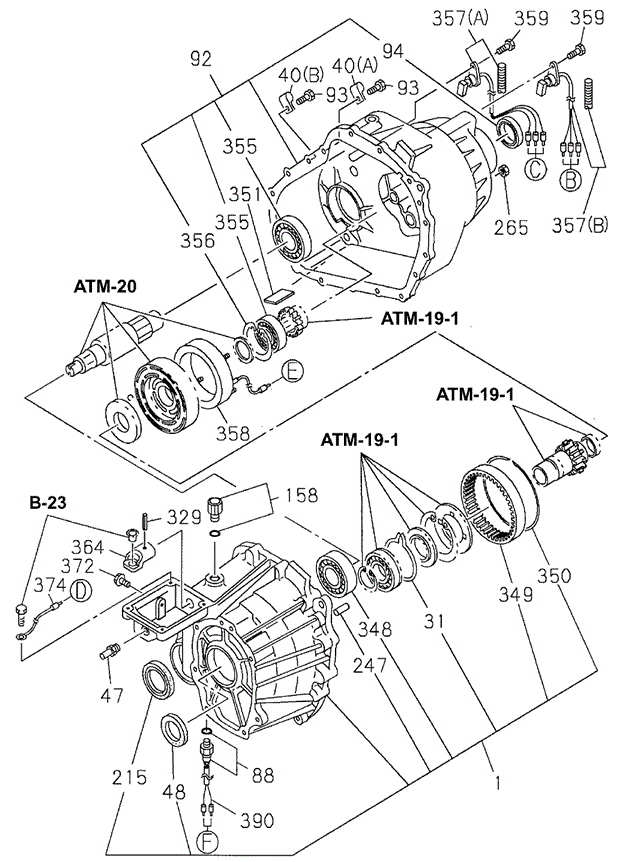

CASE, TRANSFER in TRANSMISSION - AUTOMATIC/AT TRANSFER CASE - GEAR SHIFTER for 1998 Acura SLX

CASE, TRANSFER in TRANSMISSION - AUTOMATIC/AT TRANSFER CASE - GEAR SHIFTER for 1998 Acura SLX #1
88
  • SWITCH (4WD TRANSFER) - $48.93
390
  • WIRE HARNESS, SWITCH
351
  • MAGNET, TRANSMISSION CASE - $5.08
265
  • NUT, TRANSFER CASE - $1.59
158
  • PLUG, DETENT BALL - $58.46
94
  • OIL SEAL, COVER - $23.60
93
  • BOLT, TRANSFER CASE - $5.00
374
  • WIRE, POWER GROUND - $9.90
92
  • COVER, RR. TRANSFER - $850.17
1
  • CASE, TRANSFER - $1,121.58
329
  • PIN, SPRING - $0.81
356
  • RING, SNAP (BEARING) - $3.78
364
  • LEVER, GUIDE - $54.07
48
  • OIL SEAL - $25.17
359
  • BOLT, SENSOR - $0.73
372
  • BOLT, SHIFT GUIDE - $5.00
359
  • BOLT, SENSOR - $0.73
31
  • RING, SNAP (INPUT) - $8.98
358
  • COIL, TRANSFER - $125.23
93
  • BOLT, TRANSFER CASE - $5.00
355
  • BEARING, FR. (OUTPUT) - $32.68
47
  • BREATHER, TRANSFER CASE - $5.44
247
  • PIN, DOWEL - $3.59
215
  • OIL SEAL, COVER - $23.60
348
  • BEARING, FR. (OUTPUT) - $32.68
355
  • BEARING, FR. (OUTPUT) - $32.68
349
  • GEAR, RING - $153.07
350
  • RING, SNAP (RING GEAR) - $6.70
No. Part # Part # / Description Qty Req. List Price Price
1 8-97181-309-0 8-97181-309-0 / CASE, TRANSFER

1 $1,351.30 $1,121.58
31 8-97129-002-0 8-97129-002-0 / RING, SNAP (INPUT)

1 $10.82 $8.98
N/A 8-97129-219-0 8-97129-219-0 / CLIP, HARNESS

1 $5.27 $4.37
N/A 8-97129-218-0 8-97129-218-0 / CLIP, HARNESS

1 $6.03 $5.00
47 8-97129-053-0 8-97129-053-0 / BREATHER, TRANSFER CASE

1 $6.55 $5.44
48 8-97129-041-0 8-97129-041-0 / OIL SEAL

1 $30.33 $25.17
88 8-97181-620-0 8-97181-620-0 / SWITCH (4WD TRANSFER)

1 $58.95 $48.93
92 8-97181-313-0 8-97181-313-0 / COVER, RR. TRANSFER

1 $1,024.30 $850.17
93 8-97129-274-0 8-97129-274-0 / BOLT, TRANSFER CASE

16 $6.03 $5.00
215 8-97129-040-0 8-97129-040-0 / OIL SEAL, COVER

1 $28.43 $23.60
158 8-97187-679-0 8-97187-679-0 / PLUG, DETENT BALL

1 $70.43 $58.46
247 8-97129-039-0 8-97129-039-0 / PIN, DOWEL

2 $4.32 $3.59
265 8-97129-272-0 8-97129-272-0 / NUT, TRANSFER CASE

3 $1.92 $1.59
329 8-97129-329-0 8-97129-329-0 / PIN, SPRING

1 $0.98 $0.81
355 8-97129-037-0 8-97129-037-0 / BEARING, FR. (OUTPUT)

2 $39.37 $32.68
349 8-97129-038-0 8-97129-038-0 / GEAR, RING

1 $184.42 $153.07
350 8-97129-042-0 8-97129-042-0 / RING, SNAP (RING GEAR)

1 $8.07 $6.70
351 8-97129-228-0 8-97129-228-0 / MAGNET, TRANSMISSION CASE

1 $6.12 $5.08
356 8-97129-268-0 8-97129-268-0 / RING, SNAP (BEARING)

1 $4.55 $3.78
N/A 8-97251-686-0 8-97251-686-0 / SENSOR SPEED

1 $463.02 $384.31
N/A 8-97251-685-0 8-97251-685-0 / SENSOR SPEED

1 $463.02 $384.31
358 8-97181-617-0 8-97181-617-0 / COIL, TRANSFER

1 $150.88 $125.23
359 8-97129-279-0 8-97129-279-0 / BOLT, SENSOR

2 $0.88 $0.73
364 8-97181-618-0 8-97181-618-0 / LEVER, GUIDE

1 $65.15 $54.07
372 8-97129-281-0 8-97129-281-0 / BOLT, SHIFT GUIDE

1 $6.03 $5.00
374 8-97181-629-0 8-97181-629-0 / WIRE, POWER GROUND

1 $11.93 $9.90
390 8-97181-315-0 8-97181-315-0 / WIRE HARNESS, SWITCH

1 - -
