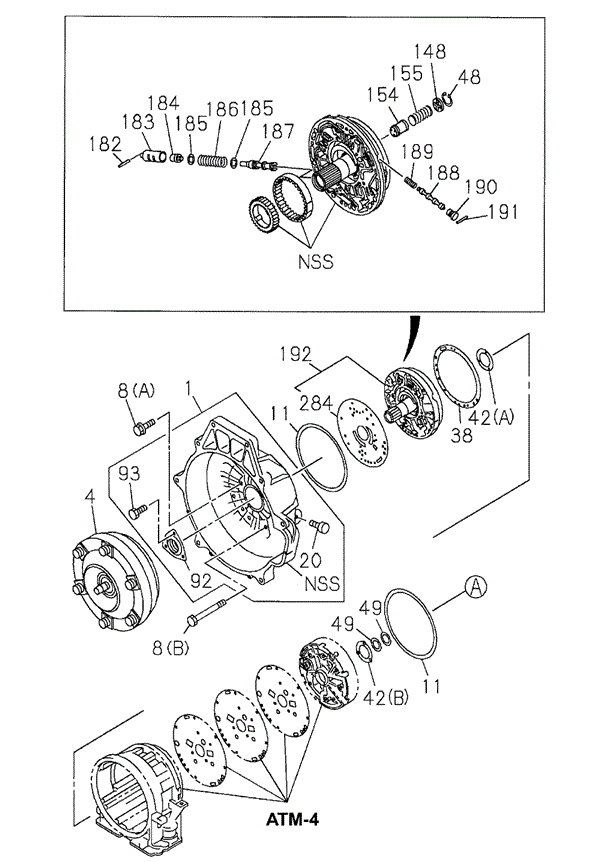

CONVERTER ASM TORQU in TRANSMISSION - AUTOMATIC/AT CONVERTER HOUSING for 1998 Acura SLX

CONVERTER ASM TORQU in TRANSMISSION - AUTOMATIC/AT CONVERTER HOUSING for 1998 Acura SLX #1
183
  • SLEEVE, BOOST VALVE - $15.15
154
  • PISTON, ACCUMULATOR - $16.93
284
  • PLATE, OIL PUMP - $28.84
192
  • OIL PUMP KIT - $733.45
38
  • GASKET, OIL PUMP - $9.79
93
  • BOLT, COVER & BUSHING - $3.82
48
  • RING, SNAP - $3.13
1
  • HOUSING, A/T - $278.86
188
  • VALVE, CLUTCH CONTROL - $12.05
190
  • PLUG, CLUTCH CONTROL VALVE - $2.93
155
  • SPRING, SERVO - $5.04
182
  • PIN, BOOST VALVE SLEEVE - $2.41
148
  • RETAINER, SPRING - $2.76
191
  • PIN, SPRING - $2.30
20
  • PLUG, TAPER - $3.80
187
  • VALVE, PRESSURE REGULATOR - $13.55
185
  • SEAT, SPRING REGULATOR VALVE - $2.70
189
  • SPRING, CLUTCH CONTROL VALVE - $5.15
184
  • VALVE, BOOST - $5.66
185
  • SEAT, SPRING REGULATOR VALVE - $2.70
4
  • CONVERTER ASM TORQU - $1,329.85
92
  • COVER ASSY. - $30.31
186
  • SPRING, REGULATOR VALVE - $6.17
49
  • RING, OIL SEAL - $8.66
49
  • RING, OIL SEAL - $8.66
11
  • RING, SEALING - $16.43
11
  • RING, SEALING - $16.43
No. Part # Part # / Description Qty Req. List Price Price
1 8-96041-653-0 8-96041-653-0 / HOUSING, A/T

1 $335.98 $278.86
4 8-24211-229-0 8-24211-229-0 / CONVERTER ASM TORQU

1 $1,602.23 $1,329.85
N/A 8-96018-559-0 8-96018-559-0 / BOLT, HOUSING TO CASE

7 $7.60 $6.31
N/A 8-96013-210-0 8-96013-210-0 / BOLT, HOUSING

5 $5.12 $4.25
11 8-96017-189-0 8-96017-189-0 / RING, SEALING

2 $19.80 $16.43
20 8-08662-173-0 8-08662-173-0 / PLUG, TAPER

1 $4.58 $3.80
38 8-96014-973-0 8-96014-973-0 / GASKET, OIL PUMP

1 $11.80 $9.79
N/A 8-96013-761-0 8-96013-761-0 / WASHER, OIL PUMP HOUSING (YELLOW)

1 $5.05 $4.19
N/A 8-96017-289-0 8-96017-289-0 / WASHER, OIL PUMP HOUSING (YELLOW)

1 $17.10 $14.19
48 8-96014-406-0 8-96014-406-0 / RING, SNAP

1 $3.77 $3.13
49 8-96017-553-0 8-96017-553-0 / RING, OIL SEAL

2 $10.43 $8.66
92 8-96015-187-0 8-96015-187-0 / COVER ASSY.

1 $36.52 $30.31
93 8-96015-215-0 8-96015-215-0 / BOLT, COVER & BUSHING

3 $4.60 $3.82
148 8-96014-405-0 8-96014-405-0 / RETAINER, SPRING

1 $3.32 $2.76
154 8-96014-403-0 8-96014-403-0 / PISTON, ACCUMULATOR

1 $20.40 $16.93
155 8-96014-404-0 8-96014-404-0 / SPRING, SERVO

1 $6.07 $5.04
182 8-08958-824-0 8-08958-824-0 / PIN, BOOST VALVE SLEEVE

1 $2.90 $2.41
183 8-96014-996-0 8-96014-996-0 / SLEEVE, BOOST VALVE

1 $18.25 $15.15
184 8-96014-997-0 8-96014-997-0 / VALVE, BOOST

1 $6.82 $5.66
185 8-05258-219-0 8-05258-219-0 / SEAT, SPRING REGULATOR VALVE

2 $3.25 $2.70
186 8-96017-526-0 8-96017-526-0 / SPRING, REGULATOR VALVE

1 $7.43 $6.17
187 8-96016-072-0 8-96016-072-0 / VALVE, PRESSURE REGULATOR

1 $16.32 $13.55
188 8-96014-396-0 8-96014-396-0 / VALVE, CLUTCH CONTROL

1 $14.52 $12.05
189 8-96014-397-0 8-96014-397-0 / SPRING, CLUTCH CONTROL VALVE

1 $6.20 $5.15
190 8-96013-218-0 8-96013-218-0 / PLUG, CLUTCH CONTROL VALVE

1 $3.53 $2.93
191 8-96013-658-0 8-96013-658-0 / PIN, SPRING

1 $2.77 $2.30
192 8-96041-664-0 8-96041-664-0 / OIL PUMP KIT

1 $883.68 $733.45
284 8-96023-507-0 8-96023-507-0 / PLATE, OIL PUMP

1 $34.75 $28.84
