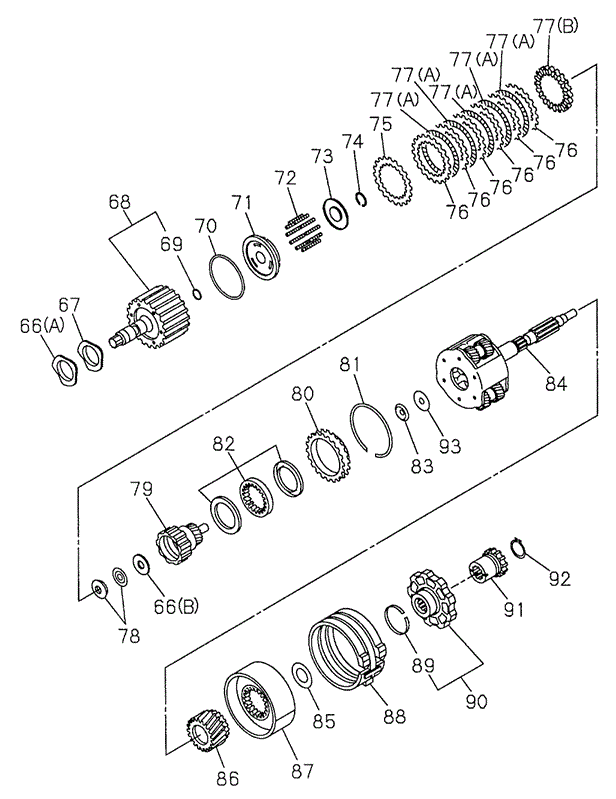

CARRIER ASSY., PLANETARY in TRANSMISSION - AUTOMATIC/AT CLUTCH (2) for 1998 Acura SLX

CARRIER ASSY., PLANETARY in TRANSMISSION - AUTOMATIC/AT CLUTCH (2) for 1998 Acura SLX #1
76
  • PLATE, CLUTCH (3RD) - $9.63
93
  • WASHER, OUTPUT SHAFT - $3.22
76
  • PLATE, CLUTCH (3RD) - $9.63
92
  • RING, RETAINER - $2.78
85
  • THRUST BEARING KIT - $14.92
81
  • RING, RETAINER - $3.30
87
  • DRUM, REACTION SUN - $100.39
82
  • SPRAG KIT - $86.83
76
  • PLATE, CLUTCH (3RD) - $9.63
70
  • SEAL (OUTER) (3RD CLUTCH PISTON) - $7.99
83
  • BEARING, OUTPUT SHAFT - $5.74
76
  • PLATE, CLUTCH (3RD) - $9.63
68
  • DRUM (3RD CLUTCH) - $189.80
72
  • SPRING, PISTON CLUTCH - $2.14
84
  • CARRIER ASSY., PLANETARY - $2,174.24
79
  • GEAR ASSY., INPUT SUN - $289.96
69
  • SEAL (INNER) (3RD CLUTCH PISTON) - $6.03
80
  • RACE, SPRAG - $91.01
90
  • WHEEL, PARKING LOCK - $235.84
75
  • PLATE, SPRING - $19.52
71
  • PISTON, CLUTCH (3RD) - $105.04
76
  • PLATE, CLUTCH (3RD) - $9.63
88
  • BAND, BRAKE - $238.56
78
  • WASHER THRUST BEARING KIT - $9.40
76
  • PLATE, CLUTCH (3RD) - $9.63
67
  • WASHER, THRUST - $7.53
86
  • GEAR, REACTION SUN - $306.25
73
  • SEAT, SPRING (3RD CLUTCH) - $3.30
91
  • WHEEL, SPEED - $23.38
89
  • SEAL, RING - $16.25
74
  • RING, RETAINER - $2.32
No. Part # Part # / Description Qty Req. List Price Price
N/A 8-96013-403-0 8-96013-403-0 / WASHER, THRUST (3RD CLUTCH)

1 $14.72 $12.22
N/A 8-96015-459-0 8-96015-459-0 / WASHER, THRUST (3RD CLUTCH)

1 $7.07 $5.87
67 8-05258-945-0 8-05258-945-0 / WASHER, THRUST

1 $9.07 $7.53
68 8-96041-095-0 8-96041-095-0 / DRUM (3RD CLUTCH)

1 $228.67 $189.80
69 8-96018-543-0 8-96018-543-0 / SEAL (INNER) (3RD CLUTCH PISTON)

1 $7.27 $6.03
70 8-96014-296-0 8-96014-296-0 / SEAL (OUTER) (3RD CLUTCH PISTON)

1 $9.63 $7.99
71 8-96016-223-0 8-96016-223-0 / PISTON, CLUTCH (3RD)

1 $126.55 $105.04
72 8-08958-719-0 8-08958-719-0 / SPRING, PISTON CLUTCH

12 $2.58 $2.14
73 8-05258-039-0 8-05258-039-0 / SEAT, SPRING (3RD CLUTCH)

1 $3.97 $3.30
74 8-05258-094-0 8-05258-094-0 / RING, RETAINER

1 $2.80 $2.32
75 8-96017-603-0 8-96017-603-0 / PLATE, SPRING

1 $23.52 $19.52
76 8-05258-955-0 8-05258-955-0 / PLATE, CLUTCH (3RD)

6 $11.60 $9.63
N/A 8-96017-371-0 8-96017-371-0 / PLATE ASSY., CLUTCH (3RD)

5 $13.80 $11.45
N/A 8-96017-370-0 8-96017-370-0 / PLATE ASSY., CLUTCH (3RD)

1 $15.35 $12.74
78 8-96040-078-0 8-96040-078-0 / WASHER THRUST BEARING KIT

1 $11.32 $9.40
79 8-96016-253-0 8-96016-253-0 / GEAR ASSY., INPUT SUN

1 $349.35 $289.96
80 8-96017-373-0 8-96017-373-0 / RACE, SPRAG

1 $109.65 $91.01
81 8-08958-684-0 8-08958-684-0 / RING, RETAINER

1 $3.98 $3.30
82 8-96017-149-0 8-96017-149-0 / SPRAG KIT

1 $104.62 $86.83
83 8-96014-602-0 8-96014-602-0 / BEARING, OUTPUT SHAFT

1 $6.92 $5.74
84 8-96017-348-0 8-96017-348-0 / CARRIER ASSY., PLANETARY

1 $2,619.57 $2,174.24
85 8-96016-084-0 8-96016-084-0 / THRUST BEARING KIT

1 $17.97 $14.92
86 8-96015-037-0 8-96015-037-0 / GEAR, REACTION SUN

1 $368.97 $306.25
87 8-96018-009-0 8-96018-009-0 / DRUM, REACTION SUN

1 $120.95 $100.39
88 8-96014-805-0 8-96014-805-0 / BAND, BRAKE

1 $287.42 $238.56
89 8-05258-837-0 8-05258-837-0 / SEAL, RING

1 $19.58 $16.25
90 8-96016-669-0 8-96016-669-0 / WHEEL, PARKING LOCK

1 $284.15 $235.84
91 8-96015-053-0 8-96015-053-0 / WHEEL, SPEED

1 $28.17 $23.38
92 8-96015-123-0 8-96015-123-0 / RING, RETAINER

1 $3.35 $2.78
93 8-96014-607-0 8-96014-607-0 / WASHER, OUTPUT SHAFT

1 $3.88 $3.22
