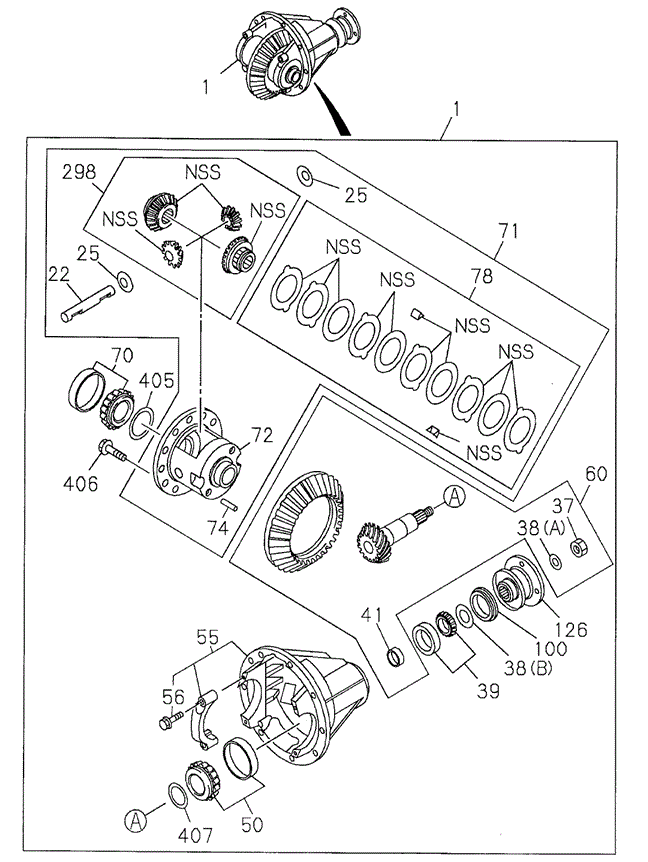

DRIVE ASSY., RR. in CHASSIS/REAR FINAL DRIVE for 1998 Acura SLX

DRIVE ASSY., RR. in CHASSIS/REAR FINAL DRIVE for 1998 Acura SLX #1
100
  • OIL SEAL, FINAL PINION - $20.09
39
  • BEARING, FINAL PINION - $43.16
56
  • BOLT - $7.16
37
  • NUT, DRIVING PINION - $15.02
41
  • COLLAR, DISTANCE COLLAPSIBLE - $25.65
72
  • CAGE, DIFFERENTIAL - $464.84
50
  • BEARING, FINAL PINION - $89.93
1
  • DRIVE ASSY., RR. - $3,074.05
78
  • DISK, FRICTION - $175.36
298
  • GEAR KIT, RR. DIFFERENTIAL AXLE - $725.64
25
  • WASHER, THRUST - $1.14
70
  • BEARING, DIFFERENTIAL CAGE - $54.82
60
  • GEAR SET, FINAL DRIVE - $867.50
22
  • PIN, CROSS DIFFERENTIAL PINION - $13.16
25
  • WASHER, THRUST - $1.14
406
  • BOLT SET, FINAL DRIVE GEAR - $11.91
1
  • DRIVE ASSY., RR. - $3,074.05
126
  • COUPLING, DRIVING PINION - $142.35
405
  • SHIM SET - $7.55
407
  • SHIM, PINION FINAL DRIVE - $55.65
55
  • CARRIER, DIFFERENTIAL - $660.56
74
  • PIN, LOCK - $0.85
No. Part # Part # / Description Qty Req. List Price Price
1 8-97144-066-0 8-97144-066-0 / DRIVE ASSY., RR.

1 $3,703.67 $3,074.05
22 8-97182-786-0 8-97182-786-0 / PIN, CROSS DIFFERENTIAL PINION

1 $15.85 $13.16
25 8-97182-784-0 8-97182-784-0 / WASHER, THRUST

2 $1.37 $1.14
37 8-97182-811-0 8-97182-811-0 / NUT, DRIVING PINION

1 $18.10 $15.02
N/A 8-97182-808-0 8-97182-808-0 / WASHER, PLAIN

1 $2.77 $2.30
N/A 8-97179-933-0 8-97179-933-0 / WASHER, PLAIN

1 $0.83 $0.69
39 8-97179-939-0 8-97179-939-0 / BEARING, FINAL PINION

1 $52.00 $43.16
41 8-97179-934-0 8-97179-934-0 / COLLAR, DISTANCE COLLAPSIBLE

1 $30.90 $25.65
50 8-97184-212-0 8-97184-212-0 / BEARING, FINAL PINION

1 $108.35 $89.93
55 8-97182-776-0 8-97182-776-0 / CARRIER, DIFFERENTIAL

1 $795.85 $660.56
56 8-97161-634-0 8-97161-634-0 / BOLT

4 $8.63 $7.16
60 8-97182-828-0 8-97182-828-0 / GEAR SET, FINAL DRIVE

1 $1,045.18 $867.50
70 8-97184-211-0 8-97184-211-0 / BEARING, DIFFERENTIAL CAGE

2 $66.05 $54.82
72 8-97182-816-0 8-97182-816-0 / CAGE, DIFFERENTIAL

1 $560.05 $464.84
74 8-97182-796-0 8-97182-796-0 / PIN, LOCK

1 $1.02 $0.85
78 8-97184-213-0 8-97184-213-0 / DISK, FRICTION

1 $211.28 $175.36
100 8-97179-937-0 8-97179-937-0 / OIL SEAL, FINAL PINION

1 $24.20 $20.09
126 8-97182-810-0 8-97182-810-0 / COUPLING, DRIVING PINION

1 $171.50 $142.35
298 8-97184-214-0 8-97184-214-0 / GEAR KIT, RR. DIFFERENTIAL AXLE

1 $874.27 $725.64
405 8-97184-210-0 8-97184-210-0 / SHIM SET

1 $9.10 $7.55
406 8-97182-798-0 8-97182-798-0 / BOLT SET, FINAL DRIVE GEAR

1 $14.35 $11.91
407 8-97179-935-0 8-97179-935-0 / SHIM, PINION FINAL DRIVE

1 $67.05 $55.65
