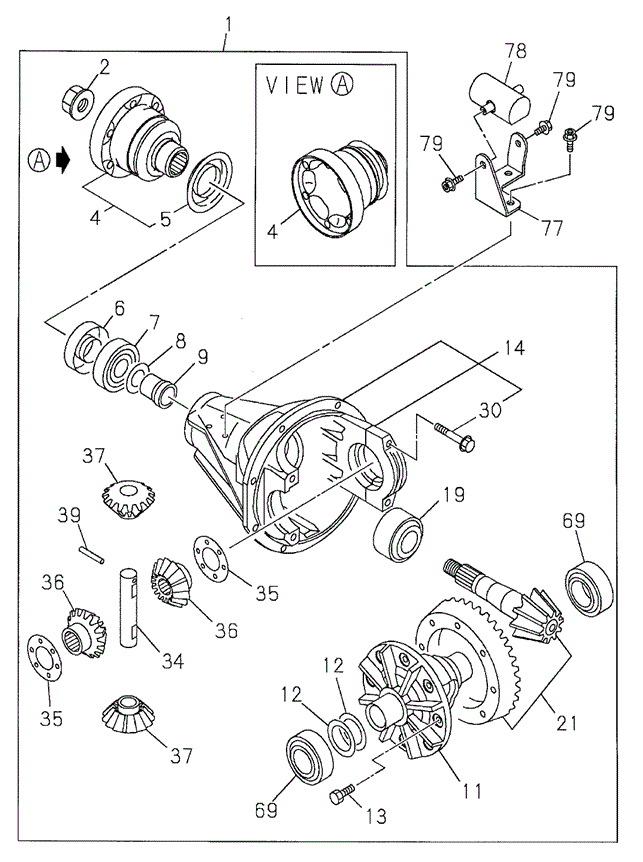

DRIVE ASM FINAL FRT in CHASSIS/FRONT FINAL DRIVE for 1998 Acura SLX

DRIVE ASM FINAL FRT in CHASSIS/FRONT FINAL DRIVE for 1998 Acura SLX #1
79
  • BOLT, BRACKET - $1.01
69
  • BEARING, DIFFERENTIAL CAGE (NSK) - $36.69
9
  • COLLAR, DIST PINION - $11.21
21
  • GEAR SET, FINAL DRIVE (43/10) - $920.99
19
  • BEARING, PINION INN - $50.28
12
  • SHIM (0.50MM) - $1.39
  • SHIM (0.10MM) - $1.39
  • SHIM, FINAL PINION CAGE (T=0.24) - $1.08
  • SHIM, FINAL PINION CAGE (T=0.15) - $1.08
14
  • CARRIER ASSY., FINAL DRIVE - $776.15
  • CARRIER ASSY. FINAL DRIVE, FR.AXLE - $776.15
  • CARRIER ASSY., FINAL - $776.15
36
  • GEAR SIDE,DIFF - $147.97
  • GEAR - $147.97
35
  • WASHER, THRUST SIDE GEAR (T=1.1) - $6.70
  • WASHER, THRUST SIDE GEAR (T=1.0) - $6.70
  • WASHER, THRUST SIDE GEAR (T=1.0) - $6.70
37
  • GEAR, PINION DIFFERENTIAL - $95.66
77
  • BRACKET, DAMPER - $32.68
4
  • COUPLING FINAL DRIVE - $53.22
  • COUPLING FINAL DRIVE - $143.81
  • COUPLING, FINAL DRIVE PINION - $53.22
  • COUPLING, FINAL DRIVE PINION - $143.81
34
  • PIN, CROSS DIFFERENTIAL PINION - $14.61
7
  • BEARING, PINION (OUTER) - $35.81
39
  • PIN, LOCK CROSS - $0.72
2
  • NUT (18) - $6.64
36
  • GEAR SIDE,DIFF - $147.97
  • GEAR - $147.97
5
  • COVER:DUST,PINION,FI - $4.69
13
  • BOLT (10X17) - $2.91
37
  • GEAR, PINION DIFFERENTIAL - $95.66
30
  • BOLT - $4.33
11
  • CAGE, FINAL PINION - $252.72
35
  • WASHER, THRUST SIDE GEAR (T=1.1) - $6.70
  • WASHER, THRUST SIDE GEAR (T=1.0) - $6.70
  • WASHER, THRUST SIDE GEAR (T=1.0) - $6.70
12
  • SHIM (0.50MM) - $1.39
  • SHIM (0.10MM) - $1.39
  • SHIM, FINAL PINION CAGE (T=0.24) - $1.08
  • SHIM, FINAL PINION CAGE (T=0.15) - $1.08
6
  • OIL SEAL, FINAL PIN - $9.63
8
  • SHIM, PINION FINAL DRIVE (T=2.44) - $5.29
  • SHIM, PINION FINAL DRIVE (T=2.42) - $4.81
  • SHIM, PINION FINAL DRIVE (T=2.50) - $9.69
  • SHIM, PINION FINAL DRIVE (T=2.30) - $5.21
  • SHIM, PINION FINAL DRIVE (T=2.26) - $5.21
  • SHIM, PINION FINAL DRIVE (T=2.54) - $4.81
  • SHIM, PINION FINAL DRIVE (T=2.18) - $5.62
  • SHIM, PINION FINAL DRIVE (T=2.28) - $5.21
  • SHIM, PINION FINAL DRIVE (T=2.56) - $5.21
  • SHIM, PINION FINAL DRIVE (T=2.34) - $5.21
  • SHIM, PINION FINAL DRIVE (T=2.36) - $5.29
  • SHIM, PINION FINAL DRIVE (T=2.40) - $5.29
  • SHIM, PINION FINAL DRIVE (T=2.52) - $5.29
  • SHIM, PINION FINAL DRIVE (T=2.38) - $4.71
  • SHIM, PINION FINAL DRIVE (T=2.20) - $5.29
  • SHIM, PINION FINAL DRIVE (T=2.32) - $5.04
  • SHIM, PINION FINAL DRIVE (T=2.48) - $5.21
  • SHIM, PINION FINAL DRIVE (T=2.46) - $4.71
  • SHIM, PINION FINAL DRIVE (T=2.22) - $5.62
  • SHIM, PINION FINAL DRIVE (T=2.24) - $5.21
4
  • COUPLING FINAL DRIVE - $53.22
  • COUPLING FINAL DRIVE - $143.81
  • COUPLING, FINAL DRIVE PINION - $53.22
  • COUPLING, FINAL DRIVE PINION - $143.81
1
  • DRIVE ASM FINAL FRT - $2,465.20
79
  • BOLT, BRACKET - $1.01
79
  • BOLT, BRACKET - $1.01
78
  • DAMPER, FINAL DRIVE - $48.24
69
  • BEARING, DIFFERENTIAL CAGE (NSK) - $36.69
No. Part # Part # / Description Qty Req. List Price Price
1 8-97241-273-0 8-97241-273-0 / DRIVE ASM FINAL FRT

1 $2,970.12 $2,465.20
2 8-94376-262-0 8-94376-262-0 / NUT (18)

1 $8.00 $6.64
4 8-94318-527-6 8-94318-527-6 / COUPLING FINAL DRIVE

1 $64.12 $53.22
4 8-97139-548-2 8-97139-548-2 / COUPLING FINAL DRIVE

1 $173.27 $143.81
4 8-94318-527-6 8-94318-527-6 / COUPLING, FINAL DRIVE PINION

1 $64.12 $53.22
4 8-97139-548-2 8-97139-548-2 / COUPLING, FINAL DRIVE PINION

1 $173.27 $143.81
5 8-94318-409-1 8-94318-409-1 / COVER:DUST,PINION,FI

1 $5.65 $4.69
6 8-94318-520-2 8-94318-520-2 / OIL SEAL, FINAL PIN

1 $11.60 $9.63
7 8-94472-099-0 8-94472-099-0 / BEARING, PINION (OUTER)

1 $43.15 $35.81
8 9-41519-166-1 9-41519-166-1 / SHIM, PINION FINAL DRIVE (T=2.44)

1 $6.37 $5.29
8 9-41519-165-1 9-41519-165-1 / SHIM, PINION FINAL DRIVE (T=2.42)

1 $5.80 $4.81
8 9-41519-169-1 9-41519-169-1 / SHIM, PINION FINAL DRIVE (T=2.50)

1 $11.68 $9.69
8 9-41519-159-1 9-41519-159-1 / SHIM, PINION FINAL DRIVE (T=2.30)

1 $6.28 $5.21
8 9-41519-157-1 9-41519-157-1 / SHIM, PINION FINAL DRIVE (T=2.26)

1 $6.28 $5.21
8 9-41519-171-1 9-41519-171-1 / SHIM, PINION FINAL DRIVE (T=2.54)

1 $5.80 $4.81
8 9-41519-153-1 9-41519-153-1 / SHIM, PINION FINAL DRIVE (T=2.18)

1 $6.77 $5.62
8 9-41519-158-1 9-41519-158-1 / SHIM, PINION FINAL DRIVE (T=2.28)

1 $6.28 $5.21
8 9-41519-172-1 9-41519-172-1 / SHIM, PINION FINAL DRIVE (T=2.56)

1 $6.28 $5.21
8 9-41519-161-1 9-41519-161-1 / SHIM, PINION FINAL DRIVE (T=2.34)

1 $6.28 $5.21
8 9-41519-162-1 9-41519-162-1 / SHIM, PINION FINAL DRIVE (T=2.36)

1 $6.37 $5.29
8 9-41519-164-1 9-41519-164-1 / SHIM, PINION FINAL DRIVE (T=2.40)

1 $6.37 $5.29
8 9-41519-170-1 9-41519-170-1 / SHIM, PINION FINAL DRIVE (T=2.52)

1 $6.37 $5.29
8 9-41519-163-1 9-41519-163-1 / SHIM, PINION FINAL DRIVE (T=2.38)

1 $5.67 $4.71
8 9-41519-154-1 9-41519-154-1 / SHIM, PINION FINAL DRIVE (T=2.20)

1 $6.37 $5.29
8 9-41519-160-1 9-41519-160-1 / SHIM, PINION FINAL DRIVE (T=2.32)

1 $6.07 $5.04
8 9-41519-168-1 9-41519-168-1 / SHIM, PINION FINAL DRIVE (T=2.48)

1 $6.28 $5.21
8 9-41519-167-1 9-41519-167-1 / SHIM, PINION FINAL DRIVE (T=2.46)

1 $5.67 $4.71
8 9-41519-155-1 9-41519-155-1 / SHIM, PINION FINAL DRIVE (T=2.22)

1 $6.77 $5.62
8 9-41519-156-1 9-41519-156-1 / SHIM, PINION FINAL DRIVE (T=2.24)

1 $6.28 $5.21
9 8-94472-118-0 8-94472-118-0 / COLLAR, DIST PINION

1 $13.50 $11.21
11 8-97038-515-1 8-97038-515-1 / CAGE, FINAL PINION

1 $304.48 $252.72
12 8-97130-387-0 8-97130-387-0 / SHIM (0.50MM)

0 $1.68 $1.39
12 8-97130-386-0 8-97130-386-0 / SHIM (0.10MM)

0 $1.68 $1.39
12 9-41519-109-0 9-41519-109-0 / SHIM, FINAL PINION CAGE (T=0.24)

0 $1.30 $1.08
12 9-41519-111-0 9-41519-111-0 / SHIM, FINAL PINION CAGE (T=0.15)

0 $1.30 $1.08
13 8-97038-065-0 8-97038-065-0 / BOLT (10X17)

10 $3.50 $2.91
14 8-94376-231-3 8-94376-231-3 / CARRIER ASSY., FINAL DRIVE

1 $935.12 $776.15
14 8-94376-231-3 8-94376-231-3 / CARRIER ASSY. FINAL DRIVE, FR.AXLE

1 $935.12 $776.15
14 8-97183-890-0 8-97183-890-0 / CARRIER ASSY., FINAL

1 $935.12 $776.15
19 1-09812-001-0 1-09812-001-0 / BEARING, PINION INN

1 $60.58 $50.28
21 8-97039-251-1 8-97039-251-1 / GEAR SET, FINAL DRIVE (43/10)

1 $1,109.63 $920.99
30 8-94376-322-0 8-94376-322-0 / BOLT

4 $5.22 $4.33
34 9-41521-044-1 9-41521-044-1 / PIN, CROSS DIFFERENTIAL PINION

1 $17.60 $14.61
35 5-41562-007-1 5-41562-007-1 / WASHER, THRUST SIDE GEAR (T=1.1)

2 $8.07 $6.70
35 5-41562-006-1 5-41562-006-1 / WASHER, THRUST SIDE GEAR (T=1.0)

2 $8.07 $6.70
35 5-41562-005-1 5-41562-005-1 / WASHER, THRUST SIDE GEAR (T=1.0)

2 $8.07 $6.70
36 8-97079-519-2 8-97079-519-2 / GEAR SIDE,DIFF

2 $178.28 $147.97
36 8-97079-519-2 8-97079-519-2 / GEAR

2 $178.28 $147.97
37 8-97079-518-0 8-97079-518-0 / GEAR, PINION DIFFERENTIAL

2 $115.25 $95.66
39 9-09878-096-0 9-09878-096-0 / PIN, LOCK CROSS

1 $0.87 $0.72
69 9-00093-074-0 9-00093-074-0 / BEARING, DIFFERENTIAL CAGE (NSK)

2 $44.20 $36.69
77 8-97183-627-0 8-97183-627-0 / BRACKET, DAMPER

1 $39.37 $32.68
78 8-97183-891-0 8-97183-891-0 / DAMPER, FINAL DRIVE

1 $58.12 $48.24
79 8-97138-666-0 8-97138-666-0 / BOLT, BRACKET

5 $1.22 $1.01
