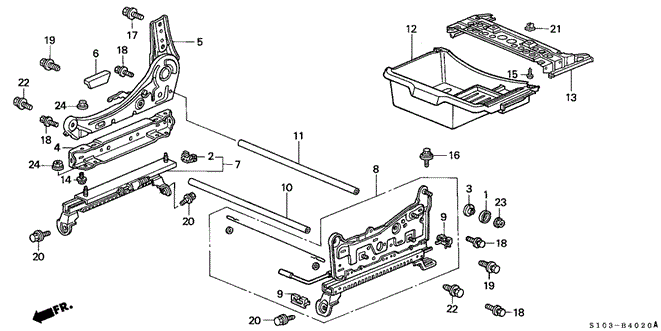

ADJUSTER, R. RECLINING in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (R.) (1) for 1997 Honda CR-V

ADJUSTER, R. RECLINING in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (R.) (1) for 1997 Honda CR-V #1
5
  • ADJUSTER, R. RECLINING - $114.08
18
  • BOLT-WASHER (8X22) - $2.36
22
  • BOLT-WASHER (8X16) - $0.82
19
  • BOLT, FLANGE (10X18) - $2.36
10
  • PIPE A, CONNECTING - $16.32
12
  • BOX, R. FR. SEAT (LOWER) *NH264L* (CLASSY GRAY) - $31.62
22
  • BOLT-WASHER (8X16) - $0.82
1
  • WASHER, NYLON - $2.10
18
  • BOLT-WASHER (8X22) - $2.36
4
  • BRACKET, R. - $31.26
18
  • BOLT-WASHER (8X22) - $2.36
14
  • BOLT-WASHER (8X16) (TACHI-S) - $2.04
20
  • BOLT-WASHER (8X25) - $0.20
20
  • BOLT-WASHER (8X25) - $0.20
15
  • SCREW, TAPPING (5X10) - $1.81
11
  • PIPE B, CONNECTING - $16.32
24
  • NUT-WASHER (8MM) - $0.31
9
  • CAP, SLIDE ADJUSTER END - $5.30
9
  • CAP, SLIDE ADJUSTER END - $5.30
16
  • BOLT-WASHER (10X27) - $3.11
6
  • KNOB, R. RECLINING *NH167L* (GRAPHITE BLACK) - $25.52
19
  • BOLT, FLANGE (10X18) - $2.36
2
  • CAP, SLIDE ADJUSTER - $4.13
24
  • NUT-WASHER (8MM) - $0.31
21
  • GROMMET, SCREW (5MM) (WHITE) - $1.70
20
  • BOLT-WASHER (8X25) - $0.20
13
  • GUIDE, BOX (LOWER) - $32.84
8
  • ADJUSTER, R. SLIDE (INNER) - $69.91
18
  • BOLT-WASHER (8X22) - $2.36
7
  • ADJUSTER, R. SLIDE (OUTER) - $47.10
23
  • NUT, FLANGE (8MM) - $0.18
3
  • BUSH, NYLON (TS TECH) - $1.93
17
  • BOLT-WASHER (10X22) - $3.68
No. Part # Part # / Description Qty Req. List Price Price
1 77209-SB0-003 77209-SB0-003 / WASHER, NYLON

1 $2.92 $2.10
2 77517-SA5-014 77517-SA5-014 / CAP, SLIDE ADJUSTER

1 $5.73 $4.13
3 81117-S47-003 81117-S47-003 / BUSH, NYLON (TS TECH)

1 $2.68 $1.93
4 81151-S10-J01 81151-S10-J01 / BRACKET, R.

1 $43.42 $31.26
5 81230-S04-J01 81230-S04-J01 / ADJUSTER, R. RECLINING

1 $158.45 $114.08
6 81231-SR3-003ZB 81231-SR3-003ZB / KNOB, R. RECLINING *NH167L* (GRAPHITE BLACK)

1 $35.44 $25.52
7 81260-S10-A01 81260-S10-A01 / ADJUSTER, R. SLIDE (OUTER)

1 $66.27 $47.10
8 81270-S10-A01 81270-S10-A01 / ADJUSTER, R. SLIDE (INNER)

1 $98.37 $69.91
9 81271-S04-003 81271-S04-003 / CAP, SLIDE ADJUSTER END

2 $7.37 $5.30
10 81275-S10-J01 81275-S10-J01 / PIPE A, CONNECTING

1 $22.67 $16.32
11 81276-S10-J01 81276-S10-J01 / PIPE B, CONNECTING

1 $22.67 $16.32
12 81395-S10-A01ZB 81395-S10-A01ZB / BOX, R. FR. SEAT (LOWER) *NH264L* (CLASSY GRAY)

1 $43.92 $31.62
13 81396-S10-J11 81396-S10-J11 / GUIDE, BOX (LOWER)

1 $45.62 $32.84
14 90128-SR3-004 90128-SR3-004 / BOLT-WASHER (8X16) (TACHI-S)

2 $2.83 $2.04
15 90134-SE3-003 90134-SE3-003 / SCREW, TAPPING (5X10)

4 $2.52 $1.81
16 90135-SK7-A01 90135-SK7-A01 / BOLT-WASHER (10X27)

1 $4.32 $3.11
17 90143-SR3-900 90143-SR3-900 / BOLT-WASHER (10X22)

2 $5.12 $3.68
18 90143-ST5-900 90143-ST5-900 / BOLT-WASHER (8X22)

4 $3.28 $2.36
19 90143-S04-000 90143-S04-000 / BOLT, FLANGE (10X18)

2 $3.28 $2.36
20 90155-SH3-000 90155-SH3-000 / BOLT-WASHER (8X25)

3 $0.28 $0.20
21 90662-671-003 90662-671-003 / GROMMET, SCREW (5MM) (WHITE)

4 $2.37 $1.70
22 93405-08016-07 93405-08016-07 / BOLT-WASHER (8X16)

2 $1.13 $0.82
23 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
24 94070-08080 94070-08080 / NUT-WASHER (8MM)

3 $0.43 $0.31
