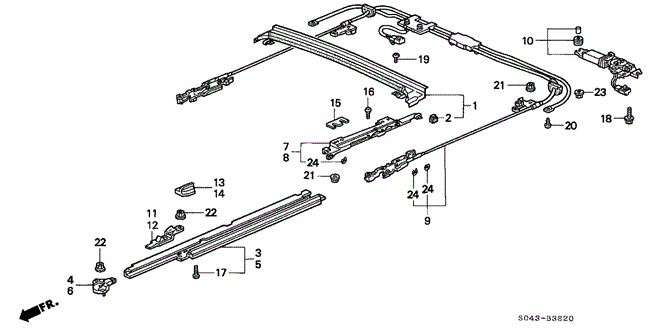

MOTOR ASSY., SUNROOF in INTERIOR / BUMPER/ROOF SLIDE COMPONENTS for 1997 Honda CIVIC SEDAN

MOTOR ASSY., SUNROOF in INTERIOR / BUMPER/ROOF SLIDE COMPONENTS for 1997 Honda CIVIC SEDAN #1
11
  • BASE, R. DEFROSTER - $17.08
4
  • HOLDER ASSY., R. GUIDE RAIL - $5.24
19
  • SCREW, PAN (5X6) - $0.36
1
  • CHANNEL ASSY., DRAIN - $30.61
9
  • CABLE ASSY., SUNROOF - $124.75
8
  • STAY ASSY., L. ROOF GLASS - $77.27
23
  • NUT-WASHER (6MM) - $0.59
15
  • SHIM, STAY (2.0MM) - $2.45
  • SHIM, STAY (1.0MM) - $2.29
12
  • BASE, L. DEFROSTER - $17.08
22
  • NUT, FLANGE (6MM) - $0.60
10
  • MOTOR ASSY., SUNROOF - $194.41
3
  • RAIL ASSY., R. GUIDE - $33.37
24
  • E-RING (4MM) - $2.24
2
  • STOPPER, DRAIN CHANNEL - $2.81
22
  • NUT, FLANGE (6MM) - $0.60
13
  • COVER, R. RAIL - $4.58
7
  • STAY ASSY., R. ROOF GLASS - $77.27
21
  • NUT, FLANGE (6MM) - $0.59
6
  • HOLDER ASSY., L. GUIDE RAIL - $5.24
16
  • SCREW, PAN (5X10) - $1.10
21
  • NUT, FLANGE (6MM) - $0.59
24
  • E-RING (4MM) - $2.24
24
  • E-RING (4MM) - $2.24
20
  • SCREW, TAPPING (4X8) - $0.40
14
  • COVER, L. RAIL - $4.58
5
  • RAIL ASSY., L. GUIDE - $33.37
18
  • BOLT-WASHER (6X16) - $0.64
17
  • BOLT, RECESSED (4X6) - $0.50
No. Part # Part # / Description Qty Req. List Price Price
1 70241-S04-003 70241-S04-003 / CHANNEL ASSY., DRAIN

1 $42.52 $30.61
2 70251-SP0-003 70251-SP0-003 / STOPPER, DRAIN CHANNEL

2 $3.90 $2.81
3 70310-S04-003 70310-S04-003 / RAIL ASSY., R. GUIDE

1 $46.35 $33.37
4 70312-S04-003 70312-S04-003 / HOLDER ASSY., R. GUIDE RAIL

1 $7.28 $5.24
5 70315-S04-003 70315-S04-003 / RAIL ASSY., L. GUIDE

1 $46.35 $33.37
6 70317-S04-003 70317-S04-003 / HOLDER ASSY., L. GUIDE RAIL

1 $7.28 $5.24
7 70331-S04-003 70331-S04-003 / STAY ASSY., R. ROOF GLASS

1 $107.32 $77.27
8 70336-S04-003 70336-S04-003 / STAY ASSY., L. ROOF GLASS

1 $107.32 $77.27
9 70400-S04-003 70400-S04-003 / CABLE ASSY., SUNROOF

1 $173.27 $124.75
10 70450-SR4-003 70450-SR4-003 / MOTOR ASSY., SUNROOF

1 $270.02 $194.41
11 70532-S04-003 70532-S04-003 / BASE, R. DEFROSTER

1 $23.72 $17.08
12 70537-S04-003 70537-S04-003 / BASE, L. DEFROSTER

1 $23.72 $17.08
13 70630-SR4-003 70630-SR4-003 / COVER, R. RAIL

1 $6.37 $4.58
14 70635-SR4-003 70635-SR4-003 / COVER, L. RAIL

1 $6.37 $4.58
15 71998-692-920 71998-692-920 / SHIM, STAY (2.0MM)

0 $3.40 $2.45
15 71997-692-920 71997-692-920 / SHIM, STAY (1.0MM)

0 $3.18 $2.29
16 90110-SP0-003 90110-SP0-003 / SCREW, PAN (5X10)

6 $1.53 $1.10
17 92301-04006-0A 92301-04006-0A / BOLT, RECESSED (4X6)

2 $0.70 $0.50
18 93401-06016-08 93401-06016-08 / BOLT-WASHER (6X16)

2 $0.88 $0.64
19 93500-05006-0G 93500-05006-0G / SCREW, PAN (5X6)

2 $0.50 $0.36
20 93901-34120 93901-34120 / SCREW, TAPPING (4X8)

2 $0.55 $0.40
21 94050-06000 94050-06000 / NUT, FLANGE (6MM)

6 $0.82 $0.59
22 94050-06070 94050-06070 / NUT, FLANGE (6MM)

4 $0.83 $0.60
23 94071-06080 94071-06080 / NUT-WASHER (6MM)

3 $0.82 $0.59
24 94540-04029 94540-04029 / E-RING (4MM)

8 $3.12 $2.24
