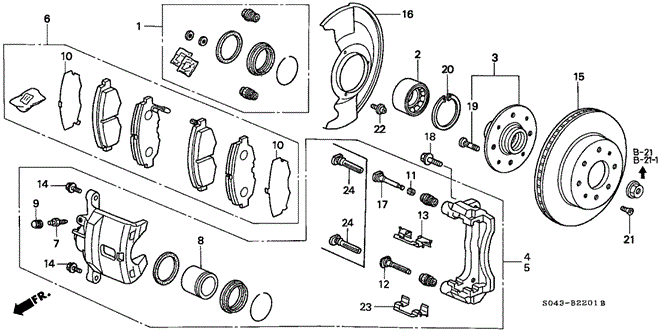

CALIPER SUB-ASSY., L. FR. in CHASSIS/FRONT BRAKE (2) for 1997 Honda CIVIC SEDAN

CALIPER SUB-ASSY., L. FR. in CHASSIS/FRONT BRAKE (2) for 1997 Honda CIVIC SEDAN #1
10
  • SHIM (OUTER) - $5.50
5
  • CALIPER SUB-ASSY., L. FR. (RMD) - $82.12
  • CALIPER SUB-ASSY., L. FR. - $150.05
12
  • PIN A - $9.74
  • PIN A - $9.74
2
  • BEARING, FR. HUBR. HUB (NTN) - $89.45
16
  • SPLASH GUARD, FR. BRAKE - $25.30
23
  • CLIP, PAD - $5.99
7
  • SCREW, BLEEDER - $2.71
18
  • BOLT, CALIPER MOUNTING (12X21) - $0.66
21
  • SCREW, FLAT (6X14) - $0.43
1
  • CALIPER SET, FR. - $16.97
22
  • SCREW-WASHER (5X12) - $0.49
4
  • CALIPER SUB-ASSY., R. FR. - $150.05
  • CALIPER SUB-ASSY., R. FR. (RMD) - $82.12
14
  • BOLT - $0.98
15
  • DISK, FR. BRAKE - $57.65
  • DISK, FR. BRAKE - $60.55
20
  • CIRCLIP, SPECIAL (INNER) (79MM) - $7.55
3
  • HUB ASSY., FR. - $142.39
  • HUB ASSY., FR. - $142.39
17
  • PIN B - $9.74
13
  • CLIP, PAD - $5.99
9
  • CAP, BLEEDER SCREW - $0.08
19
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
  • BOLT, WHEEL (ROCKNEL FASTENER) - $1.32
6
  • PAD SET, FR. - $43.73
11
  • BUSH - $4.21
10
  • SHIM (OUTER) - $5.50
8
  • PISTON - $23.62
14
  • BOLT - $0.98
No. Part # Part # / Description Qty Req. List Price Price
1 01463-S01-A01 01463-S01-A01 / CALIPER SET, FR.

2 $23.57 $16.97
2 44300-S5A-008 44300-S5A-008 / BEARING, FR. HUBR. HUB (NTN)

2 $124.23 $89.45
3 44600-S04-A00 44600-S04-A00 / HUB ASSY., FR.

2 $197.77 $142.39
3 44600-S04-A00 44600-S04-A00 / HUB ASSY., FR.

2 $197.77 $142.39
4 45018-S01-A02 45018-S01-A02 / CALIPER SUB-ASSY., R. FR.

1 $208.40 $150.05
4 06452-S01-505RM 06452-S01-505RM / CALIPER SUB-ASSY., R. FR. (RMD)1

1 $114.05 $82.12
5 06453-S01-505RM 06453-S01-505RM / CALIPER SUB-ASSY., L. FR. (RMD)1

1 $114.05 $82.12
5 45019-S01-A02 45019-S01-A02 / CALIPER SUB-ASSY., L. FR.

1 $208.40 $150.05
6 45022-S01-A02 45022-S01-A02 / PAD SET, FR.

1 $60.73 $43.73
7 45215-671-672 45215-671-672 / SCREW, BLEEDER

2 $3.77 $2.71
8 45216-S01-A01 45216-S01-A01 / PISTON

2 $32.80 $23.62
9 45219-671-672 45219-671-672 / CAP, BLEEDER SCREW

2 $0.12 $0.08
10 45228-SM4-A01 45228-SM4-A01 / SHIM (OUTER)

2 $7.63 $5.50
11 45233-S04-A01 45233-S04-A01 / BUSH

2 $5.85 $4.21
12 45235-S01-A01 45235-S01-A01 / PIN A

2 $13.53 $9.74
12 45235-S01-A01 45235-S01-A01 / PIN A

2 $13.53 $9.74
23 45237-S04-A02 45237-S04-A02 / CLIP, PAD

2 $8.32 $5.99
14 45240-S01-A01 45240-S01-A01 / BOLT

4 $1.37 $0.98
15 45251-SK7-J00 45251-SK7-J00 / DISK, FR. BRAKE

2 $80.07 $57.65
15 45251-S5D-A10 45251-S5D-A10 / DISK, FR. BRAKE

2 $84.10 $60.55
16 45255-S01-A00 45255-S01-A00 / SPLASH GUARD, FR. BRAKE

2 $35.13 $25.30
17 45262-S01-A01 45262-S01-A01 / PIN B

2 $13.53 $9.74
18 90107-SM4-000 90107-SM4-000 / BOLT, CALIPER MOUNTING (12X21)

4 $0.92 $0.66
19 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.32
19 90113-SM1-005 90113-SM1-005 / BOLT, WHEEL (ROCKNEL FASTENER)

8 $1.83 $1.32
20 90681-SR3-A00 90681-SR3-A00 / CIRCLIP, SPECIAL (INNER) (79MM)

2 $10.48 $7.55
21 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
22 93892-05012-08 93892-05012-08 / SCREW-WASHER (5X12)

6 $0.68 $0.49
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
