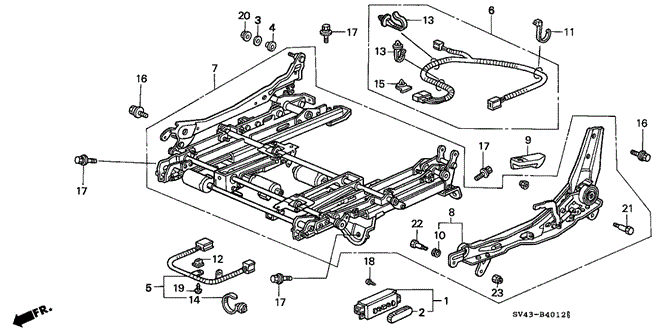

DEVICE, L. FR. SEAT in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (L.) (4WAY POWER SEAT) for 1997 Honda ACCORD SEDAN

DEVICE, L. FR. SEAT in INTERIOR / BUMPER/FRONT SEAT COMPONENTS (L.) (4WAY POWER SEAT) for 1997 Honda ACCORD SEDAN #1
23
  • NUT, SIDE - $3.06
1
  • SWITCH ASSY., POWER SEAT *G38L* (JADE GREEN) - $83.10
  • SWITCH ASSY., POWER SEAT *YR169L* (MILD BEIGE) - $83.10
  • SWITCH ASSY., POWER SEAT *NH178L* (EXCEL CHARCOAL) - $80.62
2
  • KNOB, SLIDE *G38L* (JADE GREEN) - $7.88
  • KNOB, SLIDE *YR169L* (MILD BEIGE) - $7.88
  • KNOB, SLIDE *NH178L* (EXCEL CHARCOAL) - $7.88
6
  • CORD, POWER SEAT (B) - $12.77
3
  • WASHER, PIVOT (BLACK) - $1.88
9
  • KNOB, L. RECLINING *G38L* (JADE GREEN) - $23.02
  • KNOB, L. RECLINING *YR169L* (MILD BEIGE) - $23.41
  • KNOB, L. RECLINING *NH178L* (EXCEL CHARCOAL) - $23.02
14
  • CLIP, HARNESS BAND (151MM) (BROWN) - $2.88
19
  • SCREW, TAPPING (5X16) - $0.40
13
  • CLIP, HARNESS BAND (145.2MM) (NATURAL) - $3.61
19
  • SCREW, TAPPING (5X16) - $0.40
22
  • BOLT, FR. SIDE - $32.94
5
  • CORD A, POWER SEAT - $27.22
8
  • ADJUSTER, L. RECLINING - $128.39
11
  • BAND, OIL HOSE - $2.22
4
  • BUSH, NYLON (TACHI-S)(BLACK) - $2.32
10
  • BUSH A - $2.72
3
  • WASHER, PIVOT (BLACK) - $1.88
12
  • GROMMET, SCREW (5MM) (WHITE) - $1.70
20
  • NUT, FLANGE (8MM) - $0.18
5
  • CORD A, POWER SEAT - $27.22
2
  • KNOB, SLIDE *G38L* (JADE GREEN) - $7.88
  • KNOB, SLIDE *YR169L* (MILD BEIGE) - $7.88
  • KNOB, SLIDE *NH178L* (EXCEL CHARCOAL) - $7.88
6
  • CORD, POWER SEAT (B) - $12.77
23
  • NUT, SIDE - $3.06
15
  • CLIP, CONNECTOR (RED) - $2.09
16
  • BOLT-WASHER (10X22) - $2.45
11
  • BAND, OIL HOSE - $2.22
10
  • BUSH A - $2.72
17
  • BOLT-WASHER (10X20) - $0.94
13
  • CLIP, HARNESS BAND (145.2MM) (NATURAL) - $3.61
16
  • BOLT-WASHER (10X22) - $2.45
13
  • CLIP, HARNESS BAND (145.2MM) (NATURAL) - $3.61
17
  • BOLT-WASHER (10X20) - $0.94
18
  • SCREW, TAPPING (4X10) - $0.40
17
  • BOLT-WASHER (10X20) - $0.94
17
  • BOLT-WASHER (10X20) - $0.94
22
  • BOLT, FR. SIDE - $32.94
18
  • SCREW, TAPPING (4X10) - $0.40
1
  • SWITCH ASSY., POWER SEAT *G38L* (JADE GREEN) - $83.10
  • SWITCH ASSY., POWER SEAT *YR169L* (MILD BEIGE) - $83.10
  • SWITCH ASSY., POWER SEAT *NH178L* (EXCEL CHARCOAL) - $80.62
16
  • BOLT-WASHER (10X22) - $2.45
15
  • CLIP, CONNECTOR (RED) - $2.09
14
  • CLIP, HARNESS BAND (151MM) (BROWN) - $2.88
21
  • BOLT - $5.28
7
  • DEVICE, L. FR. SEAT
12
  • GROMMET, SCREW (5MM) (WHITE) - $1.70
7
  • DEVICE, L. FR. SEAT
9
  • KNOB, L. RECLINING *G38L* (JADE GREEN) - $23.02
  • KNOB, L. RECLINING *YR169L* (MILD BEIGE) - $23.41
  • KNOB, L. RECLINING *NH178L* (EXCEL CHARCOAL) - $23.02
21
  • BOLT - $5.28
20
  • NUT, FLANGE (8MM) - $0.18
8
  • ADJUSTER, L. RECLINING - $128.39
4
  • BUSH, NYLON (TACHI-S)(BLACK) - $2.32
17
  • BOLT-WASHER (10X20) - $0.94
No. Part # Part # / Description Qty Req. List Price Price
1 35950-SV1-L32ZA 35950-SV1-L32ZA / SWITCH ASSY., POWER SEAT *G38L* (JADE GREEN)

1 $115.42 $83.10
1 35950-SV1-L32ZD 35950-SV1-L32ZD / SWITCH ASSY., POWER SEAT *YR169L* (MILD BEIGE)

1 $115.42 $83.10
1 35950-SV1-L32ZB 35950-SV1-L32ZB / SWITCH ASSY., POWER SEAT *NH178L* (EXCEL CHARCOAL)

1 $111.97 $80.62
2 35951-SM4-J62ZQ 35951-SM4-J62ZQ / KNOB, SLIDE *G38L* (JADE GREEN)

1 $10.95 $7.88
2 35951-SM4-J62ZW 35951-SM4-J62ZW / KNOB, SLIDE *YR169L* (MILD BEIGE)

1 $10.95 $7.88
2 35951-SM4-J62ZM 35951-SM4-J62ZM / KNOB, SLIDE *NH178L* (EXCEL CHARCOAL)

1 $10.95 $7.88
3 81104-SE3-J02 81104-SE3-J02 / WASHER, PIVOT (BLACK)

1 $2.62 $1.88
4 81108-SE3-J02 81108-SE3-J02 / BUSH, NYLON (TACHI-S)(BLACK)

1 $3.22 $2.32
5 81311-SV1-L32 81311-SV1-L32 / CORD A, POWER SEAT

1 $37.80 $27.22
6 81312-SV1-L31 81312-SV1-L31 / CORD, POWER SEAT (B)

1 $17.73 $12.77
7 81510-SV1-L32 81510-SV1-L32 / DEVICE, L. FR. SEAT

1 - -
8 81630-SV1-L32 81630-SV1-L32 / ADJUSTER, L. RECLINING

1 $178.32 $128.39
9 81631-SV1-A02ZA 81631-SV1-A02ZA / KNOB, L. RECLINING *G38L* (JADE GREEN)

1 $31.97 $23.02
9 81631-SV1-A02ZE 81631-SV1-A02ZE / KNOB, L. RECLINING *YR169L* (MILD BEIGE)

1 $32.52 $23.41
9 81631-SV1-A02ZB 81631-SV1-A02ZB / KNOB, L. RECLINING *NH178L* (EXCEL CHARCOAL)

1 $31.97 $23.02
10 90518-SP0-901 90518-SP0-901 / BUSH A

1 $3.78 $2.72
11 90656-PB1-003 90656-PB1-003 / BAND, OIL HOSE

1 $3.08 $2.22
12 90662-671-003 90662-671-003 / GROMMET, SCREW (5MM) (WHITE)

1 $2.37 $1.70
13 91540-SV4-003 91540-SV4-003 / CLIP, HARNESS BAND (145.2MM) (NATURAL)

2 $5.02 $3.61
14 91551-SW5-003 91551-SW5-003 / CLIP, HARNESS BAND (151MM) (BROWN)

2 $4.00 $2.88
15 91555-SM4-003 91555-SM4-003 / CLIP, CONNECTOR (RED)

1 $2.90 $2.09
16 90143-SM4-000 90143-SM4-000 / BOLT-WASHER (10X22)

6 $3.40 $2.45
17 93405-10020-07 93405-10020-07 / BOLT-WASHER (10X20)

4 $1.30 $0.94
18 93903-14220 93903-14220 / SCREW, TAPPING (4X10)

2 $0.55 $0.40
19 93903-45380 93903-45380 / SCREW, TAPPING (5X16)

1 $0.55 $0.40
20 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
21 90126-S87-A50 90126-S87-A50 / BOLT

1 $7.33 $5.28
22 90102-SV1-A02 90102-SV1-A02 / BOLT, FR. SIDE

1 $45.75 $32.94
23 90301-SV1-A02 90301-SV1-A02 / NUT, SIDE

2 $4.25 $3.06
