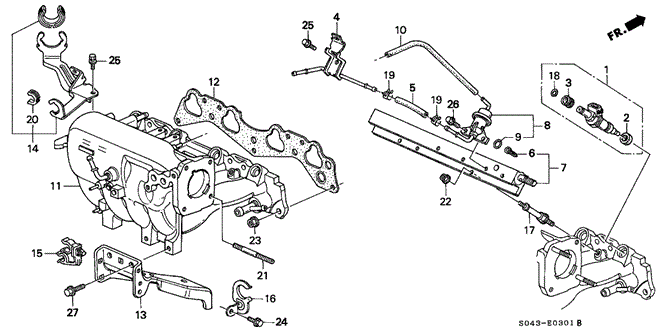

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD (2) for 1996 Honda CIVIC SEDAN

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD (2) for 1996 Honda CIVIC SEDAN #1
20
  • CLIP, FUEL HOSE - $3.30
2
  • SEAL RING, INJECTOR (NOK) - $1.42
  • SEAL RING, INJECTOR (OTSUKA) - $1.42
10
  • TUBE, PRESSURE REGULATOR - $3.05
25
  • BOLT, FLANGE (6X12) - $0.72
9
  • O-RING, PRESSURE REGULATOR - $1.81
16
  • CLAMP, PURGE HOSE - $2.50
24
  • BOLT, FLANGE (6X8) - $0.64
23
  • NUT, FLANGE (8MM) - $0.18
27
  • BOLT, FLANGE (8X20) - $0.64
1
  • INJECTOR SET, FUEL - $134.40
15
  • CLAMP, HOSE (13MM) - $0.56
4
  • PIPE, FUEL RETURN - $9.84
19
  • CLAMP, FUEL HOSE (D10.5) - $2.34
17
  • BOLT A, FUEL PIPE - $5.35
11
  • MANIFOLD, IN. - $282.76
19
  • CLAMP, FUEL HOSE (D10.5) - $2.34
21
  • BOLT, STUD (8X35) - $0.96
25
  • BOLT, FLANGE (6X12) - $0.72
26
  • BOLT, FLANGE (6X14) - $0.64
12
  • GASKET, IN. MANIFOLD (MCCORD LEAKLESS) - $5.88
3
  • CUSHION RING, INJECTOR (NOK) - $2.60
  • CUSHION RING, INJECTOR (OTSUKA) - $2.60
8
  • REGULATOR ASSY., PRESSURE - $48.04
14
  • CLAMP A, RETURN HOSE - $19.28
  • CLAMP A, RETURN HOSE - $19.28
7
  • PIPE ASSY., FUEL - $70.62
6
  • MESH, FUEL FILTER - $0.73
22
  • NUT, FLANGE (6MM) - $0.17
18
  • O-RING (7.3X2.2) (NOK) - $1.67
  • O-RING - $1.67
5
  • HOSE, FUEL RETURN - $7.67
13
  • STAY, IN. MANIFOLD - $85.75
No. Part # Part # / Description Qty Req. List Price Price
1 06164-P2J-000 06164-P2J-000 / INJECTOR SET, FUEL

4 $186.67 $134.40
2 16472-P0H-A01 16472-P0H-A01 / SEAL RING, INJECTOR (NOK)

4 $1.97 $1.42
2 16472-P0H-A01 16472-P0H-A01 / SEAL RING, INJECTOR (OTSUKA)

4 $1.97 $1.42
3 16473-P10-A01 16473-P10-A01 / CUSHION RING, INJECTOR (NOK)

4 $3.62 $2.60
3 16473-P10-A01 16473-P10-A01 / CUSHION RING, INJECTOR (OTSUKA)

4 $3.62 $2.60
4 16612-P2K-000 16612-P2K-000 / PIPE, FUEL RETURN

1 $13.67 $9.84
5 16613-P2A-000 16613-P2A-000 / HOSE, FUEL RETURN

1 $10.65 $7.67
6 16614-P0A-000 16614-P0A-000 / MESH, FUEL FILTER

1 $1.02 $0.73
7 16620-P2A-000 16620-P2A-000 / PIPE ASSY., FUEL

1 $98.08 $70.62
8 16740-P2K-003 16740-P2K-003 / REGULATOR ASSY., PRESSURE

1 $66.72 $48.04
9 16741-PG7-005 16741-PG7-005 / O-RING, PRESSURE REGULATOR

1 $2.52 $1.81
10 16748-P2K-J00 16748-P2K-J00 / TUBE, PRESSURE REGULATOR

1 $4.23 $3.05
11 17100-P2P-A00 17100-P2P-A00 / MANIFOLD, IN.

1 $392.72 $282.76
12 17105-P2F-A02 17105-P2F-A02 / GASKET, IN. MANIFOLD (MCCORD LEAKLESS)

1 $8.17 $5.88
13 17132-P2M-A00 17132-P2M-A00 / STAY, IN. MANIFOLD

1 $119.10 $85.75
14 17749-S04-J31 17749-S04-J31 / CLAMP A, RETURN HOSE

1 $26.78 $19.28
14 17749-S04-J31 17749-S04-J31 / CLAMP A, RETURN HOSE

1 $26.78 $19.28
15 19517-P08-003 19517-P08-003 / CLAMP, HOSE (13MM)

1 $0.78 $0.56
16 36156-P2M-A00 36156-P2M-A00 / CLAMP, PURGE HOSE

1 $3.47 $2.50
17 90027-P0A-003 90027-P0A-003 / BOLT A, FUEL PIPE

2 $7.43 $5.35
18 91301-P2F-A01 91301-P2F-A01 / O-RING (7.3X2.2) (NOK)

4 $2.32 $1.67
18 91301-P2F-A01 91301-P2F-A01 / O-RING

4 $2.32 $1.67
19 91406-SL4-931 91406-SL4-931 / CLAMP, FUEL HOSE (D10.5)

2 $3.25 $2.34
20 91593-ST7-931 91593-ST7-931 / CLIP, FUEL HOSE

1 $4.58 $3.30
21 92900-08035-1B 92900-08035-1B / BOLT, STUD (8X35)

2 $1.33 $0.96
22 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
23 94050-08080 94050-08080 / NUT, FLANGE (8MM)

7 $0.25 $0.18
24 95701-06008-08 95701-06008-08 / BOLT, FLANGE (6X8)

1 $0.88 $0.64
25 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.72
26 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

2 $0.88 $0.64
27 95701-08020-08 95701-08020-08 / BOLT, FLANGE (8X20)

2 $0.88 $0.64
