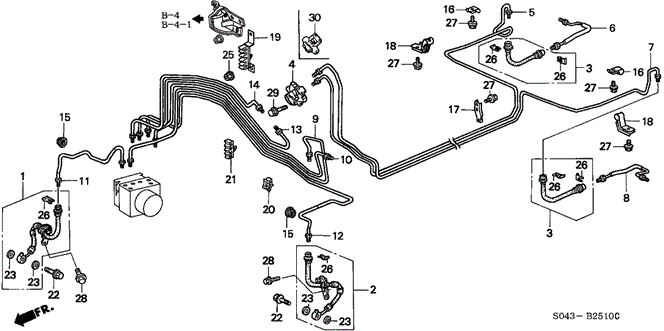

PIPE D, BRAKE in CHASSIS/BRAKE LINES (ABS) for 1996 Honda CIVIC SEDAN

PIPE D, BRAKE in CHASSIS/BRAKE LINES (ABS) for 1996 Honda CIVIC SEDAN #1
23
  • GASKET, OIL BOLT - $2.27
8
  • PIPE E, L. BRAKE - $29.54
26
  • CLIP, BRAKE HOSE - $3.30
9
  • PIPE U, BRAKE - $31.07
1
  • HOSE SET, R. FR. BRAKE - $33.80
13
  • PIPE Y, BRAKE - $29.59
16
  • CLAMP, BRAKE PIPE - $5.76
3
  • HOSE SET, RR. BRAKE - $34.15
26
  • CLIP, BRAKE HOSE - $3.30
29
  • BOLT, FLANGE (6X45) - $0.86
7
  • PIPE D, BRAKE - $113.12
23
  • GASKET, OIL BOLT - $2.27
22
  • BOLT, OIL - $3.97
2
  • HOSE SET, L. FR. BRAKE - $33.80
15
  • GROMMET A, BRAKE PIPE - $2.76
27
  • BOLT-WASHER (6X12) - $0.64
5
  • PIPE C, BRAKE - $106.81
18
  • CLIP, BRAKE PIPE - $7.30
27
  • BOLT-WASHER (6X12) - $0.64
26
  • CLIP, BRAKE HOSE - $3.30
4
  • VALVE ASSY., PROPORTIONING - $99.62
28
  • BOLT, FLANGE (6X12) - $0.72
10
  • PIPE V, BRAKE - $23.83
22
  • BOLT, OIL - $3.97
27
  • BOLT-WASHER (6X12) - $0.64
15
  • GROMMET A, BRAKE PIPE - $2.76
23
  • GASKET, OIL BOLT - $2.27
11
  • PIPE W, BRAKE - $20.22
16
  • CLAMP, BRAKE PIPE - $5.76
26
  • CLIP, BRAKE HOSE - $3.30
14
  • PIPE Z, BRAKE - $28.50
3
  • HOSE SET, RR. BRAKE - $34.15
19
  • CLIP, BRAKE PIPE - $24.67
27
  • BOLT-WASHER (6X12) - $0.64
26
  • CLIP, BRAKE HOSE - $3.30
28
  • BOLT, FLANGE (6X12) - $0.72
26
  • CLIP, BRAKE HOSE - $3.30
21
  • CLIP B - $1.45
27
  • BOLT-WASHER (6X12) - $0.64
23
  • GASKET, OIL BOLT - $2.27
25
  • NUT, PAINT CUTTING (6MM) - $1.20
17
  • CLAMP, BRAKE PIPE - $8.69
12
  • PIPE X, BRAKE - $27.38
6
  • PIPE E, R. BRAKE - $44.28
18
  • CLIP, BRAKE PIPE - $7.30
20
  • CLIP A - $0.56
No. Part # Part # / Description Qty Req. List Price Price
1 01464-S04-V02 01464-S04-V02 / HOSE SET, R. FR. BRAKE

1 $46.95 $33.80
2 01465-S04-V02 01465-S04-V02 / HOSE SET, L. FR. BRAKE

1 $46.95 $33.80
3 01466-S04-000 01466-S04-000 / HOSE SET, RR. BRAKE

2 $47.43 $34.15
4 46210-S04-852 46210-S04-852 / VALVE ASSY., PROPORTIONING

1 $138.37 $99.62
5 46330-S04-000 46330-S04-000 / PIPE C, BRAKE

1 $148.35 $106.81
6 46331-S04-000 46331-S04-000 / PIPE E, R. BRAKE

1 $61.50 $44.28
7 46340-S04-000 46340-S04-000 / PIPE D, BRAKE

1 $157.12 $113.12
8 46361-S04-000 46361-S04-000 / PIPE E, L. BRAKE

1 $41.03 $29.54
9 46374-S04-A01 46374-S04-A01 / PIPE U, BRAKE

1 $43.15 $31.07
10 46375-S04-A01 46375-S04-A01 / PIPE V, BRAKE

1 $33.10 $23.83
11 46376-S04-A00 46376-S04-A00 / PIPE W, BRAKE

1 $28.08 $20.22
12 46377-S04-A01 46377-S04-A01 / PIPE X, BRAKE

1 $38.03 $27.38
13 46378-S04-A00 46378-S04-A00 / PIPE Y, BRAKE

1 $41.10 $29.59
14 46379-S04-A00 46379-S04-A00 / PIPE Z, BRAKE

1 $39.58 $28.50
15 46380-SH3-000 46380-SH3-000 / GROMMET A, BRAKE PIPE

2 $3.83 $2.76
16 46391-SR3-J00 46391-SR3-J00 / CLAMP, BRAKE PIPE

2 $8.00 $5.76
17 46391-SR3-J10 46391-SR3-J10 / CLAMP, BRAKE PIPE

1 $12.07 $8.69
18 46392-SR3-000 46392-SR3-000 / CLIP, BRAKE PIPE

2 $10.13 $7.30
19 46392-S04-000 46392-S04-000 / CLIP, BRAKE PIPE

1 $34.27 $24.67
20 46394-S04-003 46394-S04-003 / CLIP A

1 $0.78 $0.56
21 46394-S04-901 46394-S04-901 / CLIP B

1 $2.02 $1.45
22 46462-SE0-000 46462-SE0-000 / BOLT, OIL

2 $5.52 $3.97
23 46472-568-000 46472-568-000 / GASKET, OIL BOLT

4 $3.15 $2.27
25 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

1 $1.67 $1.20
26 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

6 $4.58 $3.30
27 93402-06012-08 93402-06012-08 / BOLT-WASHER (6X12)

5 $0.88 $0.64
28 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

4 $1.00 $0.72
29 95801-06045-08 95801-06045-08 / BOLT, FLANGE (6X45)

2 $1.20 $0.86
