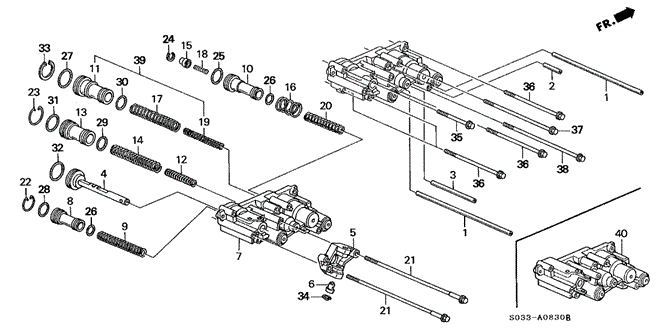

BODY, SERVO in TRANSMISSION - AUTOMATIC/AT SERVO BODY (1) for 1996 Honda CIVIC HATCHBACK

BODY, SERVO in TRANSMISSION - AUTOMATIC/AT SERVO BODY (1) for 1996 Honda CIVIC HATCHBACK #1
9
  • SPRING, LOW ACCUMULATOR - $5.32
1
  • PIPE, THIRD CLUTCH - $8.42
12
  • SPRING B, TOP ACCUMULATOR - $2.18
13
  • PISTON, TOP ACCUMULATOR - $8.44
38
  • BOLT, FLANGE (6X130) - $0.64
2
  • PIN, DOWEL (8X40) - $2.80
  • PIPE (8X40) - $2.16
18
  • SPRING B, SECOND ACCUMULATOR - $3.16
23
  • CIRCLIP (INNER) (36MM) - $1.81
19
  • SPRING B, THIRD ACCUMULATOR - $3.16
  • SPRING B, THIRD ACCUMULATOR - $2.99
17
  • SPRING A, THIRD ACCUMULATOR - $6.30
33
  • CIRCLIP (INNER) (35MM) - $0.72
8
  • PISTON, LOW ACCUMULATOR - $8.44
21
  • BOLT, SPECIAL (6X157) - $7.30
26
  • O-RING (18.3X2.4) (NOK) - $1.50
11
  • PISTON, THIRD ACCUMULATOR - $8.44
  • PISTON, THIRD ACCUMULATOR - $8.02
16
  • SPRING A, SECOND ACCUMULATOR - $6.30
22
  • CIRCLIP (INNER) (31MM) - $1.81
27
  • O-RING (28.3X2.4) (NOK) - $1.70
39
  • PISTON, THIRD ACCUMULATOR - $9.86
21
  • BOLT, SPECIAL (6X157) - $7.30
20
  • SPRING C, SECOND ACCUMULATOR - $3.16
36
  • BOLT, FLANGE (6X85) - $1.13
24
  • CIRCLIP (INNER) (16) - $1.45
34
  • CIRCLIP (INNER) (15MM) - $0.49
3
  • PIPE (8X62) - $2.64
4
  • SHAFT, SHIFT FORK - $37.72
36
  • BOLT, FLANGE (6X85) - $1.13
36
  • BOLT, FLANGE (6X85) - $1.13
15
  • PISTON, SECOND SHORT - $6.31
5
  • BASE, SERVO DETENT - $16.00
26
  • O-RING (18.3X2.4) (NOK) - $1.50
32
  • O-RING (31X2.7) (ARAI) - $1.94
31
  • O-RING (29X2.4) (NOK) - $1.84
28
  • O-RING (24.4X2.4) (NOK) - $1.70
25
  • O-RING (26.9X2.4) (NOK) - $1.51
37
  • BOLT, FLANGE (6X120) - $1.57
35
  • BOLT, FLANGE (6X45) - $0.86
6
  • SLEEVE, SERVO DETENT - $5.81
14
  • SPRING A, TOP ACCUMULATOR - $4.84
29
  • O-RING (21.2X2.4) (ARAI) - $1.61
1
  • PIPE, THIRD CLUTCH - $8.42
30
  • O-RING (20.2X2.4) (NOK) - $1.70
10
  • PISTON, SECOND ACCUMULATOR - $9.86
7
  • BODY, SERVO - $111.43
  • BODY, SERVO
No. Part # Part # / Description Qty Req. List Price Price
1 22743-PF0-000 22743-PF0-000 / PIPE, THIRD CLUTCH

2 $11.70 $8.42
2 91704-PF4-000 91704-PF4-000 / PIN, DOWEL (8X40)

1 $3.88 $2.80
2 22743-PW4-000 22743-PW4-000 / PIPE (8X40)

1 $3.00 $2.16
3 22748-PW4-000 22748-PW4-000 / PIPE (8X62)

1 $3.67 $2.64
4 24271-PX4-000 24271-PX4-000 / SHAFT, SHIFT FORK

1 $52.38 $37.72
5 24278-P4R-000 24278-P4R-000 / BASE, SERVO DETENT

1 $22.22 $16.00
6 24530-PN1-000 24530-PN1-000 / SLEEVE, SERVO DETENT

2 $8.07 $5.81
7 27410-P4R-000 27410-P4R-000 / BODY, SERVO

1 $154.77 $111.43
7 27410-P4R-A00 27410-P4R-A00 / BODY, SERVO

1 - -
8 27561-P4R-000 27561-P4R-000 / PISTON, LOW ACCUMULATOR

1 $11.72 $8.44
9 27562-P4R-000 27562-P4R-000 / SPRING, LOW ACCUMULATOR

1 $7.38 $5.32
10 27572-P4R-000 27572-P4R-000 / PISTON, SECOND ACCUMULATOR

1 $13.70 $9.86
11 27574-P4R-010 27574-P4R-010 / PISTON, THIRD ACCUMULATOR

1 $11.72 $8.44
11 27574-P4R-000 27574-P4R-000 / PISTON, THIRD ACCUMULATOR

1 $11.13 $8.02
12 27575-P4R-000 27575-P4R-000 / SPRING B, TOP ACCUMULATOR

1 $3.03 $2.18
13 27576-P4R-000 27576-P4R-000 / PISTON, TOP ACCUMULATOR

1 $11.72 $8.44
14 27577-P4R-000 27577-P4R-000 / SPRING A, TOP ACCUMULATOR

1 $6.72 $4.84
15 27579-P4R-000 27579-P4R-000 / PISTON, SECOND SHORT

1 $8.77 $6.31
16 27581-P4R-000 27581-P4R-000 / SPRING A, SECOND ACCUMULATOR

1 $8.75 $6.30
17 27583-P4R-000 27583-P4R-000 / SPRING A, THIRD ACCUMULATOR

1 $8.75 $6.30
18 27584-P4R-000 27584-P4R-000 / SPRING B, SECOND ACCUMULATOR

1 $4.38 $3.16
19 27585-P4R-010 27585-P4R-010 / SPRING B, THIRD ACCUMULATOR

1 $4.38 $3.16
19 27585-P4R-000 27585-P4R-000 / SPRING B, THIRD ACCUMULATOR

1 $4.15 $2.99
20 27588-P4R-000 27588-P4R-000 / SPRING C, SECOND ACCUMULATOR

1 $4.38 $3.16
21 90004-P0X-000 90004-P0X-000 / BOLT, SPECIAL (6X157)

2 $10.13 $7.30
22 90604-PX4-000 90604-PX4-000 / CIRCLIP (INNER) (31MM)

1 $2.52 $1.81
23 90606-PX4-000 90606-PX4-000 / CIRCLIP (INNER) (36MM)

1 $2.52 $1.81
24 90608-P0Z-000 90608-P0Z-000 / CIRCLIP (INNER) (16)

1 $2.02 $1.45
25 91302-PF0-003 91302-PF0-003 / O-RING (26.9X2.4) (NOK)

1 $2.10 $1.51
26 91321-PF4-004 91321-PF4-004 / O-RING (18.3X2.4) (NOK)

2 $2.08 $1.50
27 91324-PF4-004 91324-PF4-004 / O-RING (28.3X2.4) (NOK)

1 $2.37 $1.70
28 91326-PF4-004 91326-PF4-004 / O-RING (24.4X2.4) (NOK)

1 $2.37 $1.70
29 91331-PC9-003 91331-PC9-003 / O-RING (21.2X2.4) (ARAI)

1 $2.23 $1.61
30 91331-PL5-J00 91331-PL5-J00 / O-RING (20.2X2.4) (NOK)

1 $2.37 $1.70
31 91344-PC9-004 91344-PC9-004 / O-RING (29X2.4) (NOK)

1 $2.55 $1.84
32 91344-580-000 91344-580-000 / O-RING (31X2.7) (ARAI)

1 $2.70 $1.94
33 94520-35100 94520-35100 / CIRCLIP (INNER) (35MM)

1 $1.00 $0.72
34 94521-15000 94521-15000 / CIRCLIP (INNER) (15MM)

2 $0.68 $0.49
35 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

1 $1.20 $0.86
36 95701-06085-08 95701-06085-08 / BOLT, FLANGE (6X85)

4 $1.57 $1.13
37 95701-06120-08 95701-06120-08 / BOLT, FLANGE (6X120)

1 $2.18 $1.57
38 95701-06130-08 95701-06130-08 / BOLT, FLANGE (6X130)

1 $0.88 $0.64
39 27574-P4R-305 27574-P4R-305 / PISTON, THIRD ACCUMULATOR

1 $13.70 $9.86
