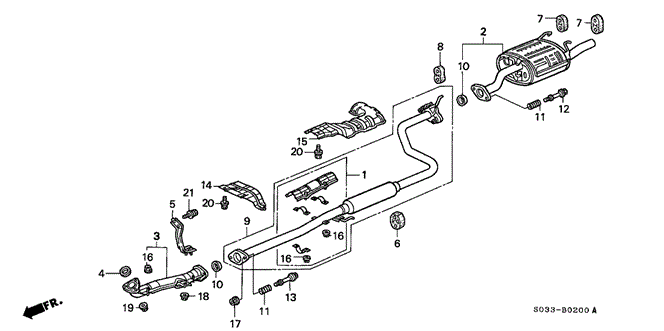

MUFFLER SET, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST PIPE for 1996 Honda CIVIC HATCHBACK

MUFFLER SET, EX. in ELECTRICAL / EXHAUST / HEATER / FUEL/EXHAUST PIPE for 1996 Honda CIVIC HATCHBACK #1
4
  • GASKET, EX. PIPE (47.5MM-48.5MM) (ISHINO) - $5.87
18
  • NUT, SELF-LOCK (8MM) - $1.94
20
  • BOLT-WASHER (6X12) - $0.67
3
  • PIPE A, EX. - $273.88
2
  • MUFFLER SET, EX. - $407.18
16
  • NUT, FLANGE (6MM) - $2.28
20
  • BOLT-WASHER (6X12) - $0.67
5
  • STAY, EX. MOUNTING - $15.04
8
  • RUBBER, EX. MOUNTING - $7.42
7
  • RUBBER, MUFFLER MOUNTING - $7.22
11
  • SPRING, FLEXIBLE JOINT - $3.83
1
  • INSULATOR SET, FR. EX. PIPE B - $51.13
10
  • GASKET, EX. FLEXIBLE - $8.63
9
  • PIPE B, EX. - $363.72
17
  • NUT, SELF-LOCK (8MM) (CLINCH) - $0.30
21
  • BOLT, FLANGE (8X20) - $0.64
10
  • GASKET, EX. FLEXIBLE - $8.63
7
  • RUBBER, MUFFLER MOUNTING - $7.22
14
  • PLATE, POWER STEERING HEAT BAFFLE - $4.66
11
  • SPRING, FLEXIBLE JOINT - $3.83
15
  • PLATE, FUEL TANK BAFFLE - $43.24
16
  • NUT, FLANGE (6MM) - $2.28
19
  • NUT, SELF-LOCK (10MM) - $0.42
16
  • NUT, FLANGE (6MM) - $2.28
12
  • BOLT B, FLEXIBLE JOINT - $8.58
6
  • RUBBER, EX. MOUNTING (70X55X30) - $7.31
13
  • BOLT A, FLEXIBLE JOINT - $8.59
No. Part # Part # / Description Qty Req. List Price Price
1 18020-S01-A20 18020-S01-A20 / INSULATOR SET, FR. EX. PIPE B

1 $71.02 $51.13
2 18030-S00-C20 18030-S00-C20 / MUFFLER SET, EX.

1 $565.53 $407.18
3 18210-S01-A21 18210-S01-A21 / PIPE A, EX.

1 $380.38 $273.88
4 18212-SF4-000 18212-SF4-000 / GASKET, EX. PIPE (47.5MM-48.5MM) (ISHINO)

1 $8.15 $5.87
5 18213-S04-J00 18213-S04-J00 / STAY, EX. MOUNTING

1 $20.88 $15.04
6 18215-SH3-J01 18215-SH3-J01 / RUBBER, EX. MOUNTING (70X55X30)

1 $10.15 $7.31
7 18215-S01-A21 18215-S01-A21 / RUBBER, MUFFLER MOUNTING

2 $10.03 $7.22
8 18215-SR0-A01 18215-SR0-A01 / RUBBER, EX. MOUNTING

1 $10.30 $7.42
9 18220-S01-C21 18220-S01-C21 / PIPE B, EX.

1 $505.17 $363.72
10 18229-SNE-A01 18229-SNE-A01 / GASKET, EX. FLEXIBLE

2 $11.98 $8.63
11 18230-SA0-930 18230-SA0-930 / SPRING, FLEXIBLE JOINT

4 $5.32 $3.83
12 18231-SR3-A22 18231-SR3-A22 / BOLT B, FLEXIBLE JOINT

2 $11.92 $8.58
13 18231-SR3-J01 18231-SR3-J01 / BOLT A, FLEXIBLE JOINT

2 $11.93 $8.59
14 53692-S04-000 53692-S04-000 / PLATE, POWER STEERING HEAT BAFFLE

1 $6.47 $4.66
15 74651-S04-000 74651-S04-000 / PLATE, FUEL TANK BAFFLE

1 $60.05 $43.24
16 90115-SL5-A00 90115-SL5-A00 / NUT, FLANGE (6MM)

8 $3.17 $2.28
17 90115-659-003 90115-659-003 / NUT, SELF-LOCK (8MM) (CLINCH)

2 $0.42 $0.30
18 90117-SB2-000 90117-SB2-000 / NUT, SELF-LOCK (8MM)

2 $2.70 $1.94
19 90212-SA5-003 90212-SA5-003 / NUT, SELF-LOCK (10MM)

3 $0.58 $0.42
20 93405-06012-08 93405-06012-08 / BOLT-WASHER (6X12)

0 $0.93 $0.67
21 95701-08020-08 95701-08020-08 / BOLT, FLANGE (8X20)

2 $0.88 $0.64
