ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (1) for 1996 Honda CIVIC HATCHBACK

Select FUEL TANK (1) Part

1996 Honda CIVIC HATCHBACK

Change vehicle

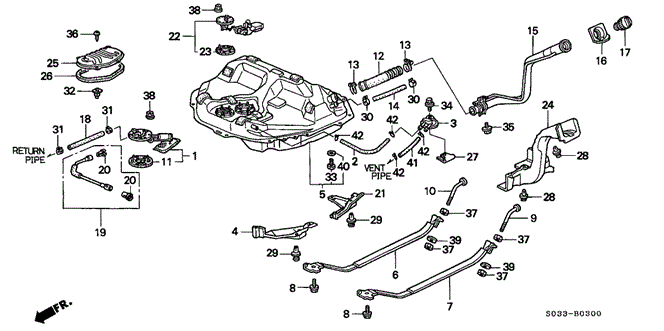

ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (1) for 1996 Honda CIVIC HATCHBACK #1
No. Part # Part # / Description List Price Price
1 17040-S01-A31 17040-S01-A31 / PUMP SET, FUEL

$383.97 $276.46
2 17351-S04-A00 17351-S04-A00 / TUBE A, FUEL VENT

$8.58 $6.18
3 17371-SR3-A01 17371-SR3-A01 / VALVE (TWO-WAY)

$58.95 $42.44
4 17372-SR3-010 17372-SR3-010 / COVER, VALVE (TWO-WAY)

- -
5 17500-S01-A30 17500-S01-A30 / TANK, FUEL

- -
6 17521-S01-000 17521-S01-000 / BAND ASSY., R. FUEL TANK MOUNTING

$38.08 $27.42
7 17522-SR3-000 17522-SR3-000 / BAND ASSY., L. FUEL TANK MOUNTING

$20.05 $14.44
8 17525-SM4-000 17525-SM4-000 / BOLT-WASHER (10X35)

$3.32 $2.39
9 17525-SR3-305 17525-SR3-305 / BOLT

$3.85 $2.77
9 17525-SR3-305 17525-SR3-305 / BOLT, FUEL TANK MOUNTING

$3.85 $2.77
10 17525-S04-A00 17525-S04-A00 / BOLT, R. FUEL TANK MOUNTING

$7.27 $5.23
11 17574-SE0-000 17574-SE0-000 / GASKET, BASE

$8.57 $6.17
12 17651-SR3-000 17651-SR3-000 / TUBE, FILLER NECK

$28.15 $20.27
13 17652-SA5-000 17652-SA5-000 / CLIP, FILLER TUBE

$7.12 $5.12
14 17653-SH5-305 17653-SH5-305 / TUBE, BREATHER

- -
15 06170-S04-A00 06170-S04-A00 / KIT, FUEL FILLER PIPE

$153.57 $110.57
16 17662-S04-003 17662-S04-003 / GASKET, FUEL FILLER (WITH CLIP)

$7.44 $5.36
17 17670-SM4-A04 17670-SM4-A04 / CAP, FUEL FILLER

$29.68 $21.37
17 17670-SM4-A04 17670-SM4-A04 / CAP, FUEL FILLER (TOYODA)

$29.68 $21.37
18 17704-SR3-930 17704-SR3-930 / HOSE, FUEL PIPE RETURN

$5.62 $4.04
19 17710-SR3-A31 17710-SR3-A31 / TUBE, FUEL JOINT (TOKAI)

$84.43 $60.79
20 17711-ST0-003 17711-ST0-003 / RETAINER (YELLOW) (TOKAI)

$8.23 $5.93
21 17733-SR3-010 17733-SR3-010 / PROTECTOR, FUEL FILLER PIPE

$10.83 $7.85
22 37800-S04-C01 37800-S04-C01 / METER UNIT, FUEL

$146.10 $105.19
23 37801-SV4-L01 37801-SV4-L01 / GASKET, BASE

$20.70 $14.90
24 74559-SR3-010 74559-SR3-010 / COVER, FUEL FILLER PIPE

$40.95 $29.48
25 74661-SR3-000 74661-SR3-000 / CAP, FLOOR MAINTENANCE HOLE

- -
26 74662-SR3-000 74662-SR3-000 / RUBBER, SEAL

$8.38 $6.04
27 90347-SR3-000 90347-SR3-000 / NUT, SPRING (6MM)

- -
28 90657-SA5-003 90657-SA5-003 / CLIP, SIDE APRON MOLDING

$0.77 $0.55
29 90657-SH3-013 90657-SH3-013 / CLIP, VALVE COVER (TWO-WAY)

$0.48 $0.35
30 90700-SB0-003 90700-SB0-003 / CLIP, AIR BLEED TUBE

$6.12 $4.40
31 91406-SL4-931 91406-SL4-931 / CLAMP, FUEL HOSE (D10.5)

$3.52 $2.53
32 91601-SH3-013 91601-SH3-013 / GROMMET, SCREW (5MM) (BLACK)

$3.12 $2.24
33 92800-12000 92800-12000 / BOLT, DRAIN PLUG (12MM)

$2.30 $1.66
34 93403-06020-08 93403-06020-08 / BOLT-WASHER (6X20)

$1.08 $0.78
35 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

$1.08 $0.78
36 93901-25220 93901-25220 / SCREW, TAPPING (5X12)

$0.58 $0.42
37 94001-08000-0S 94001-08000-0S / NUT, HEX. (8MM)

$0.63 $0.46
38 94050-06080 94050-06080 / NUT, FLANGE (6MM)

$0.27 $0.19
39 94101-08800 94101-08800 / WASHER, PLAIN (8MM)

$1.20 $0.86
40 94109-12000 94109-12000 / WASHER, DRAIN PLUG (12MM)

$0.64 $0.47
41 95001-55008-60M 95001-55008-60M / BULK HOSE, FUEL (5.5X8000)

$58.62 $42.20
42 95002-02104 95002-02104 / CLIP, TUBE (B10)

$1.18 $0.85
