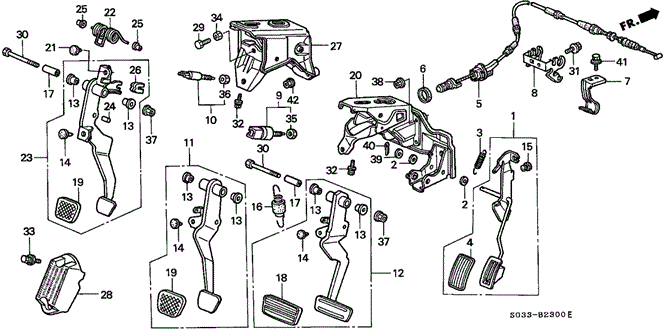

CHASSIS/PEDAL for 1996 Honda CIVIC HATCHBACK

Select PEDAL Part

1996 Honda CIVIC HATCHBACK

Change vehicle

No. Part # Part # / Description List Price Price
1 17800-S01-A10 17800-S01-A10 / PEDAL, ACCELERATOR

- -
2 17812-SA7-010 17812-SA7-010 / WASHER, ACCELERATOR PEDAL

$2.50 $2.10
3 17814-SD4-670 17814-SD4-670 / SPRING, ACCELERATOR PEDAL

$4.45 $3.74
4 17816-SK7-000 17816-SK7-000 / COVER, ACCELERATOR PEDAL

$10.55 $8.36
5 17910-S01-G03 17910-S01-G03 / WIRE, THROTTLE

$23.62 $18.14
6 17921-SA4-730 17921-SA4-730 / SEAL, THROTTLE CABLE

$6.65 $5.59
7 17924-S04-A00 17924-S04-A00 / CLAMP, THROTTLE WIRE

$8.33 $1.74
8 17932-S04-A00 17932-S04-A00 / CLAMP, THROTTLE WIRE

$16.97 $13.03
9 35350-S04-003 35350-S04-003 / SWITCH ASSY., STOP

$31.93 $24.52
10 35710-SE3-A01 35710-SE3-A01 / SWITCH ASSY., CLUTCH (INHIBITER)

$55.47 $40.60
11 46500-S04-A10 46500-S04-A10 / PEDAL, BRAKE

$67.35 $49.30
13 46504-ST5-300 46504-ST5-300 / BUSH, PEDAL

$3.82 $3.21
14 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

$2.67 $2.24
15 46505-SA7-000 46505-SA7-000 / PAD, PEDAL STOPPER

$5.00 $4.20
16 46530-SR3-000 46530-SR3-000 / SPRING ASSY., PEDAL RETURN

$7.02 $5.89
17 46535-SM4-000 46535-SM4-000 / COLLAR, PEDAL

$8.05 $6.76
19 46545-SH3-000 46545-SH3-000 / COVER, PEDAL

$11.10 $8.79
20 46590-S04-A10 46590-S04-A10 / BRACKET, PEDAL

$127.71 $91.96
21 46905-SK7-000 46905-SK7-000 / STOPPER, CLUTCH PEDAL

$8.45 $6.69
22 46907-SR3-010 46907-SR3-010 / SPRING, CLUTCH ASSISTANT

$8.37 $6.63
23 46910-SR3-J00 46910-SR3-J00 / PEDAL, CLUTCH

$75.02 $54.91
24 46911-SD4-930 46911-SD4-930 / BUSH, PEDAL PIN

$3.52 $2.95
25 46981-SR3-930 46981-SR3-930 / BUSH A, CLUTCH ASSISTANT

$4.93 $4.14
26 46982-SR3-930 46982-SR3-930 / BUSH B, CLUTCH ASSISTANT

$4.38 $3.68
27 46990-SR3-A00 46990-SR3-A00 / BRACKET, CLUTCH PEDAL

$109.92 $79.14
28 46991-SR3-010 46991-SR3-010 / BRACKET, FOOTREST

$25.58 $19.65
29 92101-10025-0H 92101-10025-0H / BOLT, HEX. (10X25)

$1.43 $1.20
30 92201-10070-0J 92201-10070-0J / BOLT, HEX. (10X70)

$2.02 $1.69
31 93402-06012-08 93402-06012-08 / BOLT-WASHER (6X12)

$1.05 $0.88
32 93404-08016-08 93404-08016-08 / BOLT-WASHER (8X16)

$1.25 $1.05
33 93405-06020-07 93405-06020-07 / BOLT-WASHER (6X20)

$1.20 $1.01
34 94002-10000-0S 94002-10000-0S / NUT, HEX. (10MM)

$1.67 $1.40
35 94002-10080-0S 94002-10080-0S / NUT, HEX. (10MM)

$0.97 $0.81
36 94002-12080-0S 94002-12080-0S / NUT, HEX. (12MM)

$0.92 $0.77
37 94050-10080 94050-10080 / NUT, FLANGE (10MM)

$1.25 $1.05
42 94070-08080 94070-08080 / NUT-WASHER (8MM)

$0.52 $0.43
39 94102-10800 94102-10800 / WASHER, PLAIN (10MM)

$1.33 $1.12
40 94201-25180 94201-25180 / PIN, SPLIT (2.5X18)

$1.45 $1.22
41 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

$1.17 $0.98
