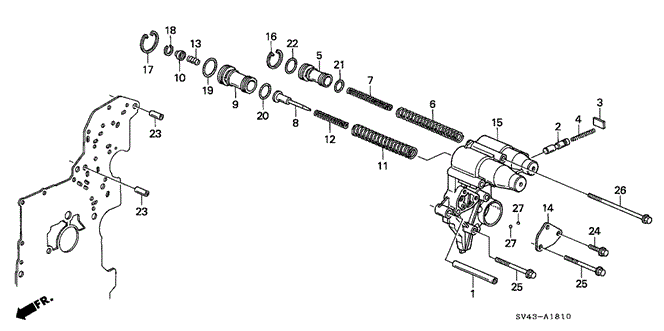

BODY, ACCUMULATOR in TRANSMISSION - AUTOMATIC/AT ACCUMULATOR BODY (V6) for 1995 Honda ACCORD SEDAN

BODY, ACCUMULATOR in TRANSMISSION - AUTOMATIC/AT ACCUMULATOR BODY (V6) for 1995 Honda ACCORD SEDAN #1
20
  • O-RING (25X2.4) (ARAI) - $2.02
  • O-RING (25X2.4) (NOK) - $2.02
27
  • BALL, STEEL (#7) (7/32) - $0.58
21
  • O-RING (21.2X2.4) (ARAI) - $1.61
20
  • O-RING (25X2.4) (ARAI) - $2.02
  • O-RING (25X2.4) (NOK) - $2.02
25
  • BOLT, FLANGE (6X45) - $0.86
5
  • PISTON, LOW ACCUMULATOR - $13.30
13
  • SPRING C, SECOND ACCUMULATOR - $3.07
4
  • SPRING, FOURTH EX. - $2.39
6
  • SPRING A, LOW ACCUMULATOR - $5.17
3
  • SEAT, VALVE SPRING - $1.97
24
  • BOLT, FLANGE (6X16) - $0.64
14
  • COVER, ACCUMULATOR BODY - $5.57
9
  • PISTON, SECOND ACCUMULATOR - $12.82
21
  • O-RING (21.2X2.4) (ARAI) - $1.61
8
  • GUIDE, ACCUMULATOR SPRING - $8.30
23
  • PIN, DOWEL (8X14) - $0.84
7
  • SPRING B, LOW ACCUMULATOR - $3.07
22
  • O-RING (29X2.4) (NOK) - $1.84
23
  • PIN, DOWEL (8X14) - $0.84
15
  • BODY, ACCUMULATOR - $95.88
22
  • O-RING (29X2.4) (NOK) - $1.84
27
  • BALL, STEEL (#7) (7/32) - $0.58
9
  • PISTON, SECOND ACCUMULATOR - $12.82
26
  • BOLT, FLANGE (6X75) - $0.94
13
  • SPRING C, SECOND ACCUMULATOR - $3.07
19
  • O-RING (35.2X2.4) (NOK) - $2.02
10
  • PISTON, SECOND SHORT - $6.14
8
  • GUIDE, ACCUMULATOR SPRING - $8.30
24
  • BOLT, FLANGE (6X16) - $0.64
17
  • CIRCLIP (INNER) (41) - $2.09
12
  • SPRING B, SECOND ACCUMULATOR - $3.07
2
  • VALVE, LUBRICATION CHECK - $10.34
7
  • SPRING B, LOW ACCUMULATOR - $3.07
25
  • BOLT, FLANGE (6X45) - $0.86
26
  • BOLT, FLANGE (6X75) - $0.94
15
  • BODY, ACCUMULATOR - $95.88
11
  • SPRING, SECOND ACCUMULATOR - $6.14
1
  • PIPE (10X60) - $2.66
5
  • PISTON, LOW ACCUMULATOR - $13.30
23
  • PIN, DOWEL (8X14) - $0.84
19
  • O-RING (35.2X2.4) (NOK) - $2.02
10
  • PISTON, SECOND SHORT - $6.14
16
  • CIRCLIP (INNER) (36MM) - $1.81
25
  • BOLT, FLANGE (6X45) - $0.86
11
  • SPRING, SECOND ACCUMULATOR - $6.14
12
  • SPRING B, SECOND ACCUMULATOR - $3.07
16
  • CIRCLIP (INNER) (36MM) - $1.81
18
  • CIRCLIP (INNER) (16) - $1.45
4
  • SPRING, FOURTH EX. - $2.39
1
  • PIPE (10X60) - $2.66
14
  • COVER, ACCUMULATOR BODY - $5.57
2
  • VALVE, LUBRICATION CHECK - $10.34
18
  • CIRCLIP (INNER) (16) - $1.45
27
  • BALL, STEEL (#7) (7/32) - $0.58
17
  • CIRCLIP (INNER) (41) - $2.09
3
  • SEAT, VALVE SPRING - $1.97
6
  • SPRING A, LOW ACCUMULATOR - $5.17
No. Part # Part # / Description Qty Req. List Price Price
1 22744-PY4-000 22744-PY4-000 / PIPE (10X60)

1 $3.70 $2.66
2 27242-P0Z-000 27242-P0Z-000 / VALVE, LUBRICATION CHECK

1 $14.37 $10.34
3 27263-PX3-000 27263-PX3-000 / SEAT, VALVE SPRING

1 $2.73 $1.97
4 27478-PP6-000 27478-PP6-000 / SPRING, FOURTH EX.

1 $3.32 $2.39
5 27561-P0Z-000 27561-P0Z-000 / PISTON, LOW ACCUMULATOR

1 $18.47 $13.30
6 27562-P0Z-010 27562-P0Z-010 / SPRING A, LOW ACCUMULATOR

1 $7.18 $5.17
7 27564-P0Z-010 27564-P0Z-010 / SPRING B, LOW ACCUMULATOR

1 $4.27 $3.07
8 27565-P0Z-000 27565-P0Z-000 / GUIDE, ACCUMULATOR SPRING

1 $11.53 $8.30
9 27572-P0Z-000 27572-P0Z-000 / PISTON, SECOND ACCUMULATOR

1 $17.80 $12.82
10 27579-P0Z-000 27579-P0Z-000 / PISTON, SECOND SHORT

1 $8.53 $6.14
11 27581-P0Z-010 27581-P0Z-010 / SPRING, SECOND ACCUMULATOR

1 $8.53 $6.14
12 27584-P0Z-010 27584-P0Z-010 / SPRING B, SECOND ACCUMULATOR

1 $4.27 $3.07
13 27585-P0Z-000 27585-P0Z-000 / SPRING C, SECOND ACCUMULATOR

1 $4.27 $3.07
14 27815-P0Z-000 27815-P0Z-000 / COVER, ACCUMULATOR BODY

1 $7.73 $5.57
15 27860-P0Z-000 27860-P0Z-000 / BODY, ACCUMULATOR

1 $133.17 $95.88
16 90606-PX4-000 90606-PX4-000 / CIRCLIP (INNER) (36MM)

1 $2.52 $1.81
17 90606-P0Z-000 90606-P0Z-000 / CIRCLIP (INNER) (41)

1 $2.90 $2.09
18 90608-P0Z-000 90608-P0Z-000 / CIRCLIP (INNER) (16)

1 $2.02 $1.45
19 91310-PA9-004 91310-PA9-004 / O-RING (35.2X2.4) (NOK)

1 $2.80 $2.02
20 91321-P0X-004 91321-P0X-004 / O-RING (25X2.4) (ARAI)

1 $2.80 $2.02
20 91321-P0X-003 91321-P0X-003 / O-RING (25X2.4) (NOK)

1 $2.80 $2.02
21 91331-PC9-003 91331-PC9-003 / O-RING (21.2X2.4) (ARAI)

1 $2.23 $1.61
22 91344-PC9-004 91344-PC9-004 / O-RING (29X2.4) (NOK)

1 $2.55 $1.84
23 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
24 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

2 $0.88 $0.64
25 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

3 $1.20 $0.86
26 95701-06075-08 95701-06075-08 / BOLT, FLANGE (6X75)

4 $1.30 $0.94
27 96211-07000 96211-07000 / BALL, STEEL (#7) (7/32)

2 $0.80 $0.58
