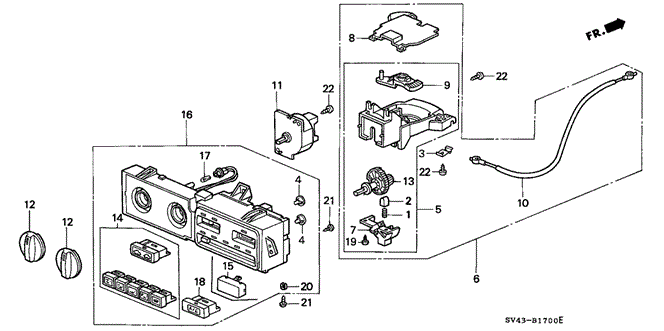

SWITCH ASSY., MODE CONTROL in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER CONTROL for 1995 Honda ACCORD SEDAN

SWITCH ASSY., MODE CONTROL in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER CONTROL for 1995 Honda ACCORD SEDAN #1
22
  • SCREW, TAPPING (4X12) - $1.97
11
  • SWITCH ASSY., FAN - $43.96
7
  • BASE, TEMPERATURE CONTROL (LOWER) - $4.09
6
  • CONTROL, TEMPERATURE - $36.56
  • CONTROL, TEMPERATURE - $48.37
7
  • BASE, TEMPERATURE CONTROL (LOWER) - $4.09
8
  • COVER, DUST - $7.42
10
  • CABLE, TEMPERATURE CONTROL - $3.55
  • CABLE, TEMPERATURE CONTROL - $4.48
16
  • SWITCH ASSY., MODE CONTROL - $139.55
16
  • SWITCH ASSY., MODE CONTROL - $139.55
13
  • SHAFT, TEMPERATURE CONTROL - $8.30
5
  • CONTROL, TEMPERATURE - $34.98
14
  • KNOB - $36.23
17
  • LAMP, WEDGE BASE - $3.31
20
  • GROMMET, SCREW (4MM) - $0.95
5
  • CONTROL, TEMPERATURE - $34.98
18
  • KNOB, AIR CONDITIONER SWITCH - $9.48
4
  • BULB, NEO-WEDGE (14V 100MA) - $3.31
4
  • BULB, NEO-WEDGE (14V 100MA) - $3.31
21
  • SCREW, TAPPING (4X12) - $0.40
6
  • CONTROL, TEMPERATURE - $36.56
  • CONTROL, TEMPERATURE - $48.37
18
  • KNOB, AIR CONDITIONER SWITCH - $9.48
21
  • SCREW, TAPPING (4X12) - $0.40
12
  • KNOB, HEATER CONTROL - $5.64
12
  • KNOB, HEATER CONTROL - $5.64
17
  • LAMP, WEDGE BASE - $3.31
12
  • KNOB, HEATER CONTROL - $5.64
14
  • KNOB - $36.23
2
  • PIN, CLICK - $1.98
  • PIN, CLICK
3
  • CLAMP, CONTROL CABLE - $3.82
1
  • SPRING, HEATER CONTROL - $1.85
4
  • BULB, NEO-WEDGE (14V 100MA) - $3.31
20
  • GROMMET, SCREW (4MM) - $0.95
22
  • SCREW, TAPPING (4X12) - $1.97
22
  • SCREW, TAPPING (4X12) - $1.97
11
  • SWITCH ASSY., FAN - $43.96
9
  • LEVER, TEMPERATURE CONTROL - $3.19
3
  • CLAMP, CONTROL CABLE - $3.82
22
  • SCREW, TAPPING (4X12) - $1.97
10
  • CABLE, TEMPERATURE CONTROL - $3.55
  • CABLE, TEMPERATURE CONTROL - $4.48
9
  • LEVER, TEMPERATURE CONTROL - $3.19
13
  • SHAFT, TEMPERATURE CONTROL - $8.30
19
  • SCREW, TAPPING (4X12) - $1.97
2
  • PIN, CLICK - $1.98
  • PIN, CLICK
1
  • SPRING, HEATER CONTROL - $1.85
19
  • SCREW, TAPPING (4X12) - $1.97
8
  • COVER, DUST - $7.42
21
  • SCREW, TAPPING (4X12) - $0.40
No. Part # Part # / Description Qty Req. List Price Price
N/A 79621-SV4-999 79621-SV4-999 / BOARD, HEATER CONTROL CIRCUIT

1 $46.98 $33.83
1 39356-SB6-000 39356-SB6-000 / SPRING, HEATER CONTROL

1 $2.57 $1.85
2 39379-SB6-000 39379-SB6-000 / PIN, CLICK

1 $2.75 $1.98
2 79537-SM4-A00 79537-SM4-A00 / PIN, CLICK

1 - -
3 39383-SA5-000 39383-SA5-000 / CLAMP, CONTROL CABLE

1 $5.30 $3.82
4 39397-SA5-003 39397-SA5-003 / BULB, NEO-WEDGE (14V 100MA)

2 $4.60 $3.31
5 79510-SM1-A10 79510-SM1-A10 / CONTROL, TEMPERATURE

1 $48.58 $34.98
6 79510-SV4-A00 79510-SV4-A00 / CONTROL, TEMPERATURE

1 $50.78 $36.56
6 79510-SV4-A01 79510-SV4-A01 / CONTROL, TEMPERATURE

1 $67.18 $48.37
7 79512-SM4-A00 79512-SM4-A00 / BASE, TEMPERATURE CONTROL (LOWER)

1 $5.68 $4.09
8 79513-SM4-A00 79513-SM4-A00 / COVER, DUST

1 $10.30 $7.42
9 79522-SM4-A00 79522-SM4-A00 / LEVER, TEMPERATURE CONTROL

1 $4.43 $3.19
10 79542-SV1-A11 79542-SV1-A11 / CABLE, TEMPERATURE CONTROL

1 $4.93 $3.55
10 79542-SV1-A13 79542-SV1-A13 / CABLE, TEMPERATURE CONTROL

1 $6.22 $4.48
11 79570-SM4-003 79570-SM4-003 / SWITCH ASSY., FAN

1 $61.05 $43.96
12 79581-SV4-A01 79581-SV4-A01 / KNOB, HEATER CONTROL

2 $7.83 $5.64
13 79595-SM4-A00 79595-SM4-A00 / SHAFT, TEMPERATURE CONTROL

1 $11.53 $8.30
14 79601-SV4-A01 79601-SV4-A01 / KNOB

1 $50.32 $36.23
16 79620-SV4-A01 79620-SV4-A01 / SWITCH ASSY., MODE CONTROL

1 $193.82 $139.55
17 79671-SV4-A01 79671-SV4-A01 / LAMP, WEDGE BASE

1 $4.60 $3.31
18 80411-SV4-A01 80411-SV4-A01 / KNOB, AIR CONDITIONER SWITCH

1 $13.17 $9.48
22 90107-SA5-000 90107-SA5-000 / SCREW, TAPPING (4X12)

5 $2.73 $1.97
20 90651-SM4-003 90651-SM4-003 / GROMMET, SCREW (4MM)

2 $1.32 $0.95
21 93903-44380 93903-44380 / SCREW, TAPPING (4X12)

3 $0.55 $0.40
