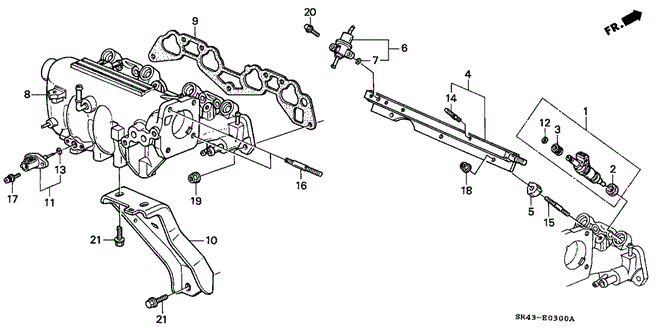

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD for 1993 Honda CIVIC SEDAN

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD for 1993 Honda CIVIC SEDAN #1
9
  • GASKET, IN. MANIFOLD (NIPPON LEAKLESS) - $14.03
15
  • BOLT, STUD (6X28) - $0.74
12
  • O-RING - $1.67
  • O-RING (7.3X2.2) (NOK) - $1.67
5
  • INSULATOR, FUEL PIPE - $1.01
16
  • BOLT, STUD (8X35) - $0.96
17
  • SCREW-WASHER (5X16) - $0.54
14
  • BOLT, STUD (6X18) - $0.70
19
  • NUT, FLANGE (8MM) - $0.18
3
  • CUSHION RING, INJECTOR (OTSUKA) - $2.60
21
  • BOLT, FLANGE (8X20) - $0.64
10
  • STAY, IN. MANIFOLD
18
  • NUT, FLANGE (6MM) - $0.17
2
  • SEAL RING, INJECTOR - $10.22
1
  • INJECTOR SET, FUEL - $132.76
  • INJECTOR SET, FUEL - $132.76
20
  • BOLT, FLANGE (6X14) - $0.64
13
  • O-RING (7.5X1.5) - $1.27
6
  • REGULATOR ASSY., PRESSURE - $87.16
11
  • SENSOR ASSY., AIR TEMPERATURE - $13.87
4
  • PIPE ASSY., FUEL - $148.81
7
  • O-RING, PRESSURE REGULATOR - $1.81
8
  • MANIFOLD, IN.
21
  • BOLT, FLANGE (8X20) - $0.64
No. Part # Part # / Description Qty Req. List Price Price
1 06164-P06-A02 06164-P06-A02 / INJECTOR SET, FUEL

4 $184.38 $132.76
1 06164-P06-A02 06164-P06-A02 / INJECTOR SET, FUEL

4 $184.38 $132.76
2 16472-P10-A01 16472-P10-A01 / SEAL RING, INJECTOR

4 $14.20 $10.22
3 16473-PD6-000 16473-PD6-000 / CUSHION RING, INJECTOR (OTSUKA)

4 $3.62 $2.60
4 16620-P28-A00 16620-P28-A00 / PIPE ASSY., FUEL

1 $206.68 $148.81
5 16638-PH3-S00 16638-PH3-S00 / INSULATOR, FUEL PIPE

3 $1.40 $1.01
6 16740-P05-A01 16740-P05-A01 / REGULATOR ASSY., PRESSURE

1 $121.05 $87.16
7 16741-PG7-005 16741-PG7-005 / O-RING, PRESSURE REGULATOR

1 $2.52 $1.81
8 17100-P28-A00 17100-P28-A00 / MANIFOLD, IN.

1 - -
9 17105-P08-004 17105-P08-004 / GASKET, IN. MANIFOLD (NIPPON LEAKLESS)

1 $19.48 $14.03
10 17132-P28-A00 17132-P28-A00 / STAY, IN. MANIFOLD

1 - -
11 37880-P05-A00 37880-P05-A00 / SENSOR ASSY., AIR TEMPERATURE

1 $19.27 $13.87
12 91301-P2F-A01 91301-P2F-A01 / O-RING

4 $2.32 $1.67
12 91301-P2F-A01 91301-P2F-A01 / O-RING (7.3X2.2) (NOK)

4 $2.32 $1.67
13 91303-PK2-005 91303-PK2-005 / O-RING (7.5X1.5)

1 $1.77 $1.27
14 92900-06018-1B 92900-06018-1B / BOLT, STUD (6X18)

2 $0.97 $0.70
15 92900-06028-0B 92900-06028-0B / BOLT, STUD (6X28)

3 $1.03 $0.74
16 92900-08035-1B 92900-08035-1B / BOLT, STUD (8X35)

4 $1.33 $0.96
17 93893-05016-08 93893-05016-08 / SCREW-WASHER (5X16)

2 $0.75 $0.54
18 94050-06080 94050-06080 / NUT, FLANGE (6MM)

3 $0.23 $0.17
19 94050-08080 94050-08080 / NUT, FLANGE (8MM)

7 $0.25 $0.18
20 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

2 $0.88 $0.64
21 95701-08020-08 95701-08020-08 / BOLT, FLANGE (8X20)

4 $0.88 $0.64
