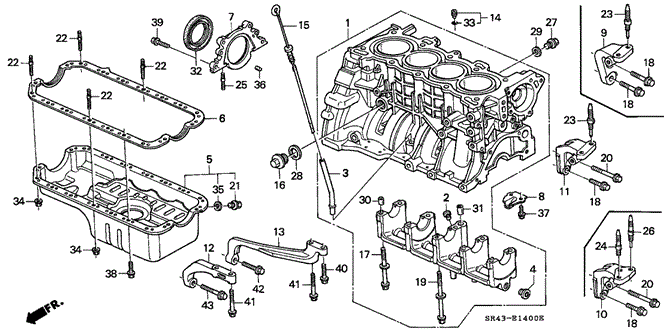

ENGINE/CYLINDER BLOCK - OIL PAN for 1993 Honda CIVIC SEDAN

Select CYLINDER BLOCK - OIL PAN Part

1993 Honda CIVIC SEDAN

Change vehicle

No. Part # Part # / Description List Price Price
1 11000-PM3-000 11000-PM3-000 / BLOCK ASSY., CYLINDER

- -
2 11106-PE0-300 11106-PE0-300 / BOLT, SEALING (14MM)

$3.10 $2.23
3 11111-PM3-300 11111-PM3-300 / PIPE, OIL LEVEL

$16.40 $11.81
4 11126-PK1-003 11126-PK1-003 / BOLT, SEALING (22MM)

$4.13 $2.98
5 11200-P08-020 11200-P08-020 / PAN, OIL

- -
6 11251-P01-004 11251-P01-004 / GASKET, OIL PAN (OTSUKA)

$32.73 $23.57
7 11301-P00-T00 11301-P00-T00 / COVER, R. SIDE

$48.75 $35.10
8 11311-PM3-000 11311-PM3-000 / COVER, BREATHING PORT

$4.77 $3.43
9 11910-P01-000 11910-P01-000 / BRACKET, ENGINE MOUNTING

- -
14 15140-PM3-000 15140-PM3-000 / ORIFICE ASSY., OIL PASSAGE

$9.12 $6.56
15 15650-P03-000 15650-P03-000 / DIPSTICK, OIL

$19.27 $13.87
16 90001-PM3-003 90001-PM3-003 / BOLT, DRAIN PLUG (28MM)

$13.52 $9.73
19 90008-PM0-003 90008-PM0-003 / BOLT-WASHER (10X112)

$11.72 $8.44
18 90008-PM3-000 90008-PM3-000 / BOLT, MOUNTING BRACKET (10X32.5)

$4.93 $3.55
21 90009-PH1-000 90009-PH1-000 / BOLT, DRAIN PLUG (14MM)

$1.87 $1.34
22 90041-PA5-000 90041-PA5-000 / BOLT, STUD (6X28)

$2.77 $1.99
25 90042-PR3-000 90042-PR3-000 / BOLT, STUD (6X28)

$4.00 $2.88
23 90041-P01-000 90041-P01-000 / BOLT, STUD (12X40)

$5.95 $4.28
27 90084-657-000 90084-657-000 / BOLT, SEALING (16X9.5)

$6.78 $4.88
28 90401-PR4-000 90401-PR4-000 / WASHER, SEALING (28MM)

$3.41 $2.46
29 90443-PA5-000 90443-PA5-000 / WASHER, SEALING (16MM)

$4.61 $3.32
30 90702-PE0-000 90702-PE0-000 / PIN, DOWEL (12X18)

$3.50 $2.52
31 90703-PE0-000 90703-PE0-000 / PIN, DOWEL (18X22)

$6.38 $4.60
32 91214-PLE-003 91214-PLE-003 / OIL SEAL (80X100X10) (NOK)

$20.50 $14.76
32 91214-PLE-003 91214-PLE-003 / OIL SEAL (80X100X10) (ARAI)

$20.50 $14.76
33 91312-107-000 91312-107-000 / O-RING (7X1.7)

$2.17 $1.56
34 94050-06080 94050-06080 / NUT, FLANGE (6MM)

$0.27 $0.19
35 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

$0.42 $0.34
36 94303-05080 94303-05080 / PIN, DOWEL (5X8)

$1.22 $0.88
37 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

$0.95 $0.68
38 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

$0.95 $0.68
39 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

$1.05 $0.76
