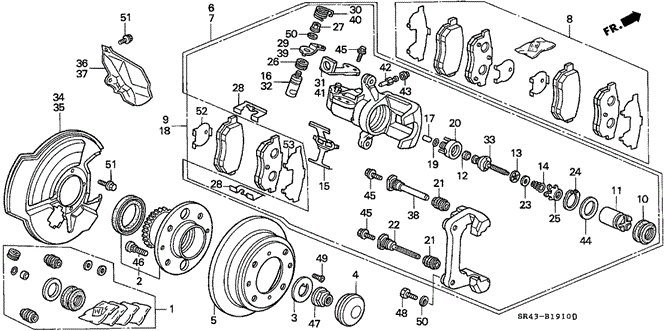

CALIPER ASSY., L. RR. in CHASSIS/REAR BRAKE (DISK) for 1993 Honda CIVIC SEDAN

CALIPER ASSY., L. RR. in CHASSIS/REAR BRAKE (DISK) for 1993 Honda CIVIC SEDAN #1
21
  • COVER, DUST - $2.12
34
  • SPLASH GUARD, R. RR. (ABS) - $29.89
39
  • LEVER, L. - $5.86
24
  • RING, RETAINING - $4.56
45
  • BOLT, FLANGE (8X22) - $3.92
51
  • BOLT, FLANGE (6X12) - $0.72
46
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
48
  • BOLT, HEX. (10X28) - $0.92
42
  • SCREW, BLEEDER - $3.90
43
  • CAP, BLEEDER SCREW - $2.36
27
  • NUT, PARKING - $4.19
45
  • BOLT, FLANGE (8X22) - $3.92
53
  • SHIM, PAD (OUTER) - $4.56
9
  • CALIPER ASSY., R. RR.
21
  • COVER, DUST - $2.12
32
  • SHAFT B - $12.94
30
  • SPRING, R. RETURN - $4.34
49
  • SCREW, FLAT (6X14) - $0.43
26
  • COVER, SHAFT - $4.63
10
  • COVER, PISTON DUST - $5.42
11
  • PISTON ASSY. - $47.36
18
  • CALIPER ASSY., L. RR.
16
  • SHAFT A - $12.94
3
  • WASHER, HUB UNIT - $8.87
4
  • CAP, HUB UNIT - $4.01
29
  • LEVER, R. - $5.86
33
  • BOLT, ADJUSTER - $9.28
20
  • PISTON, SLEEVE - $14.04
36
  • PROTECTOR, R. RR. CALIPER - $10.15
52
  • SHIM, PAD (INNER) - $5.10
23
  • SPACER - $3.14
  • SPACER - $3.14
37
  • PROTECTOR, L. RR. CALIPER - $11.08
47
  • NUT, SPINDLE (22MM) - $1.86
38
  • PIN B - $2.62
19
  • O-RING - $1.52
50
  • WASHER, SPRING (10MM) - $0.46
28
  • RETAINER - $5.52
31
  • ARM, R. - $9.00
50
  • WASHER, SPRING (10MM) - $0.46
2
  • BEARING ASSY., HUB UNIT (ABS) (NTN) - $184.09
41
  • ARM, L. - $9.00
8
  • PAD SET, RR. - $40.13
45
  • BOLT, FLANGE (8X22) - $3.92
12
  • CUP - $2.74
17
  • ROD - $3.26
44
  • SEAL, PISTON - $3.84
22
  • PIN A - $8.16
35
  • SPLASH GUARD, L. RR. (ABS) - $29.89
28
  • RETAINER - $5.52
51
  • BOLT, FLANGE (6X12) - $0.72
15
  • SPRING, PAD - $6.91
14
  • SPRING B, ADJUSTING - $3.12
5
  • DISK, RR. BRAKE - $69.53
40
  • SPRING, L. RETURN - $4.34
25
  • GUIDE, SPRING - $4.46
13
  • BEARING A - $6.44
No. Part # Part # / Description Qty Req. List Price Price
2 42200-SR3-A53 42200-SR3-A53 / BEARING ASSY., HUB UNIT (ABS) (NTN)

2 $255.68 $184.09
3 42324-SB2-020 42324-SB2-020 / WASHER, HUB UNIT

2 $12.32 $8.87
4 42326-SFA-000 42326-SFA-000 / CAP, HUB UNIT

2 $5.57 $4.01
5 42510-SR3-000 42510-SR3-000 / DISK, RR. BRAKE

2 $96.57 $69.53
8 43022-SR3-506 43022-SR3-506 / PAD SET, RR.

1 $55.73 $40.13
9 43210-SR3-023 43210-SR3-023 / CALIPER ASSY., R. RR.

1 - -
10 43214-SD2-931 43214-SD2-931 / COVER, PISTON DUST

2 $7.53 $5.42
11 43215-SH3-931 43215-SH3-931 / PISTON ASSY.

2 $65.78 $47.36
12 43218-SD2-931 43218-SD2-931 / CUP

2 $3.80 $2.74
13 43223-SD2-932 43223-SD2-932 / BEARING A

2 $8.95 $6.44
14 43224-SD2-931 43224-SD2-931 / SPRING B, ADJUSTING

2 $4.33 $3.12
15 43227-SF1-003 43227-SF1-003 / SPRING, PAD

2 $9.60 $6.91
16 43228-SD2-933 43228-SD2-933 / SHAFT A

1 $17.97 $12.94
17 43229-SD2-931 43229-SD2-931 / ROD

2 $4.53 $3.26
18 43230-SR3-023 43230-SR3-023 / CALIPER ASSY., L. RR.

1 - -
19 43232-SD2-931 43232-SD2-931 / O-RING

2 $2.12 $1.52
20 43233-S04-003 43233-S04-003 / PISTON, SLEEVE

2 $19.50 $14.04
21 43234-SD2-931 43234-SD2-931 / COVER, DUST

4 $2.95 $2.12
22 43235-SD2-931 43235-SD2-931 / PIN A

2 $11.33 $8.16
23 43236-S04-003 43236-S04-003 / SPACER

2 $4.37 $3.14
23 43236-S04-003 43236-S04-003 / SPACER

2 $4.37 $3.14
24 43238-SD2-931 43238-SD2-931 / RING, RETAINING

2 $6.33 $4.56
25 43241-SD2-931 43241-SD2-931 / GUIDE, SPRING

2 $6.20 $4.46
26 43242-SD2-933 43242-SD2-933 / COVER, SHAFT

2 $6.43 $4.63
27 43243-SD2-931 43243-SD2-931 / NUT, PARKING

2 $5.82 $4.19
28 43244-SD2-931 43244-SD2-931 / RETAINER

4 $7.67 $5.52
29 43245-SH3-931 43245-SH3-931 / LEVER, R.

1 $8.13 $5.86
30 43246-SD2-931 43246-SD2-931 / SPRING, R. RETURN

1 $6.03 $4.34
31 43247-SH3-931 43247-SH3-931 / ARM, R.

1 $12.50 $9.00
32 43248-SD2-933 43248-SD2-933 / SHAFT B

1 $17.97 $12.94
33 43249-S04-003 43249-S04-003 / BOLT, ADJUSTER

2 $12.88 $9.28
34 43253-SK7-950 43253-SK7-950 / SPLASH GUARD, R. RR. (ABS)

1 $41.52 $29.89
35 43254-SK7-950 43254-SK7-950 / SPLASH GUARD, L. RR. (ABS)

1 $41.52 $29.89
36 43255-SR3-932 43255-SR3-932 / PROTECTOR, R. RR. CALIPER

1 $14.10 $10.15
37 43256-SR3-932 43256-SR3-932 / PROTECTOR, L. RR. CALIPER

1 $15.38 $11.08
38 43262-SD2-931 43262-SD2-931 / PIN B

2 $3.63 $2.62
39 43265-SH3-931 43265-SH3-931 / LEVER, L.

1 $8.13 $5.86
40 43266-SD2-931 43266-SD2-931 / SPRING, L. RETURN

1 $6.03 $4.34
41 43267-SH3-931 43267-SH3-931 / ARM, L.

1 $12.50 $9.00
42 43352-SM4-951 43352-SM4-951 / SCREW, BLEEDER

2 $5.42 $3.90
43 43353-SD5-003 43353-SD5-003 / CAP, BLEEDER SCREW

2 $3.28 $2.36
44 45209-166-006 45209-166-006 / SEAL, PISTON

2 $5.33 $3.84
45 45240-SC2-003 45240-SC2-003 / BOLT, FLANGE (8X22)

8 $5.45 $3.92
46 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.32
47 90305-692-010 90305-692-010 / NUT, SPINDLE (22MM)

2 $2.58 $1.86
48 92201-10028-0H 92201-10028-0H / BOLT, HEX. (10X28)

4 $1.28 $0.92
49 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
50 94111-10800 94111-10800 / WASHER, SPRING (10MM)

6 $0.63 $0.46
51 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

12 $1.00 $0.72
52 43225-SF1-003 43225-SF1-003 / SHIM, PAD (INNER)

2 $7.08 $5.10
53 43227-SD2-305 43227-SD2-305 / SHIM, PAD (OUTER)

2 $6.33 $4.56
