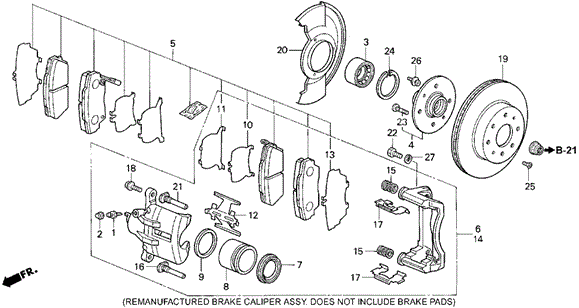

CALIPER ASSY., L. (17CL-14VN) (NISSIN) in CHASSIS/FRONT BRAKE (2) for 1993 Honda CIVIC SEDAN

CALIPER ASSY., L. (17CL-14VN) (NISSIN) in CHASSIS/FRONT BRAKE (2) for 1993 Honda CIVIC SEDAN #1
17
  • RETAINER - $5.52
7
  • BOOT, PISTON - $10.60
9
  • SEAL, PISTON - $16.50
26
  • SCREW-WASHER (5X12) - $0.49
13
  • SHIM, BRAKE PAD - $5.35
16
  • PIN A - $8.10
5
  • PAD SET, FR. (17CL-14VN) - $43.73
23
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
25
  • SCREW, FLAT (6X14) - $0.43
20
  • SPLASH GUARD, FR. BRAKE - $26.18
8
  • PISTON
27
  • WASHER, SPRING (10MM) - $0.46
17
  • RETAINER - $5.52
15
  • BOOT, PIN - $5.60
21
  • PIN B - $8.03
6
  • CALIPER ASSY., R. (17CL-14VN) (NISSIN)
12
  • SPRING, PAD - $6.73
1
  • SCREW, BLEEDER - $3.90
19
  • DISK, FR. BRAKE - $57.65
18
  • BOLT, FLANGE (8X22) - $4.06
14
  • CALIPER ASSY., L. (17CL-14VN) (NISSIN) - $406.75
24
  • CIRCLIP, SPECIAL (INNER) (79MM) - $7.55
2
  • CAP, BLEEDER SCREW - $2.36
22
  • BOLT, CALIPER MOUNTING (12X21) - $0.66
15
  • BOOT, PIN - $5.60
4
  • HUB ASSY., FR. - $142.39
3
  • BEARING, FR. HUBR. HUB (NTN) - $89.45
  • BEARING ASSY., FR. HUB (KOYO SEIKO) - $89.45
No. Part # Part # / Description Qty Req. List Price Price
1 43352-SM4-951 43352-SM4-951 / SCREW, BLEEDER

2 $5.42 $3.90
2 43353-SD5-003 43353-SD5-003 / CAP, BLEEDER SCREW

2 $3.28 $2.36
3 44300-S5A-008 44300-S5A-008 / BEARING, FR. HUBR. HUB (NTN)

2 $124.23 $89.45
3 44300-S5A-008 44300-S5A-008 / BEARING ASSY., FR. HUB (KOYO SEIKO)

2 $124.23 $89.45
4 44600-S04-A00 44600-S04-A00 / HUB ASSY., FR.

2 $197.77 $142.39
5 45022-SR3-507 45022-SR3-507 / PAD SET, FR. (17CL-14VN)

1 $60.73 $43.73
6 45210-SR3-N33 45210-SR3-N33 / CALIPER ASSY., R. (17CL-14VN) (NISSIN)

1 - -
7 45214-SD4-003 45214-SD4-003 / BOOT, PISTON

2 $14.72 $10.60
8 45216-SG0-003 45216-SG0-003 / PISTON

2 - -
9 45217-SD4-003 45217-SD4-003 / SEAL, PISTON

2 $22.92 $16.50
12 45227-SG0-013 45227-SG0-013 / SPRING, PAD

2 $9.35 $6.73
13 45228-SD4-003 45228-SD4-003 / SHIM, BRAKE PAD

2 $7.43 $5.35
14 45230-SR3-N33 45230-SR3-N33 / CALIPER ASSY., L. (17CL-14VN) (NISSIN)

1 $564.93 $406.75
15 45234-SD4-003 45234-SD4-003 / BOOT, PIN

4 $7.78 $5.60
16 45235-SR3-N31 45235-SR3-N31 / PIN A

2 $11.25 $8.10
17 45237-SD4-003 45237-SD4-003 / RETAINER

4 $7.67 $5.52
18 45240-SA7-003 45240-SA7-003 / BOLT, FLANGE (8X22)

4 $5.63 $4.06
19 45251-SK7-J00 45251-SK7-J00 / DISK, FR. BRAKE

2 $80.07 $57.65
20 45255-SK7-020 45255-SK7-020 / SPLASH GUARD, FR. BRAKE

2 $36.37 $26.18
21 45262-SR3-N31 45262-SR3-N31 / PIN B

2 $11.15 $8.03
22 90107-SM4-000 90107-SM4-000 / BOLT, CALIPER MOUNTING (12X21)

4 $0.92 $0.66
23 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.32
24 90681-SR3-A00 90681-SR3-A00 / CIRCLIP, SPECIAL (INNER) (79MM)

2 $10.48 $7.55
25 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
26 93892-05012-08 93892-05012-08 / SCREW-WASHER (5X12)

6 $0.68 $0.49
27 94111-10800 94111-10800 / WASHER, SPRING (10MM)

4 $0.63 $0.46
