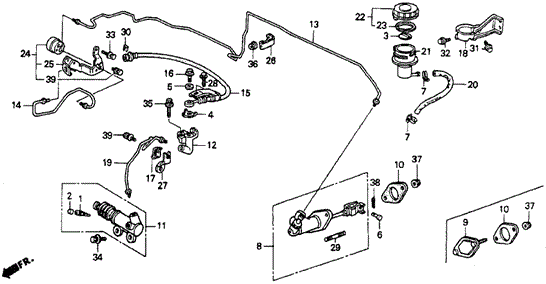

PIPE ASSY. A, CLUTCH in CHASSIS/CLUTCH MASTER CYLINDER for 1993 Honda ACCORD COUPE

PIPE ASSY. A, CLUTCH in CHASSIS/CLUTCH MASTER CYLINDER for 1993 Honda ACCORD COUPE #1
28
  • BOLT, FLANGE (6X30) - $3.20
4
  • GASKET, OIL BOLT - $4.27
8
  • MASTER CYLINDER ASSY., CLUTCH - $101.34
30
  • CLIP, BRAKE HOSE - $3.30
2
  • CAP, BLEEDER SCREW - $2.09
22
  • CAP, RESERVE TANK - $15.60
24
  • DAMPER ASSY., CLUTCH
34
  • BOLT-WASHER (8X25) - $0.91
3
  • FLOAT - $3.96
25
  • BRACKET, CLUTCH PIPE
18
  • HOLDER, TANK - $6.67
31
  • BOLT-WASHER (6X12) - $0.67
32
  • BOLT-WASHER (6X16) - $0.73
37
  • NUT-WASHER (8MM) - $0.31
39
  • BOLT, FLANGE (6X12) - $0.72
5
  • GASKET, OIL BOLT - $2.27
39
  • BOLT, FLANGE (6X12) - $0.72
1
  • SCREW, BLEEDER - $4.25
17
  • CLAMP, CLUTCH PIPE - $5.54
10
  • SEAL, CLUTCH MASTER CYLINDER - $3.91
35
  • BOLT-WASHER (8X32) - $0.85
15
  • HOSE, CLUTCH
6
  • PIN, CLUTCH PEDAL - $3.89
27
  • BRACKET, CLUTCH PIPE - $4.90
7
  • CLIP A13, TUBE - $3.19
7
  • CLIP A13, TUBE - $3.19
14
  • PIPE ASSY. B, CLUTCH - $8.75
38
  • PIN, SPLIT (2.0X35) - $0.54
11
  • CYLINDER ASSY., SLAVE - $61.54
33
  • BOLT-WASHER (8X16) - $0.82
19
  • PIPE, CLUTCH - $9.05
16
  • BOLT, CLUTCH OIL - $4.67
26
  • CLAMP, CLUTCH PIPE - $4.69
10
  • SEAL, CLUTCH MASTER CYLINDER - $3.91
23
  • SEAL, RESERVE TANK - $3.31
37
  • NUT-WASHER (8MM) - $0.31
36
  • NUT-WASHER (6MM) - $0.59
12
  • JOINT, CLUTCH HOSE - $16.00
21
  • TANK, CLUTCH FLUID - $9.66
20
  • TUBE, CLUTCH FLUID
13
  • PIPE ASSY. A, CLUTCH - $119.11
29
  • BOLT, STUD (8X35)
No. Part # Part # / Description Qty Req. List Price Price
1 43352-567-000 43352-567-000 / SCREW, BLEEDER

1 $5.90 $4.25
2 43353-548-003 43353-548-003 / CAP, BLEEDER SCREW

1 $2.90 $2.09
3 46164-632-000 46164-632-000 / FLOAT

1 $5.50 $3.96
4 46472-SM4-000 46472-SM4-000 / GASKET, OIL BOLT

1 $5.93 $4.27
5 46472-568-000 46472-568-000 / GASKET, OIL BOLT

1 $3.15 $2.27
6 46912-SD4-000 46912-SD4-000 / PIN, CLUTCH PEDAL

1 $5.40 $3.89
7 46918-SM4-020 46918-SM4-020 / CLIP A13, TUBE

2 $4.43 $3.19
8 46920-SM4-A03 46920-SM4-A03 / MASTER CYLINDER ASSY., CLUTCH

1 $140.75 $101.34
10 46928-SF1-000 46928-SF1-000 / SEAL, CLUTCH MASTER CYLINDER

1 $5.43 $3.91
11 46930-SM4-003 46930-SM4-003 / CYLINDER ASSY., SLAVE

1 $85.47 $61.54
12 46939-SM4-010 46939-SM4-010 / JOINT, CLUTCH HOSE

1 $22.22 $16.00
13 46960-SM1-A00 46960-SM1-A00 / PIPE ASSY. A, CLUTCH

1 $165.43 $119.11
14 46960-SM4-913 46960-SM4-913 / PIPE ASSY. B, CLUTCH

1 $12.15 $8.75
15 46961-SM4-910 46961-SM4-910 / HOSE, CLUTCH

1 - -
16 46963-SD4-020 46963-SD4-020 / BOLT, CLUTCH OIL

1 $6.48 $4.67
17 46964-SM4-020 46964-SM4-020 / CLAMP, CLUTCH PIPE

1 $7.70 $5.54
18 46966-SM4-A01 46966-SM4-A01 / HOLDER, TANK

1 $9.27 $6.67
19 46970-SM4-020 46970-SM4-020 / PIPE, CLUTCH

1 $12.57 $9.05
20 46971-SM4-A01 46971-SM4-A01 / TUBE, CLUTCH FLUID

1 - -
21 46972-SD4-003 46972-SD4-003 / TANK, CLUTCH FLUID

1 $13.42 $9.66
22 46973-SD4-003 46973-SD4-003 / CAP, RESERVE TANK

1 $21.67 $15.60
23 46975-SD4-003 46975-SD4-003 / SEAL, RESERVE TANK

1 $4.60 $3.31
24 46993-SM4-952 46993-SM4-952 / DAMPER ASSY., CLUTCH

1 - -
25 46995-SM4-951 46995-SM4-951 / BRACKET, CLUTCH PIPE

1 - -
26 46997-SM4-A00 46997-SM4-A00 / CLAMP, CLUTCH PIPE

1 $6.52 $4.69
27 46999-SM4-010 46999-SM4-010 / BRACKET, CLUTCH PIPE

1 $6.80 $4.90
28 90180-SM4-003 90180-SM4-003 / BOLT, FLANGE (6X30)

1 $4.45 $3.20
29 90190-SD4-300 90190-SD4-300 / BOLT, STUD (8X35)

2 - -
30 90651-538-000 90651-538-000 / CLIP, BRAKE HOSE

1 $4.58 $3.30
31 93403-06012-08 93403-06012-08 / BOLT-WASHER (6X12)

1 $0.93 $0.67
32 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

2 $1.02 $0.73
33 93403-08016-08 93403-08016-08 / BOLT-WASHER (8X16)

3 $1.13 $0.82
34 93403-08025-08 93403-08025-08 / BOLT-WASHER (8X25)

2 $1.27 $0.91
35 93403-08032-08 93403-08032-08 / BOLT-WASHER (8X32)

1 $1.18 $0.85
36 94070-06080 94070-06080 / NUT-WASHER (6MM)

1 $0.82 $0.59
37 94070-08080 94070-08080 / NUT-WASHER (8MM)

2 $0.43 $0.31
38 94201-20350 94201-20350 / PIN, SPLIT (2.0X35)

1 $0.75 $0.54
39 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

3 $1.00 $0.72
