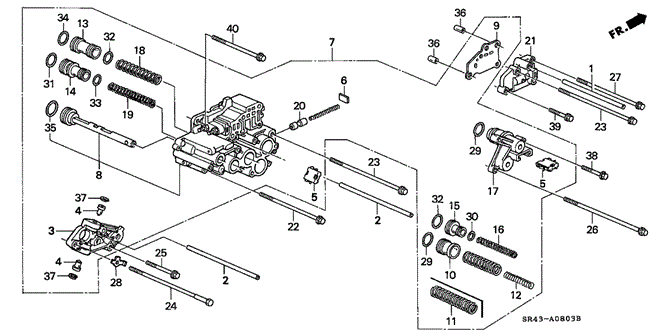

BODY SUB-ASSY., SERVO in TRANSMISSION - AUTOMATIC/AT SERVO BODY for 1992 Honda CIVIC SEDAN

BODY SUB-ASSY., SERVO in TRANSMISSION - AUTOMATIC/AT SERVO BODY for 1992 Honda CIVIC SEDAN #1
3
  • BASE, SERVO DETENT - $16.00
32
  • O-RING (26X2.4) (NOK) - $1.74
20
  • VALVE, TIMING (3-2) - $10.00
8
  • BODY SUB-ASSY., SERVO
5
  • MAGNET, TRANSMISSION - $5.50
39
  • BOLT, FLANGE (6X35) - $0.74
15
  • PISTON, TOP ACCUMULATOR - $12.82
37
  • CIRCLIP (INNER) (15MM) - $0.49
17
  • COVER, TOP ACCUMULATOR - $26.66
24
  • BOLT, HEX. (6X157) - $5.56
23
  • BOLT, FLANGE (6X133) - $4.63
37
  • CIRCLIP (INNER) (15MM) - $0.49
26
  • BOLT, FLANGE (6X157) - $6.71
9
  • PLATE, THROTTLE SEPARATING - $3.23
28
  • WASHER, LOCK (6MM) - $1.00
36
  • PIN, DOWEL (8X14) - $0.84
19
  • SPRING, THIRD ACCUMULATOR - $6.30
  • SPRING, THIRD ACCUMULATOR - $5.98
16
  • SPRING, TOP ACCUMULATOR - $5.28
7
  • BODY ASSY., SERVO - $107.74
30
  • O-RING (18.3X2.4) (NOK) - $1.50
27
  • BOLT, FLANGE (6X110) - $3.67
38
  • BOLT, FLANGE (6X28) - $0.86
22
  • BOLT, FLANGE (6X93) - $3.43
5
  • MAGNET, TRANSMISSION - $5.50
4
  • SLEEVE, SERVO DETENT - $5.81
6
  • SEAT, VALVE SPRING (1.0MM) - $2.54
34
  • O-RING (29X2.4) (NOK) - $1.84
4
  • SLEEVE, SERVO DETENT - $5.81
29
  • O-RING (26.9X2.4) (NOK) - $1.51
10
  • PISTON, LOW ACCUMULATOR (L 25.9)
31
  • O-RING (28.3X2.4) (NOK) - $1.70
2
  • PIPE, THIRD CLUTCH - $8.42
23
  • BOLT, FLANGE (6X133) - $4.63
13
  • PISTON, SECOND ACCUMULATOR - $12.82
11
  • SPRING, LOW ACCUMULATOR - $6.08
33
  • O-RING (21.2X2.4) (ARAI) - $1.61
2
  • PIPE, THIRD CLUTCH - $8.42
1
  • PIPE, LOW CLUTCH - $6.72
40
  • BOLT, FLANGE (6X75) - $0.94
32
  • O-RING (26X2.4) (NOK) - $1.74
21
  • BODY ASSY., MODULATOR - $43.76
29
  • O-RING (26.9X2.4) (NOK) - $1.51
14
  • PISTON, THIRD ACCUMULATOR - $12.82
18
  • SPRING, SECOND ACCUMULATOR - $7.33
35
  • O-RING (31X2.7) (ARAI) - $1.94
36
  • PIN, DOWEL (8X14) - $0.84
25
  • BOLT, FLANGE (6X35) - $1.82
No. Part # Part # / Description Qty Req. List Price Price
1 22741-PN1-000 22741-PN1-000 / PIPE, LOW CLUTCH

1 $9.33 $6.72
2 22743-PF0-000 22743-PF0-000 / PIPE, THIRD CLUTCH

2 $11.70 $8.42
3 24278-P24-J00 24278-P24-J00 / BASE, SERVO DETENT

1 $22.22 $16.00
4 24530-PN1-000 24530-PN1-000 / SLEEVE, SERVO DETENT

2 $8.07 $5.81
5 25422-PN6-801 25422-PN6-801 / MAGNET, TRANSMISSION

2 $7.63 $5.50
6 27263-PA9-000 27263-PA9-000 / SEAT, VALVE SPRING (1.0MM)

1 $3.53 $2.54
7 27400-P24-A01 27400-P24-A01 / BODY ASSY., SERVO

1 $149.63 $107.74
8 27405-P24-A00 27405-P24-A00 / BODY SUB-ASSY., SERVO

1 - -
9 27414-P24-J00 27414-P24-J00 / PLATE, THROTTLE SEPARATING

1 $4.48 $3.23
10 27561-PF0-000 27561-PF0-000 / PISTON, LOW ACCUMULATOR (L 25.9)

1 - -
11 27564-P24-J00 27564-P24-J00 / SPRING, LOW ACCUMULATOR

1 $8.45 $6.08
13 27572-P24-J00 27572-P24-J00 / PISTON, SECOND ACCUMULATOR

1 $17.80 $12.82
14 27574-PX4-010 27574-PX4-010 / PISTON, THIRD ACCUMULATOR

1 $17.80 $12.82
15 27576-PX3-010 27576-PX3-010 / PISTON, TOP ACCUMULATOR

1 $17.80 $12.82
16 27577-P24-J01 27577-P24-J01 / SPRING, TOP ACCUMULATOR

1 $7.33 $5.28
17 27578-P24-J00 27578-P24-J00 / COVER, TOP ACCUMULATOR

1 $37.03 $26.66
18 27581-P24-J00 27581-P24-J00 / SPRING, SECOND ACCUMULATOR

1 $10.18 $7.33
19 27583-P24-J01 27583-P24-J01 / SPRING, THIRD ACCUMULATOR

1 $8.75 $6.30
19 27583-P24-J00 27583-P24-J00 / SPRING, THIRD ACCUMULATOR

1 $8.30 $5.98
20 27735-P24-J00 27735-P24-J00 / VALVE, TIMING (3-2)

1 $13.88 $10.00
21 27800-P24-A00 27800-P24-A00 / BODY ASSY., MODULATOR

1 $62.30 $43.76
22 90001-PL5-000 90001-PL5-000 / BOLT, FLANGE (6X93)

2 $4.77 $3.43
23 90001-PP6-000 90001-PP6-000 / BOLT, FLANGE (6X133)

2 $6.43 $4.63
24 90001-PX4-000 90001-PX4-000 / BOLT, HEX. (6X157)

2 $7.72 $5.56
25 90001-P24-J00 90001-P24-J00 / BOLT, FLANGE (6X35)

1 $2.53 $1.82
26 90003-PL5-Z00 90003-PL5-Z00 / BOLT, FLANGE (6X157)

2 $9.32 $6.71
27 90003-PL5-000 90003-PL5-000 / BOLT, FLANGE (6X110)

1 $5.10 $3.67
28 90433-PX4-000 90433-PX4-000 / WASHER, LOCK (6MM)

2 $1.38 $1.00
29 91302-PF0-003 91302-PF0-003 / O-RING (26.9X2.4) (NOK)

2 $2.10 $1.51
30 91321-PF4-004 91321-PF4-004 / O-RING (18.3X2.4) (NOK)

1 $2.08 $1.50
31 91324-PF4-004 91324-PF4-004 / O-RING (28.3X2.4) (NOK)

1 $2.37 $1.70
32 91326-PL5-003 91326-PL5-003 / O-RING (26X2.4) (NOK)

2 $2.42 $1.74
33 91331-PC9-003 91331-PC9-003 / O-RING (21.2X2.4) (ARAI)

1 $2.23 $1.61
34 91344-PC9-004 91344-PC9-004 / O-RING (29X2.4) (NOK)

1 $2.55 $1.84
35 91344-580-000 91344-580-000 / O-RING (31X2.7) (ARAI)

1 $2.70 $1.94
36 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
37 94521-15000 94521-15000 / CIRCLIP (INNER) (15MM)

2 $0.68 $0.49
38 95701-06028-08 95701-06028-08 / BOLT, FLANGE (6X28)

1 $1.20 $0.86
39 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

2 $1.03 $0.74
40 95701-06075-08 95701-06075-08 / BOLT, FLANGE (6X75)

1 $1.30 $0.94
